Stage 64 Expansion Options
Each Stage 64 I/O Rack has a maximum I/O capacity of:
• 64 analog and/or digital input channels (up to 8x 8-channel Input cards, maximum)
• 32 analog and/or digital output channels (up to 4x 8-channel Output cards, maximum)

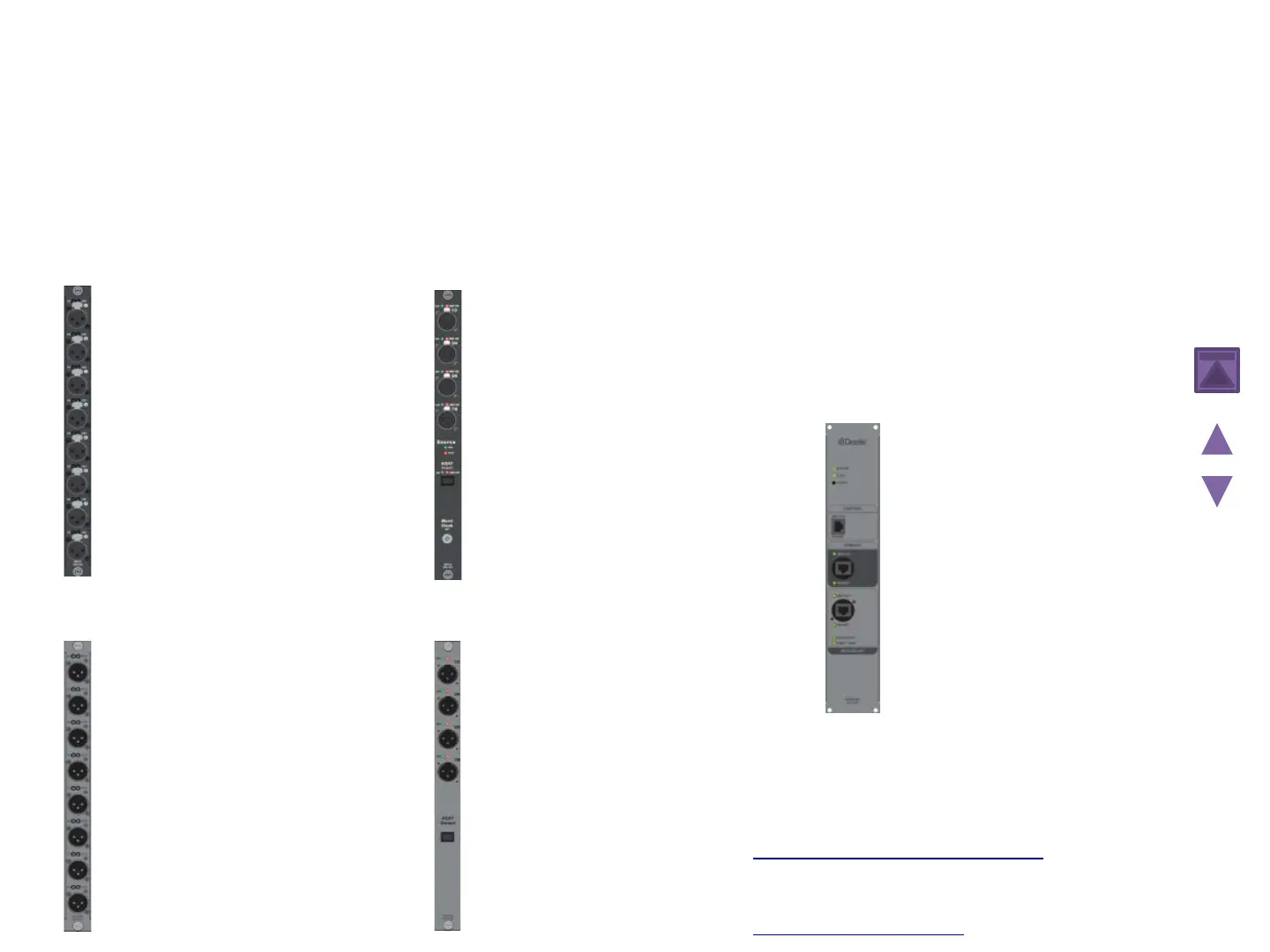

SRI-192 Analog Input Cards
• Eight channels of analog
mic/line inputs via XLR-3 female
connectors
• +48V phantom power, 20 dB
pad, and phase reverse (all
selectable per channel via the
control surface and VENUE
software)
• Signal and phantom power LEDs
for each channel
• 24-bit A/D conversion, up to
192 kHz sample rate
DSI-192 Digital Input Cards
• Eight channels of digital inputs via
four two-channel AES/EBU XLR3-
female connectors or a single ADAT
TOSLINK optical connector
• Automatic sample rate conversion
(SRC) and detection on input;
manually defeatable for lowest
possible input latency
• SRC and Lock status LEDs for both AES
and ADAT connections
• Word clock output for synchronizing
external digital devices
SRO-192 Analog Output Cards
• Eight channels of analog line
outputs via male XLR-3 connectors
• Automatic muting for system
protection
• Signal and Mute LEDs for each
channel
• 24-bit D/A conversion
DSO-192 Digital Output Cards
• Eight channels of digital outputs via
four two-channel AES/EBU XLR3-
male connectors and/or a single
ADAT TOSLINK optical connector
• Simultaneous output to both
AES/EBU outputs and ADAT optical
output
• Automatic muting for system
protection
• Signal and Mute LEDs for
each AES/EBU channel pair
DNT-192 Network Cards
• Sixteen channels of digital
input or output, or eight input
and eight output channels, for
connecting to Dante network
devices.
• The DNT-192 Network Card
supports SRC (sample rate
conversion) between the S6L
and the Dante network
sample rate
For more information on S6L Option cards, visit:
Avid VENUE | S6L System Options
For S6L documentation, including expansion I/O cards:
Avid S6L Documentation
