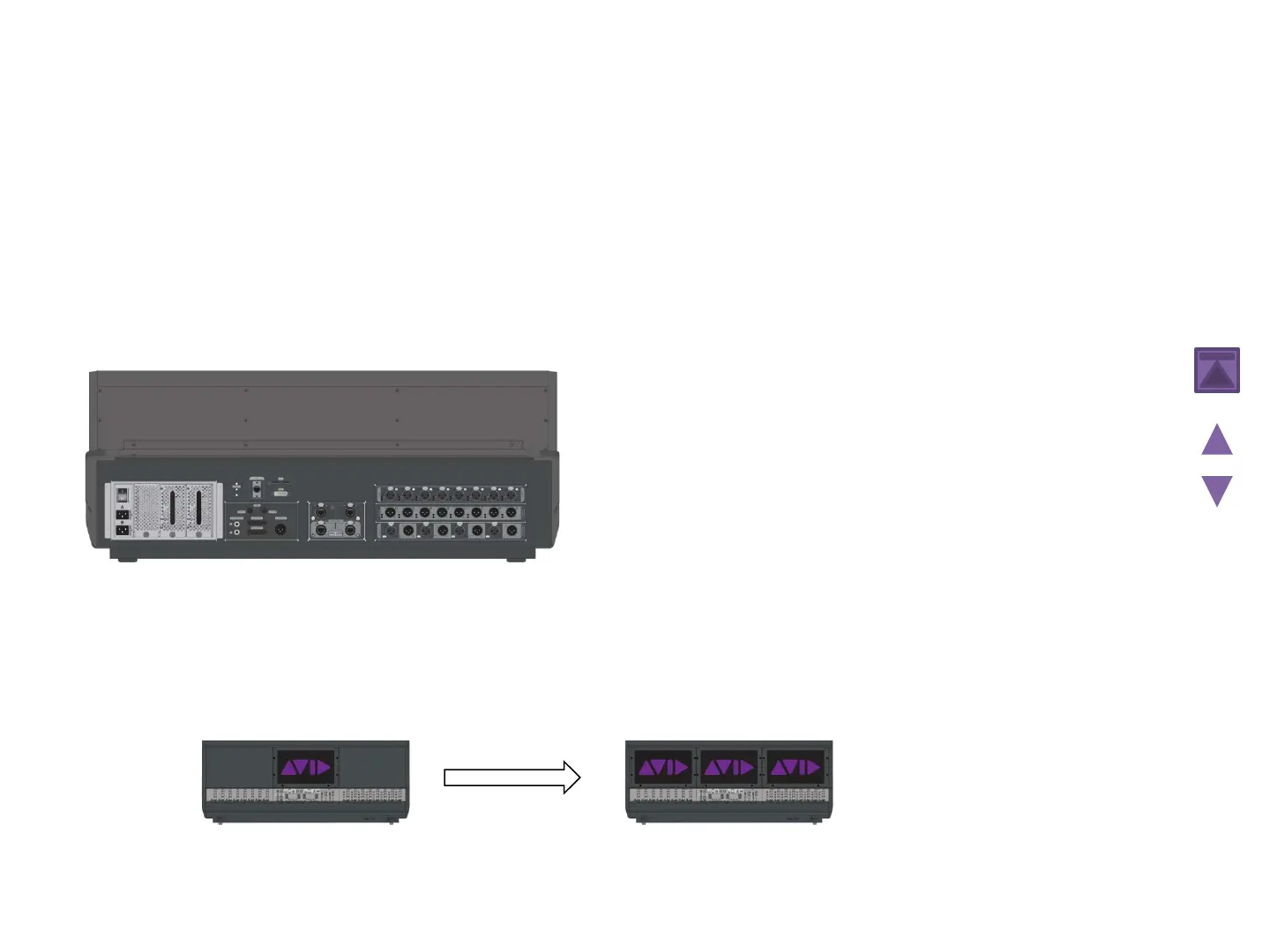

S6L Control Surface
All S6L control surfaces (S6L-32D, S6L-24D, and S6L-24) provide the following local I/O:
8 XLR analog mic/line inputs with 48V and signal present LEDs
8 XLR analog outputs with mute and signal present LEDs
4 pairs of XLR stereo AES/EBU digital inputs (8 channels total)
4 pairs of XLR stereo AES/EBU digital outputs (8 channels total)
2 independent 1/4-inch TRS stereo headphone jacks
For descriptions and diagrams of supported configurations see the VENUE S6L Installation Guide.pdf.
S6L Control Surface Expansion Options
S6L-24 control surfaces can be upgraded to 24-D by installing Channel Touch Modules (CTMs).
S6L-32D and S6L-24D control surfaces include CTMs from the factory.
