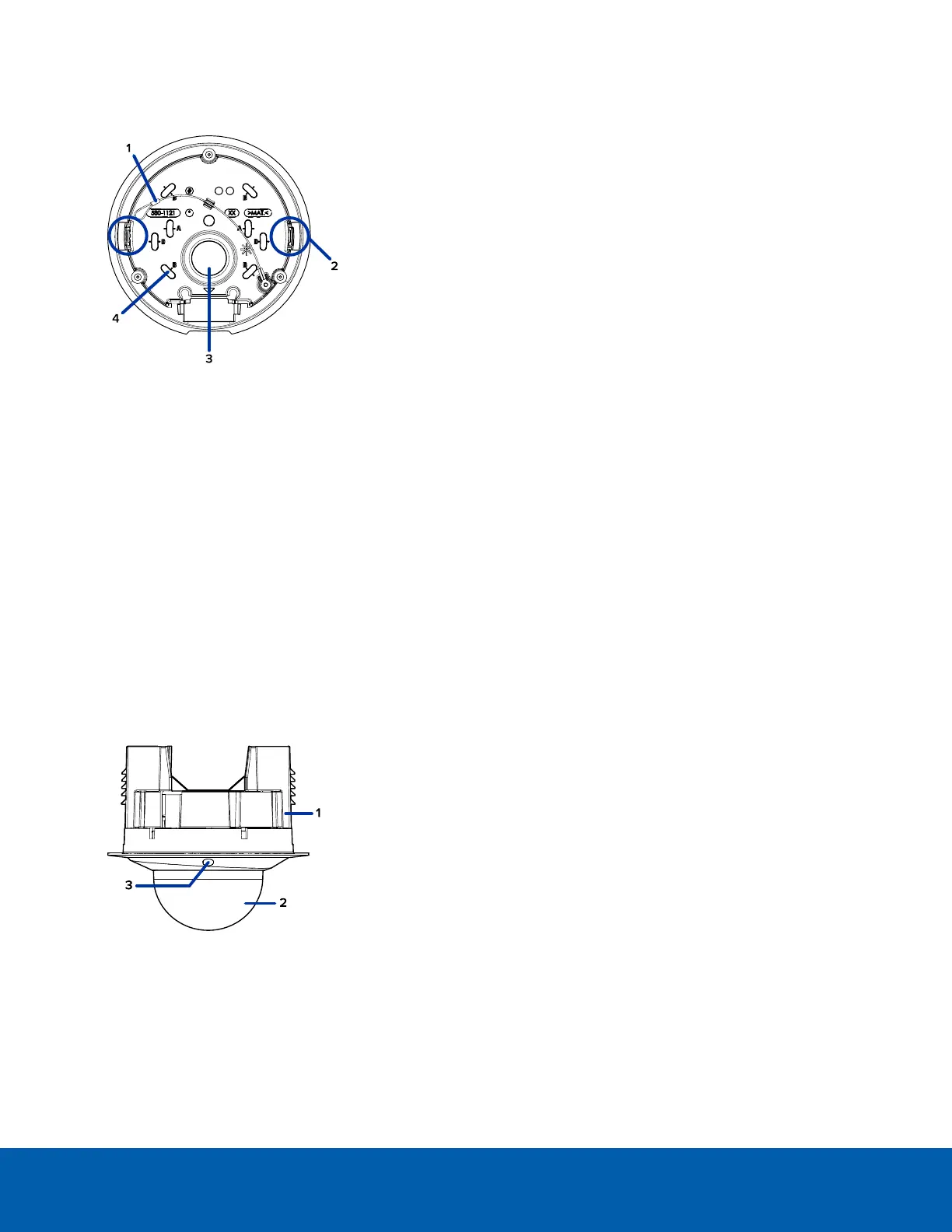

Mounting Adapter View, Surface Mount
1.
Lanyard
Connects to the lanyard anchor on the camera base.
2.
Camera housing clips
Snaps to hold camera module during installation.
3.
Cable entry hole
An entry hole for the cables required for camera operation.
4.
Mounting holes
Holes for mounting the adapter to the following:
A — UK standard single gang box
B — Octagon gang box
D — US standard single gang box
(Optional) Cover View, In-Ceiling Mount
1.
In-ceiling mount adapter
Used to mount the dome camera to a wall, ceiling or electrical box.
2.
Dome cover
Mounting Adapter View, Surface Mount 11
