Mounting the Dome Camera Using the Bottom Cable Entry 19
l
In-ceiling mounting adapter (SLSPCIL-1001). For more information, see In-Ceiling Mount Installation on
page24.
l
Pendant NPT mounting adapter (H6SL-MT-NPTA1). For more information, see Pendant Mount Installation on
page29.

o
Pendant wall mounting adapter (CM-MT-WALL1) — must be used with NPT mounting adapter.
Mounting the Dome Camera Using the Bottom Cable Entry
Perform the following steps if the required cables will be coming from inside the mounting surface and the camera
will be mounted immediately over the cable hole. Use this procedure on surfaces that can be easily drilled into, and
when the cables should be kept out of sight.
Perform the following steps to mount the dome camera to a ceiling or wall:
1. Use the mounting template to drill four mounting holes into the mounting surface and drill the cable entry
hole.
2. Pull the required cables through the cable entry hole.
3. Drive four screws to fasten the mounting adapter to the ceiling or wall.

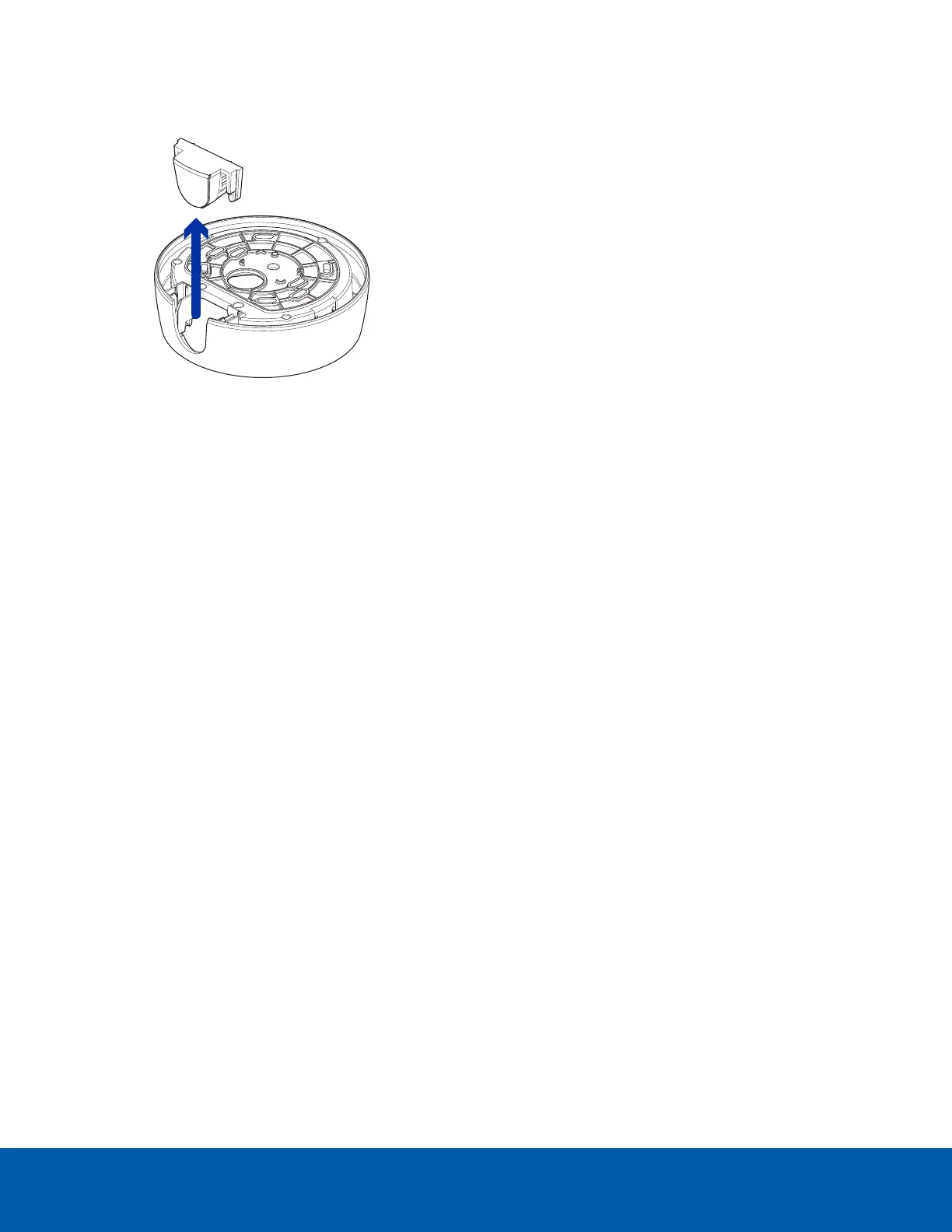

Mounting the Dome Camera Using the Side Cable Entry
Perform the following steps if you will be mounting to a surface with the required cables coming out of an external
conduit pipe. Use this procedure if the mounting surface cannot be easily cut, or when cables must be brought along
the outside of the mounting surface.
1. Use the mounting template to drill four mounting holes into the mounting surface.
Make sure the mounting template is aligned to where the conduit will enter the mounting adapter.
2. Pull the required cables through the conduit.
