Installing the Camera Base to the Mounting Adapter 22
1. Pull the required cables through the cable entry hole.

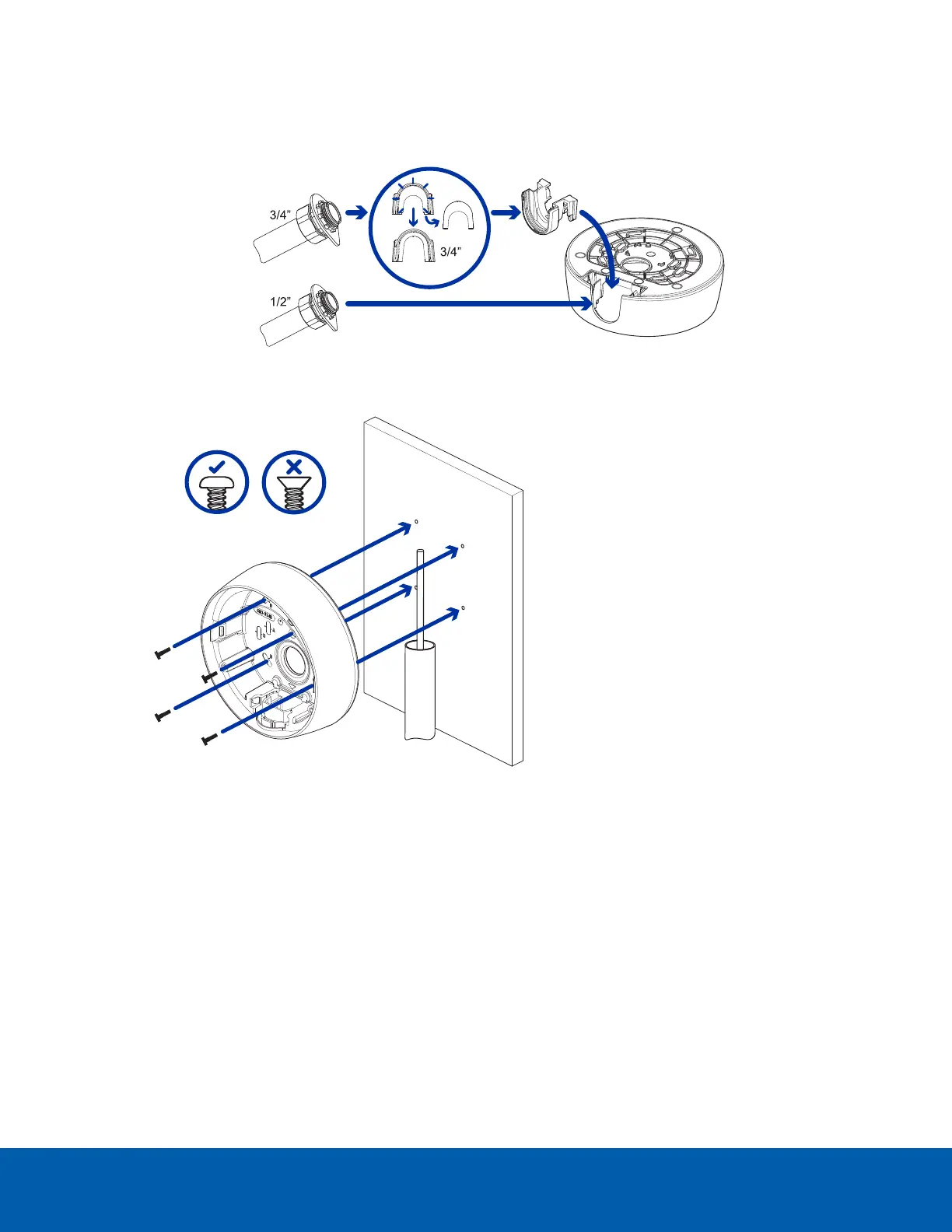

2. Use pan head screws to install the mounting adapter to the electrical box.
Select the hole configuration that matches the electrical box shape:
A — UK standard single gang box
B — Octagon gang box
D — US standard single gang box
Installing the Camera Base to the Mounting Adapter
After you install the mounting adapter, mount the camera base to the adapter.
1. Attach the lanyard on the mounting adapter to the anchor on the camera base.
2. Pull the Ethernet cable through the cable entry hole on the camera base.
3. Push the Ethernet cable through the provided cable entry grommet.
Always use the provided cable entry grommet to prevent dust and debris from entering the camera.
