Installing the Camera Base to the Mounting Adapter 23
4. Crimp the Ethernet cable. Ensure that the orientation of the cable and grommet matches the one shown in the
image.
5. Install the grommet into the cable entry hole on the camera base.
Make sure the grommet is securely seated on the inside and outside of the cable entry hole. Apply silicone
sealant to seal any gaps in the grommet.
6. Connect the network cable to the camera's Ethernet port.
The Link LED will turn on once a network link has been established.

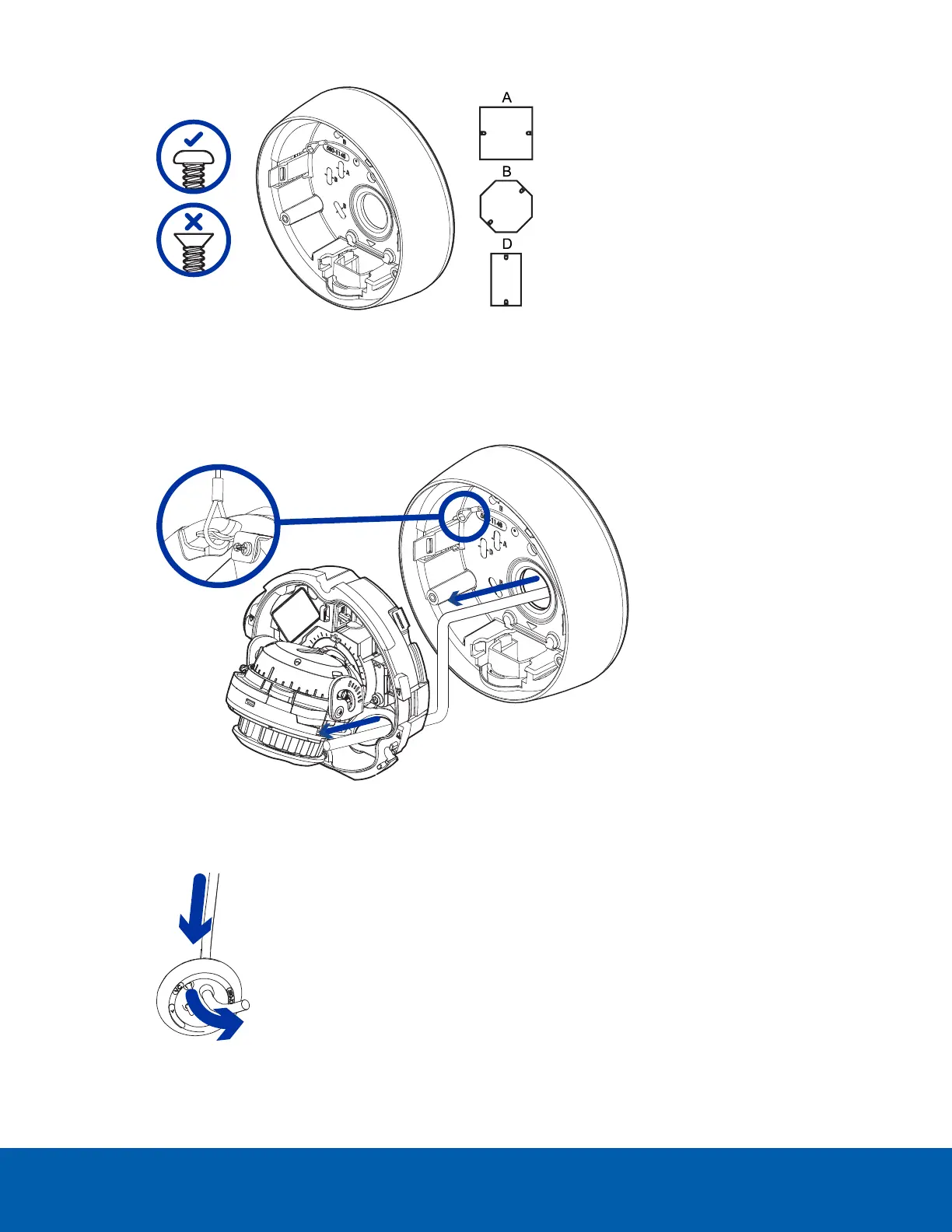

7. Align the arrow on the camera base to the side cable entry hole on the mounting adapter then press the
camera base into the mounting adapter. The camera base clicks into place and is held securely.
