Avigilon 8.0C-H6SL-DO1-IR - Overview; Camera Base Front View

Overview 9
Overview

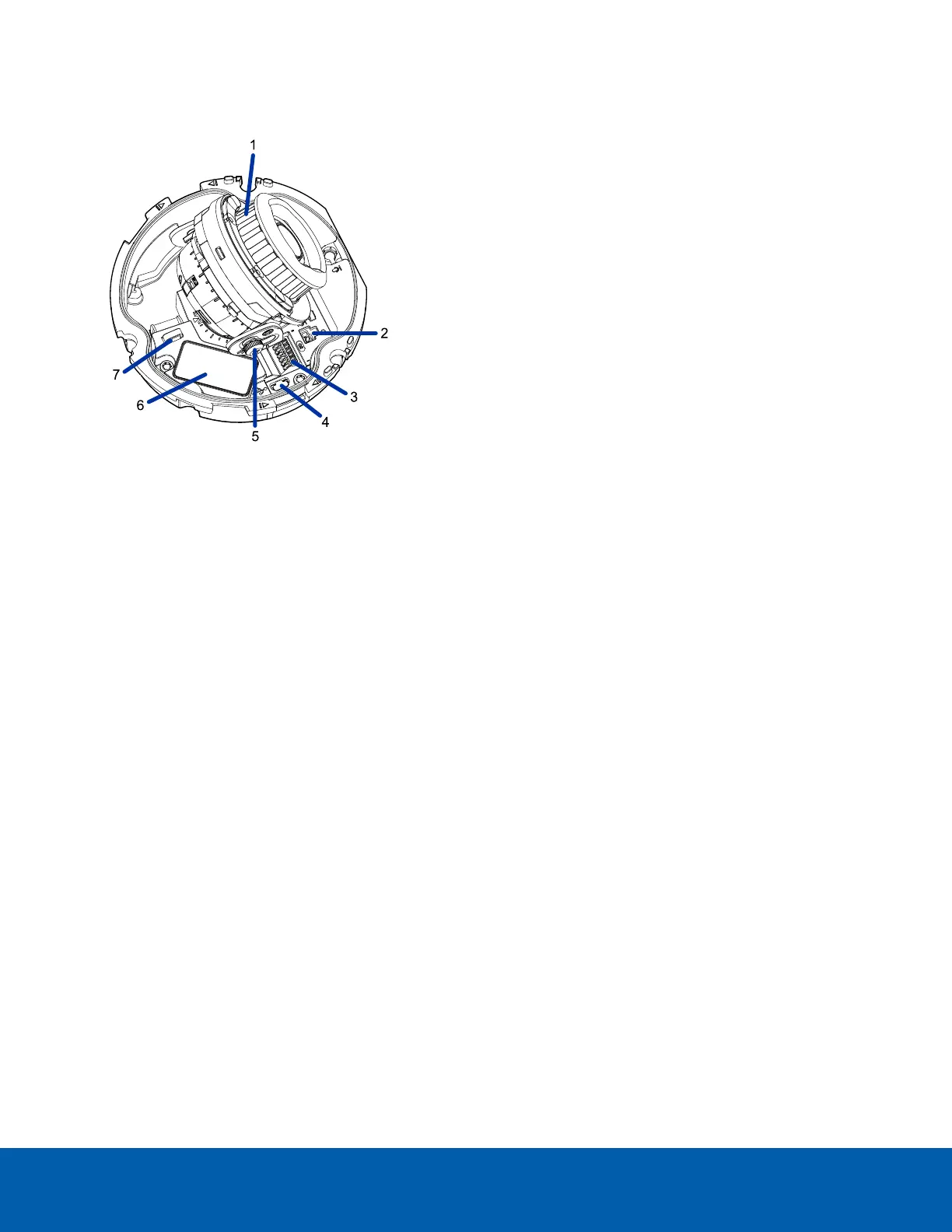

Camera Base Front View
1.
IRIlluminator
Provides scene illumination in the IRspectrum.
Only available on IR models.
2.
Ethernet port
Accepts power and Ethernet connection to the network. Server communication and image data transmission
also occur over this connection.
3.
Link LED indicator
Amber LED indicates if there is an active connection in the Ethernet port.
4.
Connection status LED indicator
Green LED provides information about device operation. For more information, see
Connection Status LED
Indicator on page46.
5.
microSD card slot
Accepts a microSD card for onboard storage. For more information, see
(Optional) Configuring microSD Card
Storage on page40.
