Avigilon H4 Installation Guides

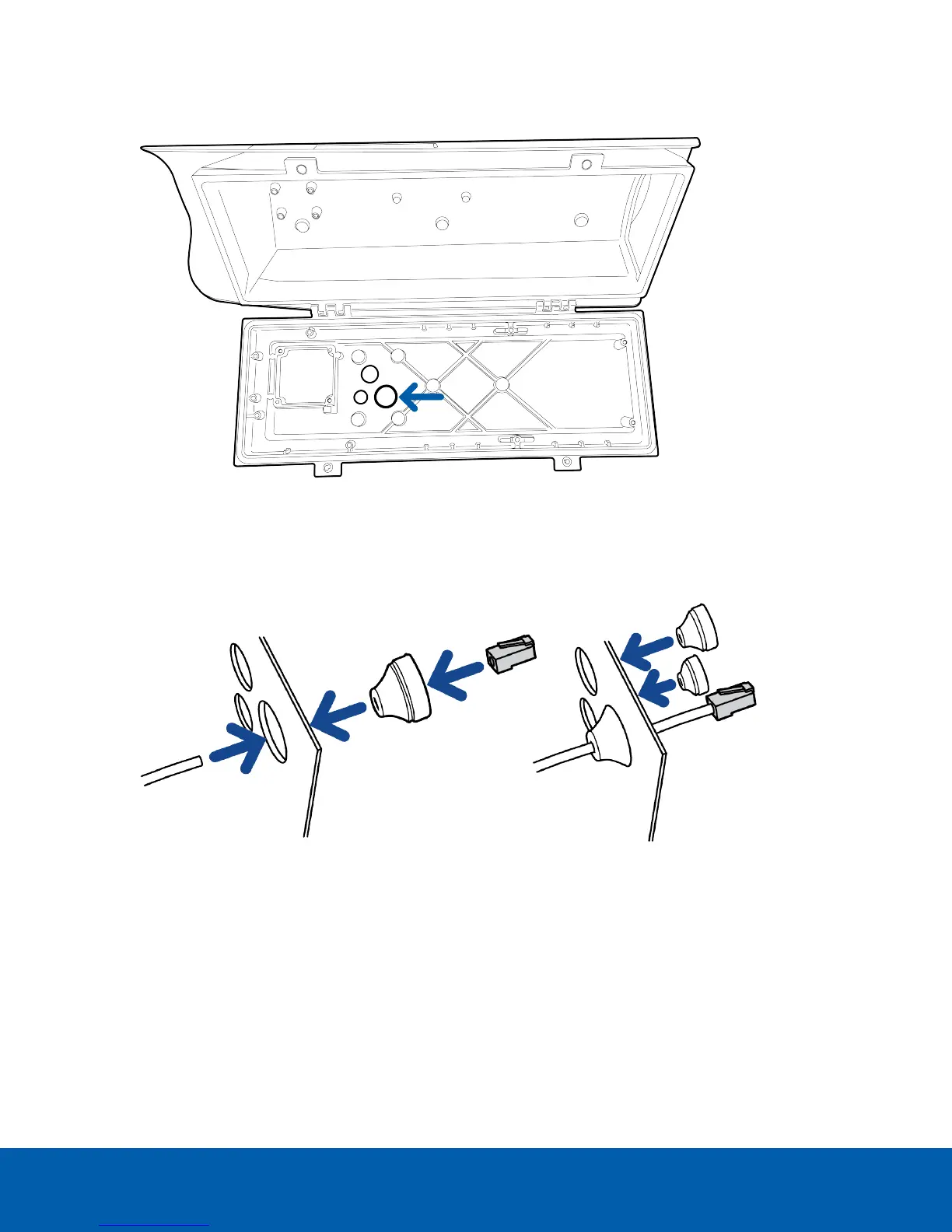

1. Pull the required PoE cable from the Power Injector. The PoE cable will be routed through the largest
cable opening on the bottom of the enclosure.
2. Use the sealing ring to seal the cable connection through the enclosure. Ensure that the unused holes on
the bottom of the housing are sealed with the remaining sealing rings to prevent water from entering the
housing.
NOTE: You will need to crimp the PoE cable to pull the wire through the sealing ring.
Connecting the Cables 15

Avigilon H4 Specifications

General

Sensor Type	CMOS
Impact Protection	IK10
Camera Type	Dome
Day/Night	Yes
Video Compression	H.264
Wide Dynamic Range (WDR)	120dB
Power	PoE (IEEE 802.3af)
Operating Temperature	-40 °C to +50 °C (-40 °F to +122 °F) depending on the model
Ingress Protection	IP66
Onvif Compliance	Yes
IP Rating	IP66
Power Supply	12VDC or PoE
