Avigilon H4 Installation Guides

Mounting the Optional ES-HD-MNT-PAR Parapet Mounting Adapter
Complete the following steps to mount the enclosure using the optional ES-HD-MNT-PAR mounting adapter.
Installing the IR Illuminator
1. Refer to the H4 LPC Site Design Guide to determine if the IR illuminator's lens needs to be changed or
removed. Please consult the IR illuminator manual for instructions on replacing the lens, if required.

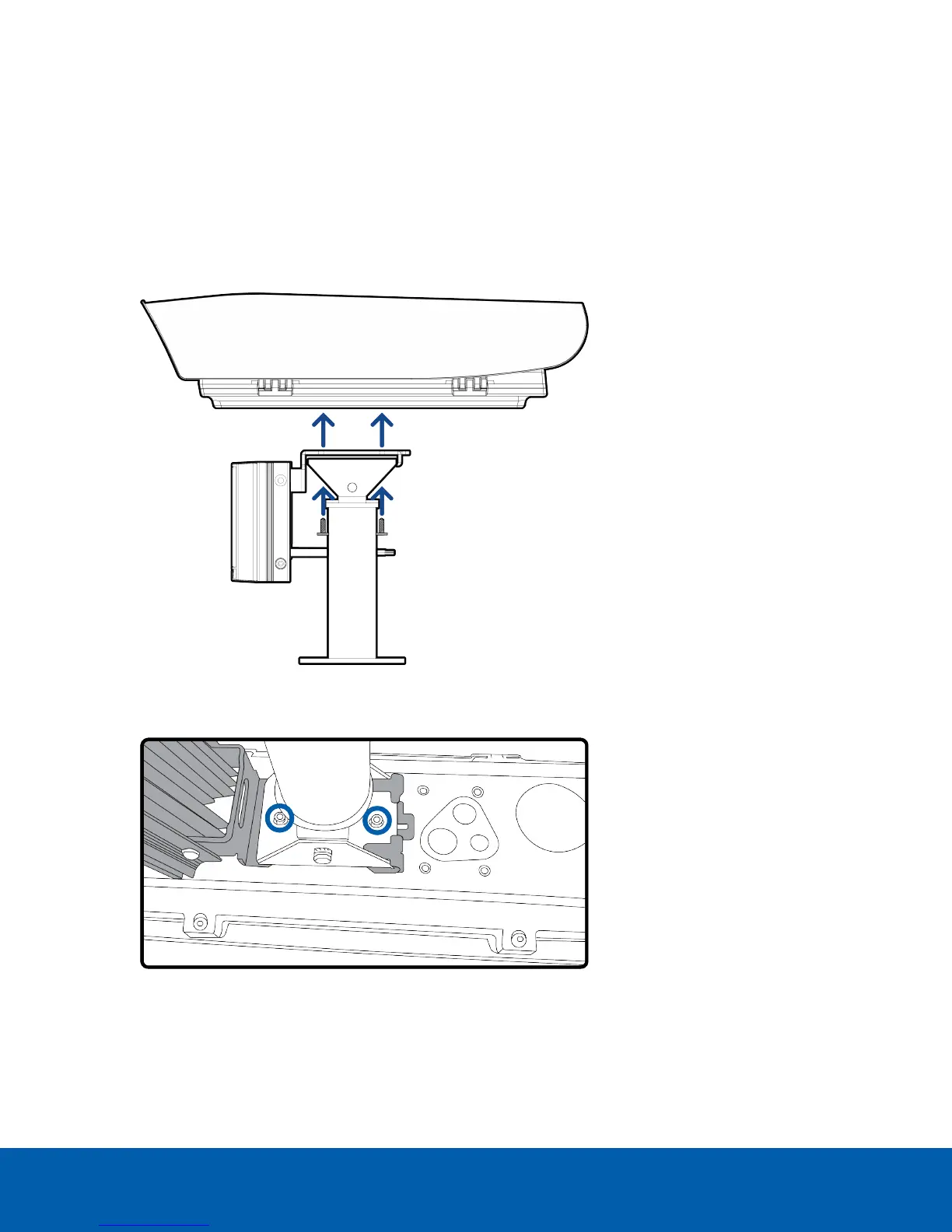

2. Align the IRilluminator's bracket holes and mounting adapter holes with the mounting holes in the
housing, as shown in the diagram below.
3. Use the included screws to secure the IRilluminator and mounting adapter to the housing. Tighten the
screws using the provided allen wrench.
Connecting the Cables
Once the housing and mounting adapter have been mounted to the desired location, follow the steps below to
connect the PoE cable:
Mounting the Optional ES-HD-MNT-PAR Parapet Mounting Adapter 14

Avigilon H4 Specifications

General

Sensor Type	CMOS
Impact Protection	IK10
Camera Type	Dome
Day/Night	Yes
Video Compression	H.264
Wide Dynamic Range (WDR)	120dB
Power	PoE (IEEE 802.3af)
Operating Temperature	-40 °C to +50 °C (-40 °F to +122 °F) depending on the model
Ingress Protection	IP66
Onvif Compliance	Yes
IP Rating	IP66
Power Supply	12VDC or PoE
