Avigilon H4 Installation Guides

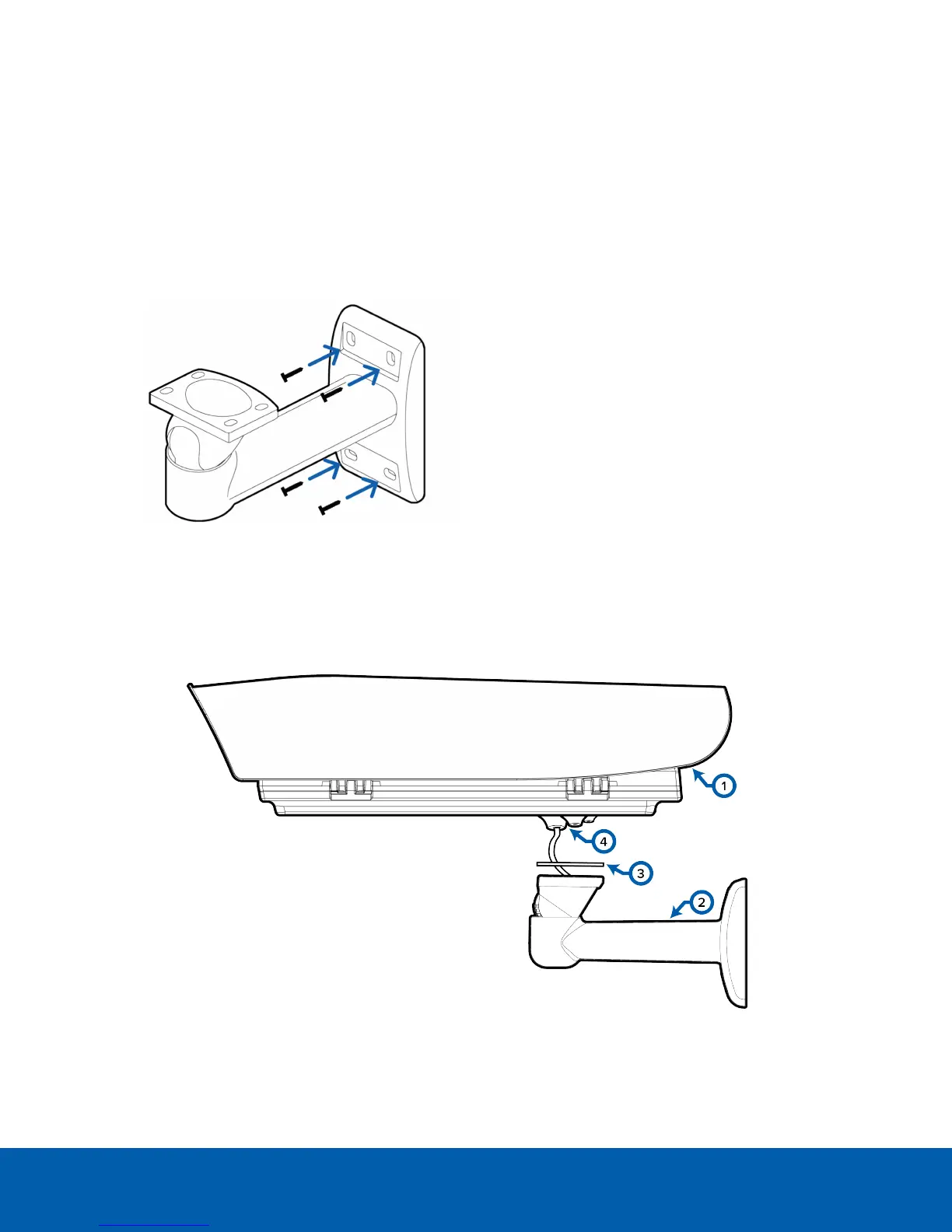

Mounting the Feed Through Mounting Arm
Complete the following steps to mount the enclosure using the included feed through mounting arm:
1. Drill four mounting holes and a cable entry hole into the mounting surface.
2. Attach the mounting bracket to the mounting surface.
l Use screws that are appropriate for the mounting surface.
l It is recommended that you apply silicone sealant into the mounting holes underneath the screw
heads.
3. Pull the required PoE cable from the Power Injector through the mounting arm and through the included
gasket.
a. Cut a hole in the gasket (3). The hole needs to be big enough to accommodate the PoE cable and
the part of the sealing rings (4) that will extend through the enclosure (1). Place the gasket (3) in
between the mounting arm (2) and the enclosure (1).
Mounting the Feed Through Mounting Arm 10

Avigilon H4 Specifications

General

Sensor Type	CMOS
Impact Protection	IK10
Camera Type	Dome
Day/Night	Yes
Video Compression	H.264
Wide Dynamic Range (WDR)	120dB
Power	PoE (IEEE 802.3af)
Operating Temperature	-40 °C to +50 °C (-40 °F to +122 °F) depending on the model
Ingress Protection	IP66
Onvif Compliance	Yes
IP Rating	IP66
Power Supply	12VDC or PoE
