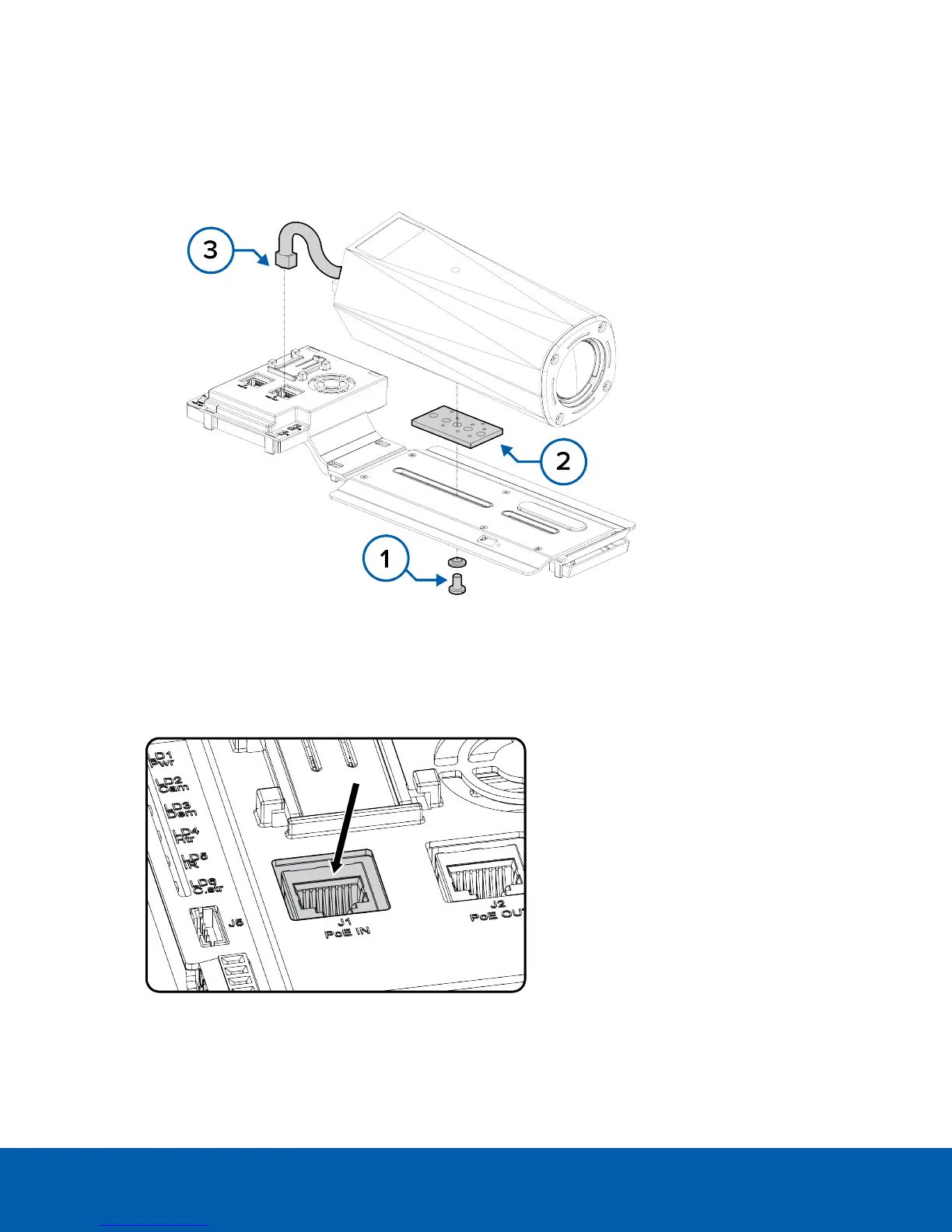

3. Mount the camera to the PoE module using the supplied scew (1), washer, and spacer (2). Apply at least
one spacer to guarantee electrical isolation between the PoE module and the camera.
a. The spacer should be positioned in the second slot, as shown in the image below. Slide the
camera and spacer as close to the front as possible to avoid visual interference or optical
reflections from the glass.
b. Ensure that the camera is aligned paralel to the module and then tighten the screw.
c. Connect the camera to the J2 connector (PoE OUT) with the supplied cable (3).
4. Connect the PoE cable from the Power Injector to the J1 connector (PoEIN). The PoE cable was routed
into the enclosure during the mounting step (see Mounting the LPC Enclosure on page9).
Installing the Camera 17

Avigilon H4 Specifications

General

Sensor Type	CMOS
Impact Protection	IK10
Camera Type	Dome
Day/Night	Yes
Video Compression	H.264
Wide Dynamic Range (WDR)	120dB
Power	PoE (IEEE 802.3af)
Operating Temperature	-40 °C to +50 °C (-40 °F to +122 °F) depending on the model
Ingress Protection	IP66
Onvif Compliance	Yes
IP Rating	IP66
Power Supply	12VDC or PoE
