SDC wiring configuration

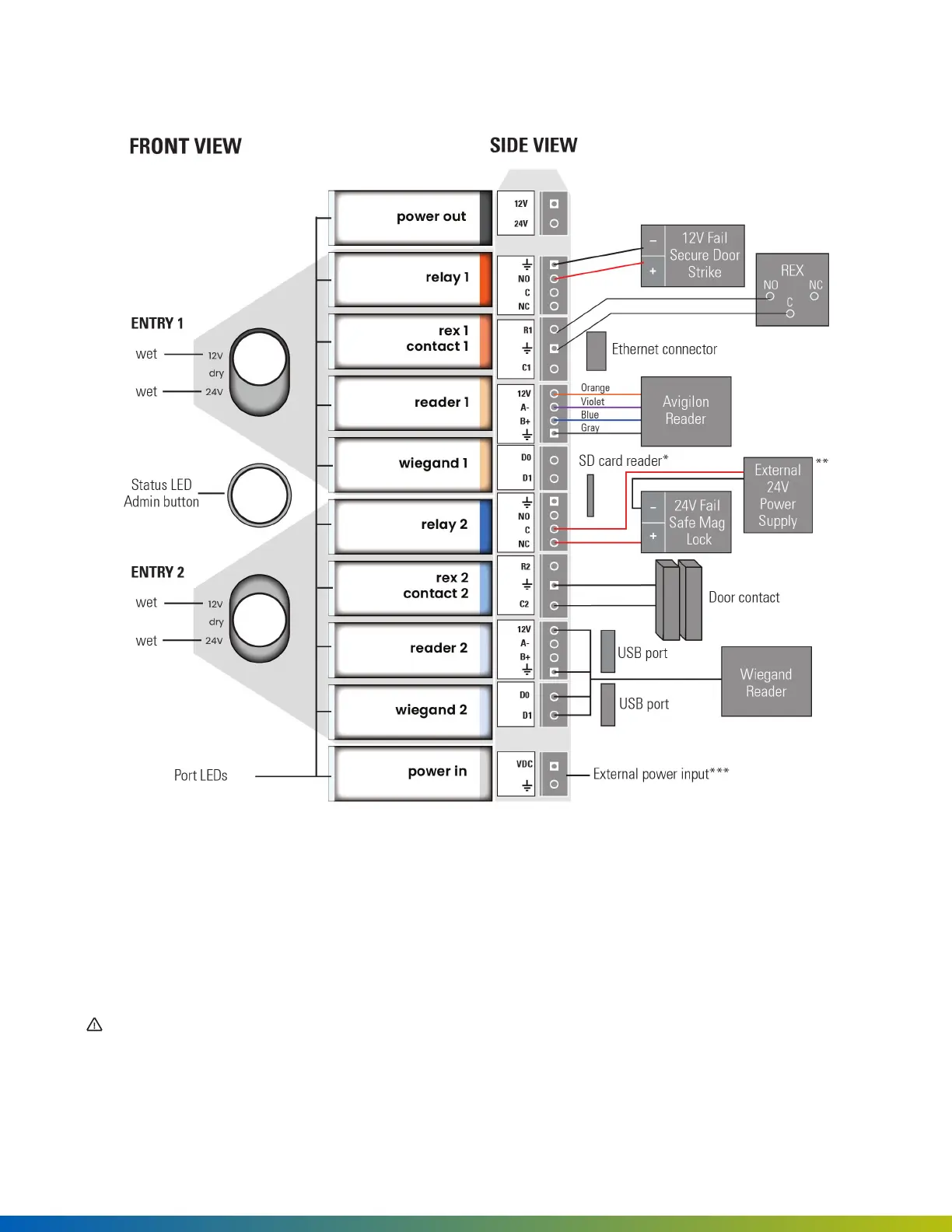

Figure 1 Standard SDC wiring configuration
* SD card must not be removed unless instructed by Avigilon Alta Support.
** 24V locking hardware requires PoE or a 24V power supply.
*** For backup or if PoE not available. 12V @ 2A (min) or 24V @ 1A (min). 24V required if locking hardware
requires 24V.
Certified external power source (complies with LPS) must be used.
Installation 11
