8.3.4 MAIN CONTROL BOARD ASSEMBLY
(1)
Loosen the fixing screws of the metal cover from the bottom housing as shown in the figure below.
(2)
Loosen the fixing screws to remove the metal cover.
(3)
Loosen the fixing screws of the SCSI connector with proper tool.

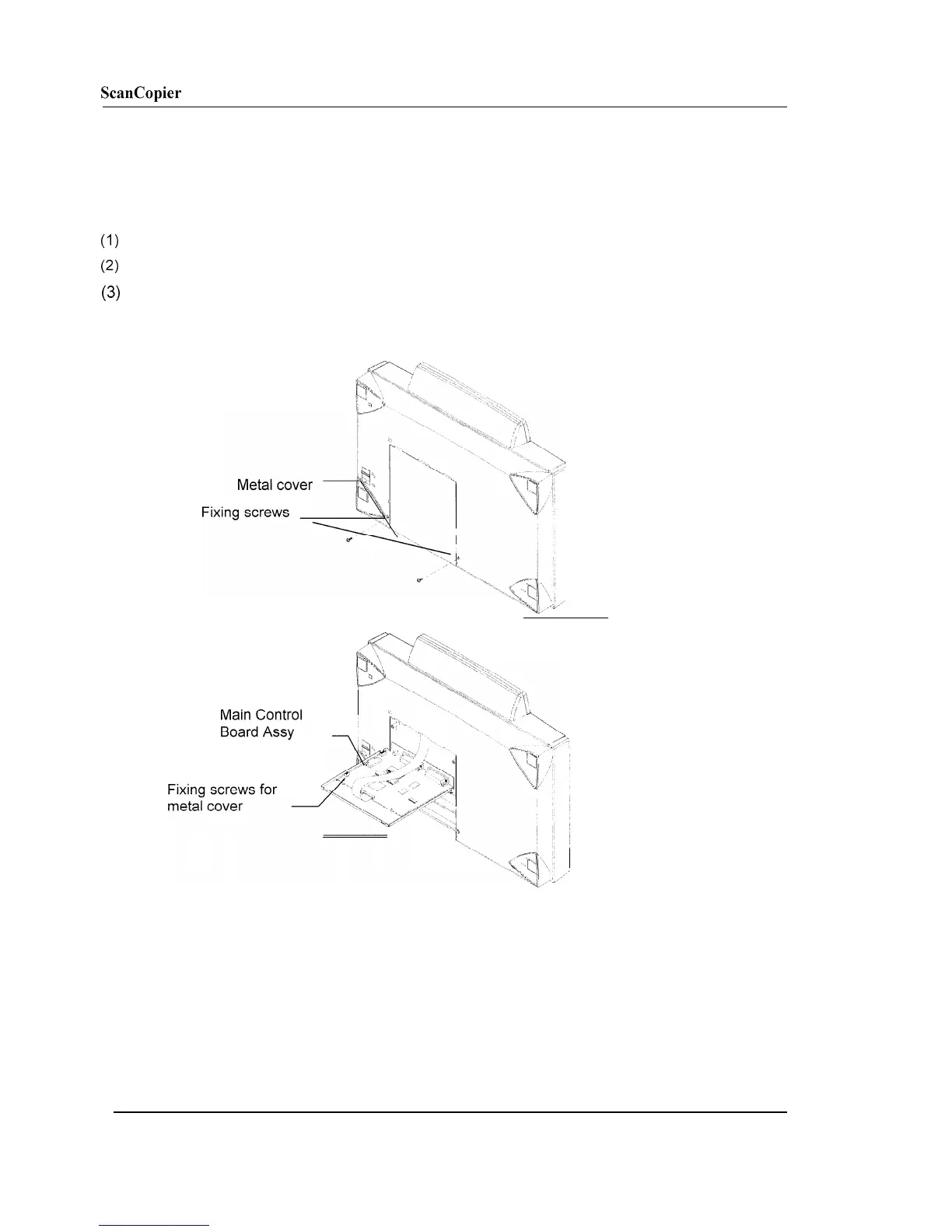

Figure 8.4 Main control PCBA removal
Bottom housing
