8.3.5 MOTOR BELT
(1) Remove upper housing and main control PCBA. (See section 8.3.4 and 8.3.4)
(2) Disconnect the motor belt by releasing the belt spring as shown in the figure below.
Note:
During the assembling process, keep the belt straight in center line.

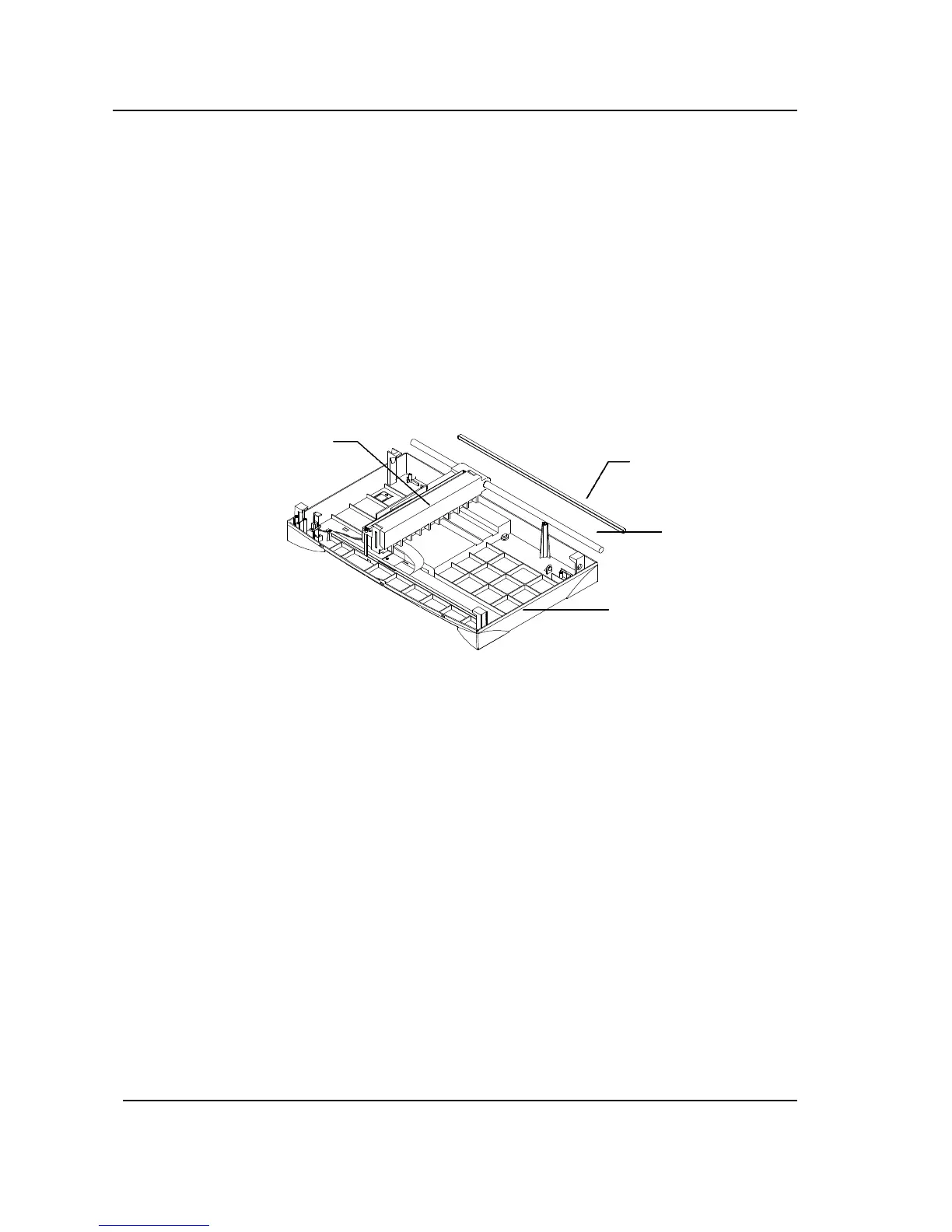

Figure 8.5 Belt removal
Bottom housing
Optical chassis
Motor belt
Sliding rod
