8.3.7 CCFL INVERTER PCBA
(1) Remove optical chassis. (See section 8.3.6).
(2) Remove the CCFC inverter PCBA from the optical chassis.
(3) Disconnect the CCFL inverter cable and CCFL inverter PCBA cable.

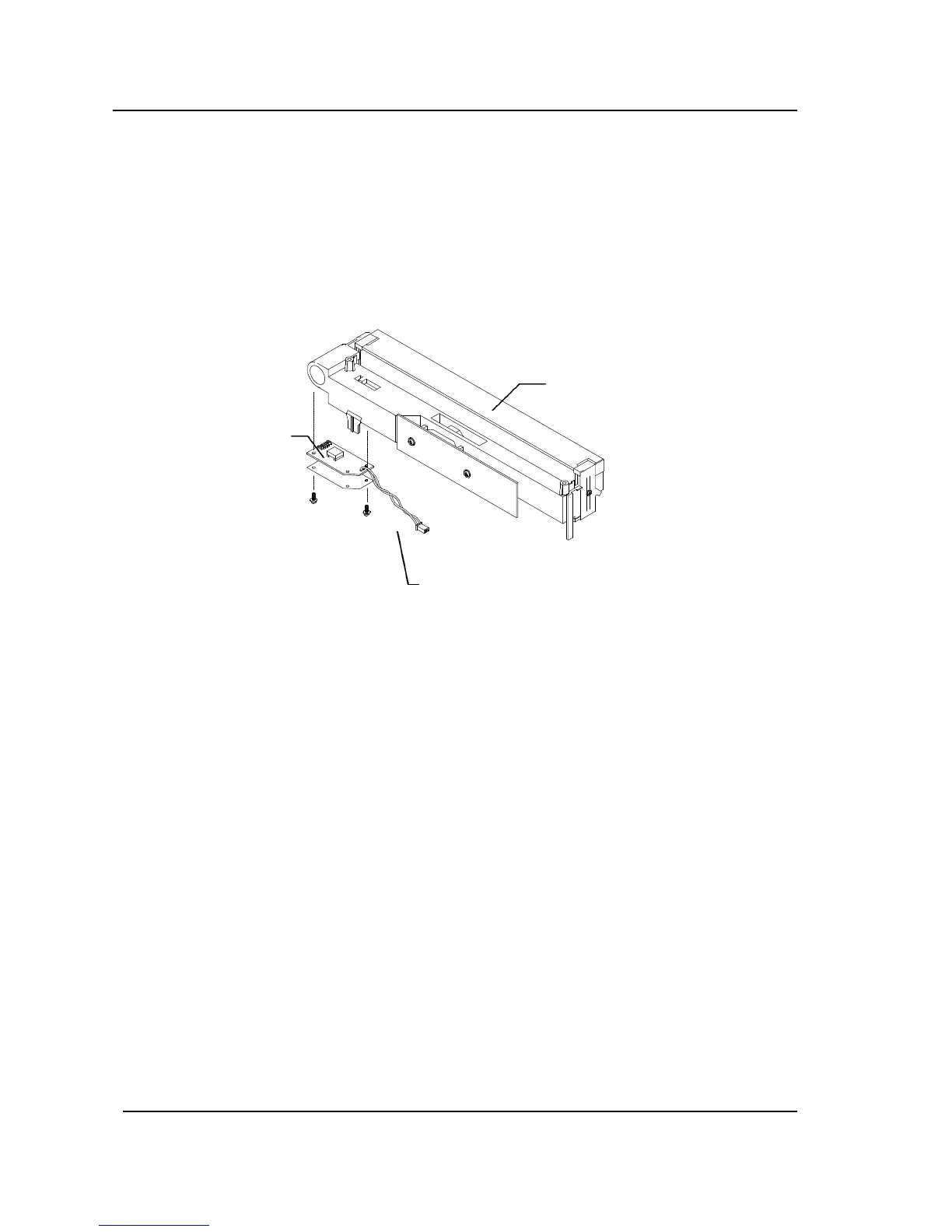

Figure 8.7 CCFC Inverter PCBA removal
Optical chassis
CCFL inverter
CCFL inverter
cable
