8.3.8 LAMP ASSEMBLY
(1) Remove the CCFC inverter (See section 8.3.7)
(2) Loosen the fixing screws of the lamp holder.
(3) Disconnect and replace the old lamp assembly with a new one.
(4) Fix the lamp assembly in place with the fixing screw.

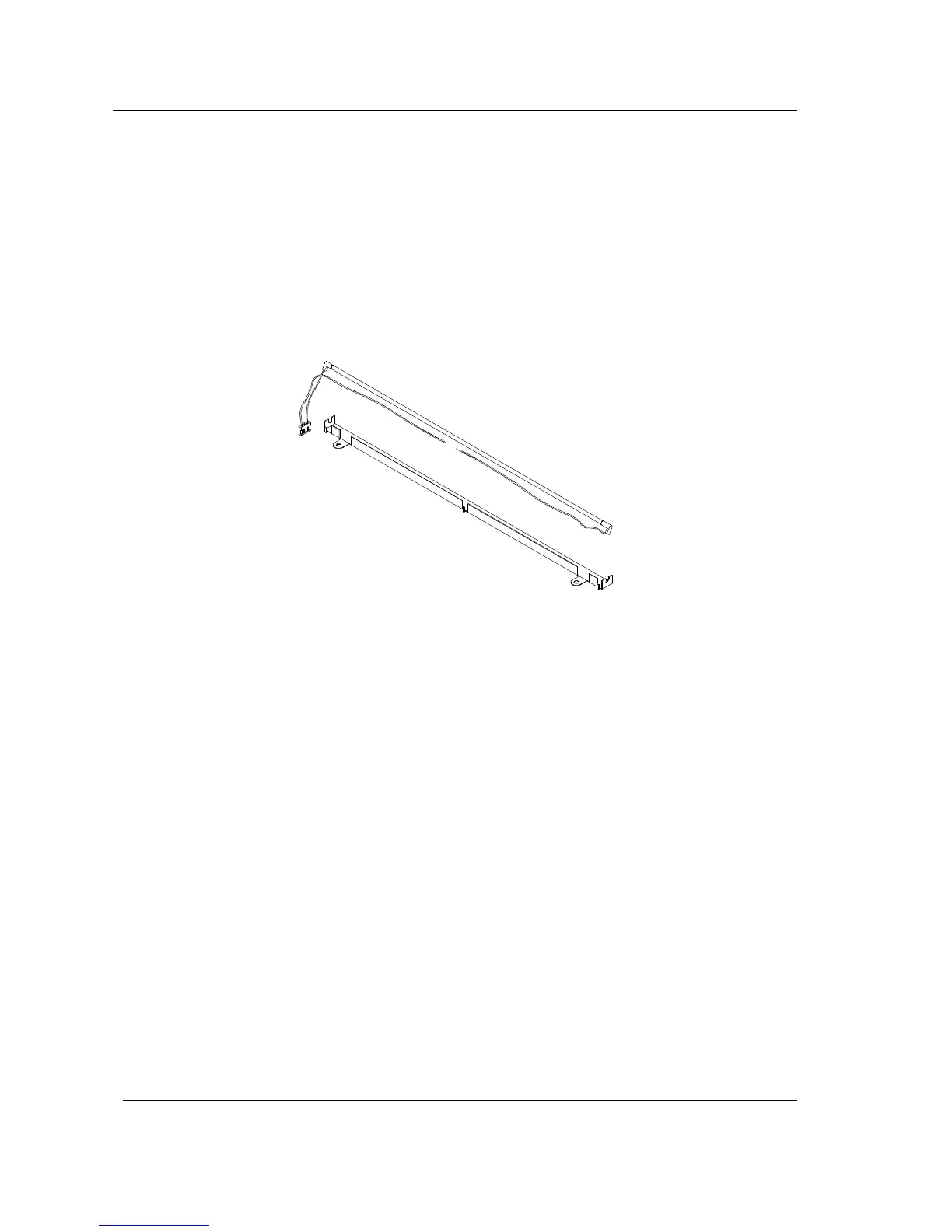

Figure 8.8 Lamp assembly removal
