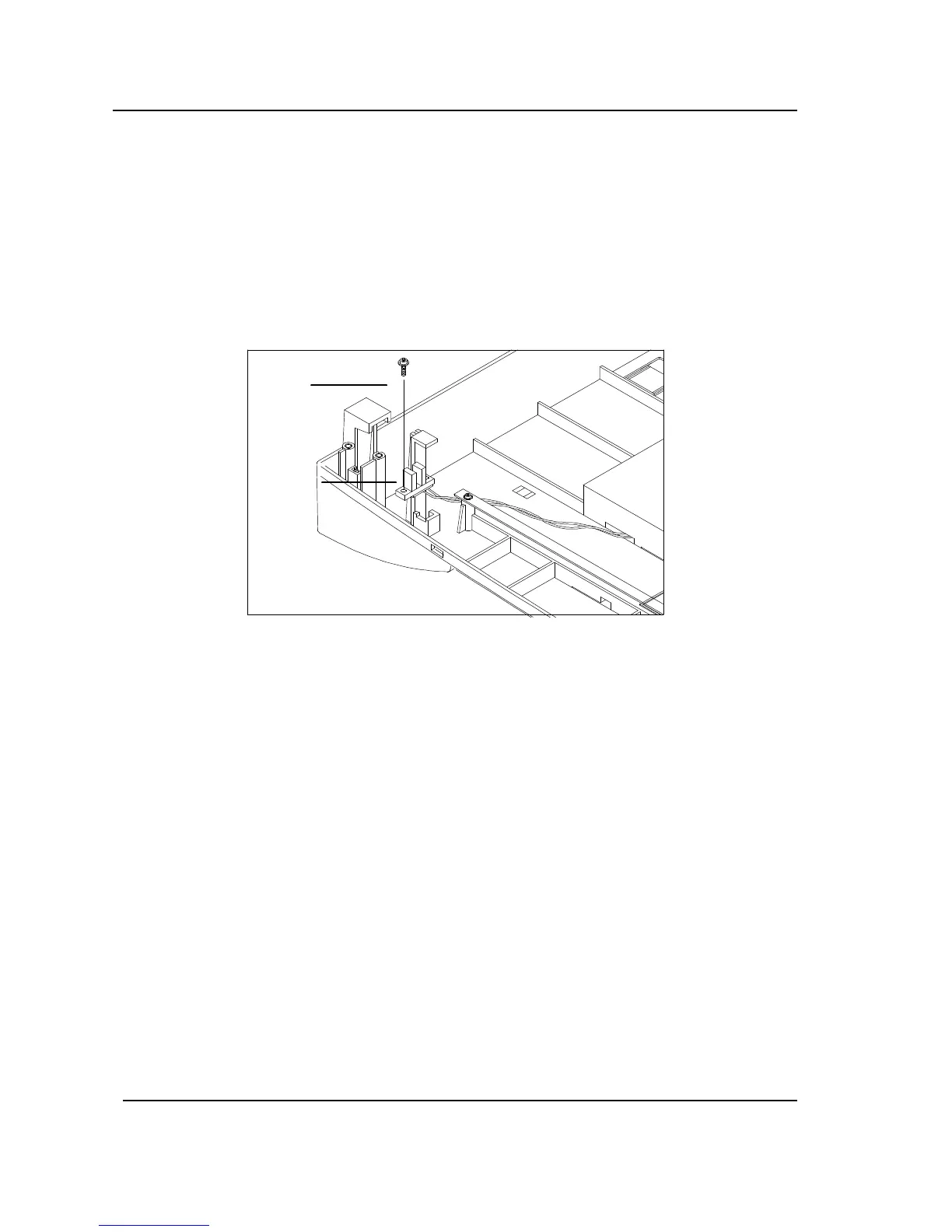

8.3.10 HOME POSITION SENSOR PCBA REPLACEMENT
(1) Remove the upper housing. (See section 8.3.3.)
(2) Remove the main control PCBA (See section 8.3.4) and disconnect the LED cable.
(3) Loosen the fixing screw to remove the LED PCBA and replace a new one.
(4) Reassemble the upper housing and the main board.
LED
PCBA
Fixing screw
