- 8 -

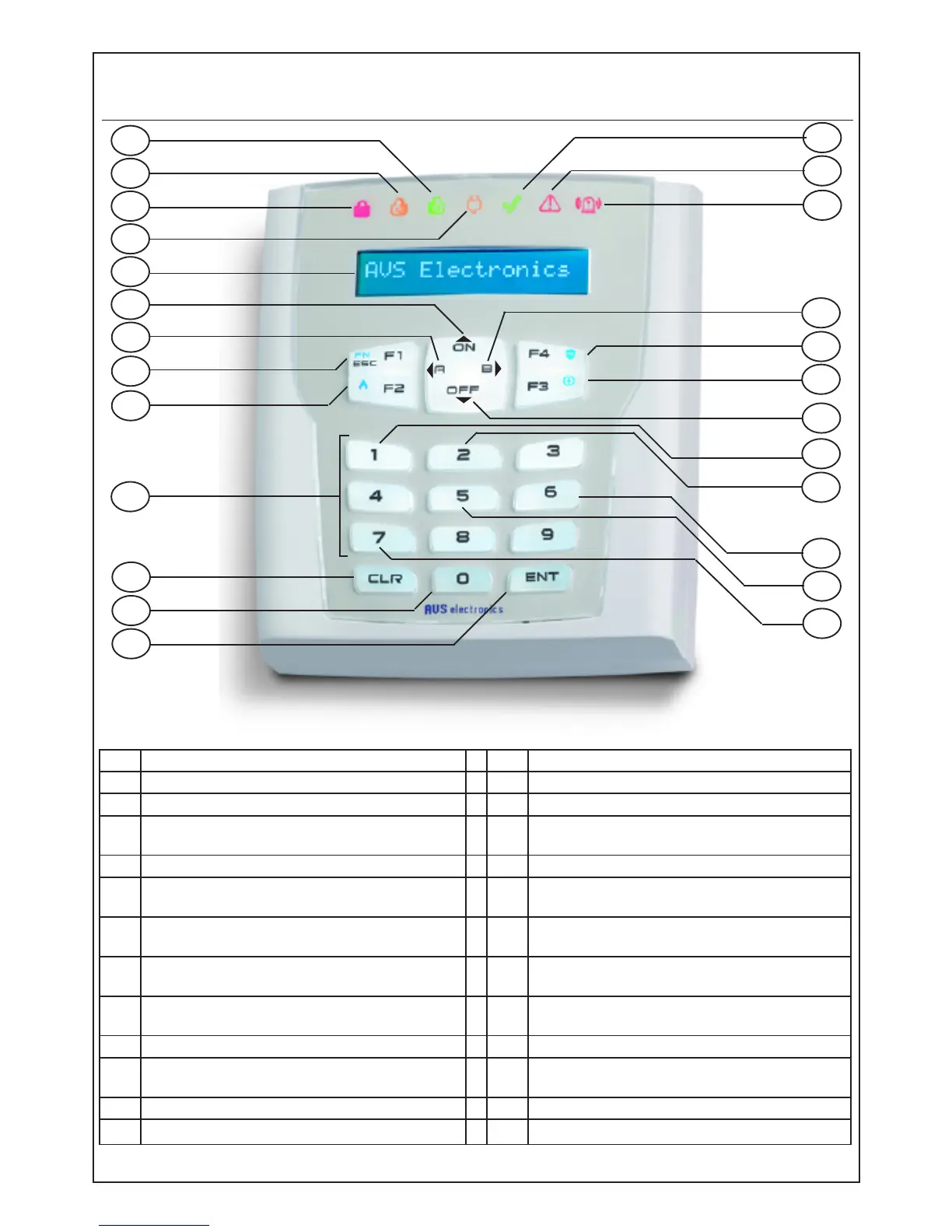

KEYPAD A500 - A500Plus
A500 - A500Plus description
1 GREEN LED - ACCESSORY LED 14 GREEN LED - SYSTEM READY
2 YELLOW LED - ACCESSORY LED 15
RED LED - TAKE CARE, VISUALIZATION ON DISPLAY
3 RED LED - SIGNALLING OF ARMED SYSTEM 16 NOT USED
4 YELLOW LED - PRESENCE OF 220V MAINS 17
PUSHBUTTON - B: MULTIFUNCTION COMMANDS
PUSHBUTTON – MOVE ON THE RIGHT []
5 DISPLAY 18 PUSHBUTTON - PANIC MESSAGE
6
PUSHBUTTON - ARMING ON
PUSHBUTTON – MOVE UP []
19 PUSHBUTTON - MEDICAL MESSAGE
7
PUSHBUTTON - A: MULTIFUNCTION COMMANDS
PUSHBUTTON – MOVE ON THE LEFT []
20
PUSHBUTTON - DISARMING
PUSHBUTTON – MOVE DOWN []
8
PUSHBUTTON – OUTPUT COMMAND
PUSHBUTTON – SEQUENCE FOR QUICK MESSAGE
21 PUSHBUTTON – END USER MENU
9 PUSHBUTTON - MEMORY EVENTS
PUSHBUTTON - FIRE MESSAGE
22 PUSHBUTTON - RESET FIRE
10 KEYPAD 23 PUSHBUTTON – OUTPUT ACTIVATION
11 PUSHBUTTON - DATA ERASING 24
PUSHBUTTON - DISARMING
BADGE READER (ONLY PLUS. MODEL)
12 PUSHBUTTON – ZONE EXCLUSION COMMAND 25 PUSHBUTTON – VOCAL HELP ACTIVATION
13 PUSHBUTTON – DATA CONFIRMATION
1
3
2
4
7
8
9
14
15
16
5
6
11
12
13
17
18
19
20
21
23
10
22
24
25
