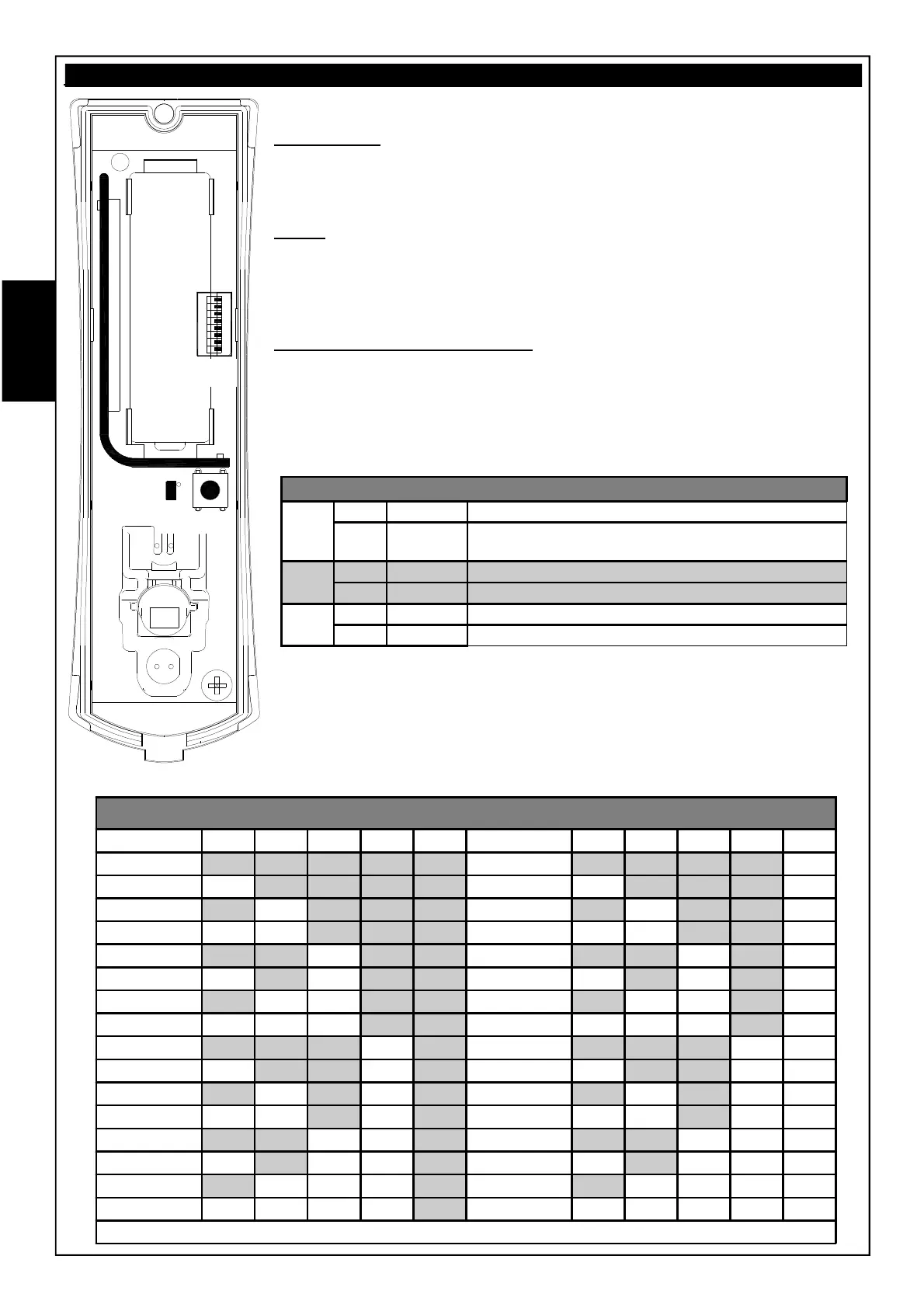

AVS Electronics ONE DT - OnE WS Power Supply and Functions; SW1 Functions and Address

- 26 -
E
N
G
OnE WS
Power supply:
OnE WS comes with a 3.6 V 2.2 Ah lithium battery (Model AA) included
LED L1
Flashes for about 60 seconds at first power-on and at each transmission (of
alarm, tamper, anti-masking, survival, etc.) made by the sensor.
Reduced consumption (DIP 6: OFF)
After an alarm transmission, the detector continues to analyze the surrounding space
but won’t emit any more, at least for the following 3 min during which it detects nothing.
SW1 - SENSOR ADDRESS
Sensor DIP1 DIP2 DIP3 DIP4 DIP5 Sensor DIP1 DIP2 DIP3 DIP4 DIP5
1
ON ON ON ON ON
17
ON ON ON ON OFF
2
OFF ON ON ON ON
18
OFF ON ON ON OFF
3
ON OFF ON ON ON
19
ON OFF ON ON OFF
4
OFF OFF ON ON ON
20
OFF OFF ON ON OFF
5
ON ON OFF ON ON
21
ON ON OFF ON OFF
6
OFF ON OFF ON ON
22
OFF ON OFF ON OFF
7
ON OFF OFF ON ON
23
ON OFF OFF ON OFF
8
OFF OFF OFF ON ON
24
OFF OFF OFF ON OFF
9
ON ON ON OFF ON
25
ON ON ON OFF OFF
10
OFF ON ON OFF ON
26
OFF ON ON OFF OFF
11
ON OFF ON OFF ON
27
ON OFF ON OFF OFF
12
OFF OFF ON OFF ON
28
OFF OFF ON OFF OFF
13
ON ON OFF OFF ON
29
ON ON OFF OFF OFF
14
OFF ON OFF OFF ON
30
OFF ON OFF OFF OFF
15
ON OFF OFF OFF ON
31
ON OFF OFF OFF OFF
16
OFF OFF OFF OFF ON
32
OFF OFF OFF OFF OFF
By DEFAULT, the sensors are supplied with DIP SWITCHES 1 to 5 set to OFF (sensor 32)
ON
1 2 3 4 5 6 7 8
SW1
TAMPER
L1
SW1 - FUNCTIONS
DIP 6
ON DEFAULT
Normal Consumption (stand-by: 5 seconds)
OFF
Reduced Consumption (stand-by: 3 minutes + LED
deactivated)
DIP 7
ON
Reduced sensitivity
OFF DEFAULT
Normal sensitivity
DIP 8
ON
Enable Tamper Accelerometer
OFF DEFAULT
Disable Tamper Accelerometer
