• Connect an antenna or a coaxial Cable between the ANTENNA jack on the rear of the
TV and the ANTENNA OUT jack on the VCR.
• Connect the RCA Jack of the VCR to the RCA Jack1 or Jack2 of the set.
• Press the PLAY button on the VCR.
• When connecting the S-VIDEO VCR to the S-VIDEO socket, the picture quality will be
further improved.
• Connect the S-VIDEO socket of the VCR to the S-VIDEO socket of the set.
• Connect the audio cable from the S-VIDEO VCR to the AUDIO sockets of the set.
• Select the S-VIDEO by pressing the TV/AV button repeatedly.
• Press the PLAY button on the VCR. The VCR playback picture appears on the screen
• To avoid picture noise (interference), leave an adequate distance (20 inches or more)
between the VCR and TV.
VCR Setup
Tips
2
Insert a video tape into the VCR and press the PLAY button on the VCR. See VCR
owner’s manual.
1
Press TV/AV button on the remote control and select AV1 or AV2.
(When connecting with the S-Video, select the S-VIDEO.)
To watch VCR

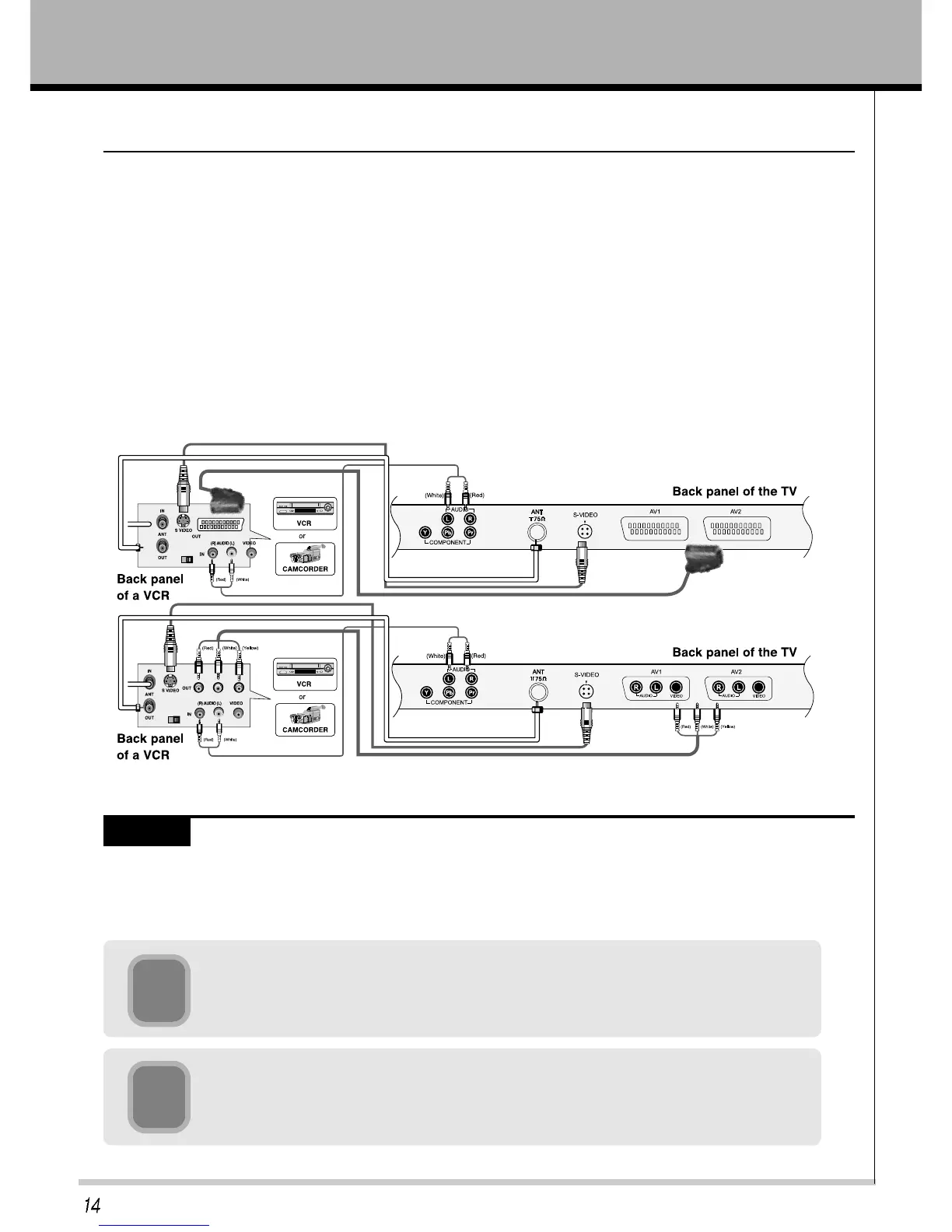

Connection of external equipment
*SCART
*RCA
