Install the bracket
Install the mount for the AXIS HOV Housing on a wall ceiling or pole and make sure that the screws
and plugs are appropriate for the material (e.g. wood, metal, sheet rock, stone). Check if the wall
bracket has
an internal cable channel or if the cables are routed separately. Select the
corresponding description below and install the wall bracket in the intended position.
Alt.
Wall bracket with internal cable channel
1. Install the wall bracket/holder on a wall, ceiling or pole using the appropriate screws for
the weight of the housing and the material.
2. Attach the rubber gasket and make holes for the cables.
3. Pull a sufficient length of the cables through for the housing and camera (approximately
50cm).
Alt.
Wall bracket with external cabling
Install the cables and wall bracket/holder on a wall, ceiling or pole. To comply with the
IP66-rated design of the AXIS HOV Housing, it is necessary to use appropriate conduits to
protect the cables.
Note: Please visit the Axis web site at www.axis.com for a comprehensive list of the available
brackets and accessories.
2
A
B
A
B
cables
cables

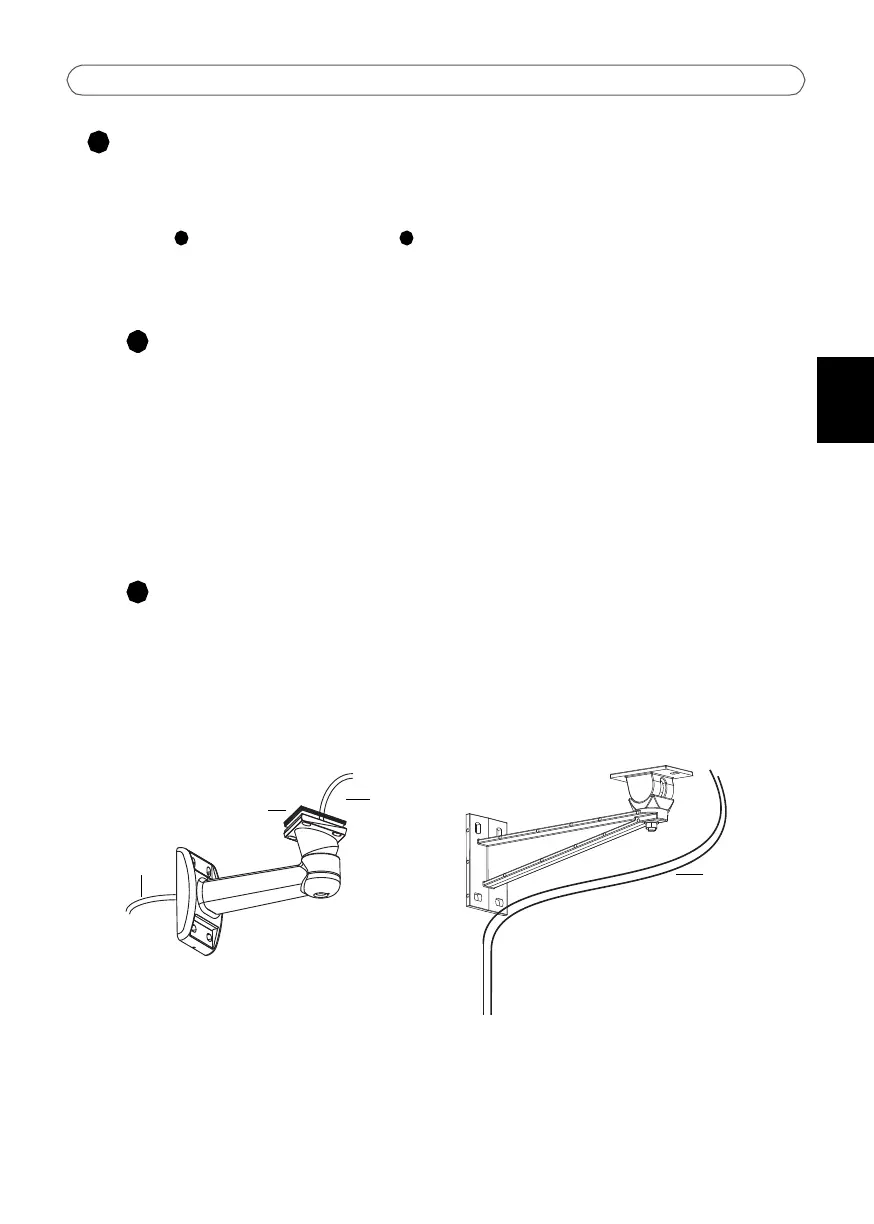

A - Wall bracket (internal cable channel)
B - Wall bracket (external cabling)
rubber gasket
cables
