AXISA1601NetworkDoorController

Systemconﬁguration

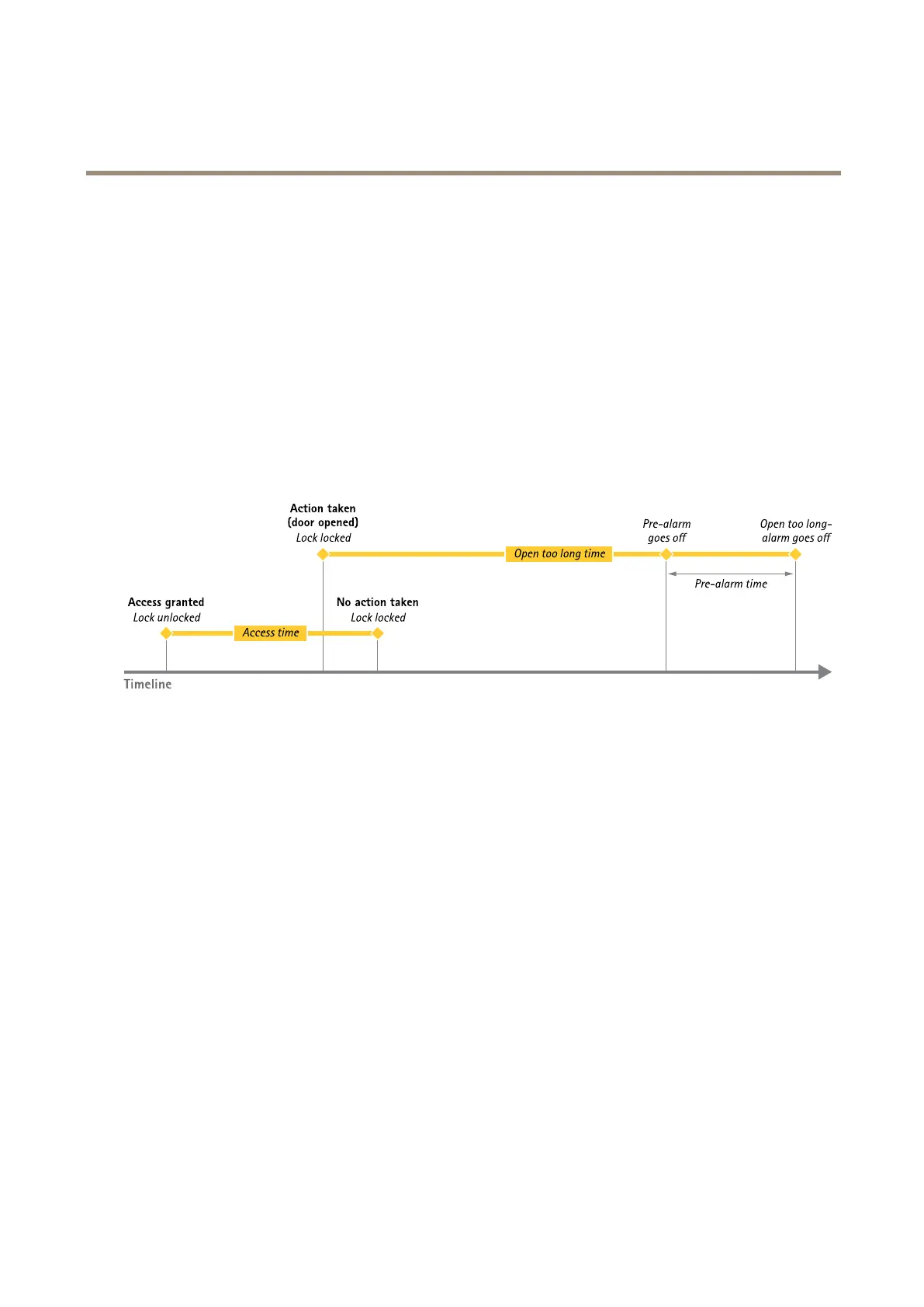

•Accesstime–Setthenumberofsecondsthedoorshallremainunlockedafteraccesshasbeengranted.Thedoorremains

unlockeduntilthedoorhasbeenopenedoruntilthesettimehasbeenreached.Thedoorwilllockwhenitclosesregardless

ofwhethertheaccesstimehasexpiredornot.

•Longaccesstime–Setthenumberofsecondsthedoorshallremainunlockedafteraccesshasbeengranted.Longaccess

timeoverridesthealreadysetaccesstimeandwillbeenabledforuserswithlongaccesstimeselected.

SelectDoormonitortomakethefollowingdoortimeoptionsavailable:

•Opentoolongtime–Setthenumberofsecondsthedoorisallowedtostayopen.Ifthedoorisstillopenwhentheset

timehasbeenreached,thedooropentoolongalarmistriggered.Setupanactionruletocongurewhichactionthe

opentoolongeventshalltrigger.

•Pre-alarmtime–Apre-alarmisawarningsignalthatistriggeredbeforetheopentoolongtimehasbeenreached.It

informstheadministratorandwarns,dependingonhowtheactionrulehasbeensetup,thepersonenteringthedoor

thatthedoorneedstobeclosedtoavoidthedooropentoolongalarmtogooff.Setthenumberofsecondsbeforethe

dooropentoolongalarmistriggeredthesystemshallgivethepre-alarmwarningsignal.Todisablethepre-alarm,set

thepre-alarmtimeto0.

Forinformationabouthowtosetupanactionrule,seeHowtosetupactionrulesonpage21.

Aboutlockoptions

Thefollowinglockcircuitoptionsareavailable:

•Relay–Canonlybeusedononelockperdoorcontroller.Iftwodoorsareconnectedtothedoorcontroller,arelaycan

onlybeusedonthelockoftheseconddoor.

•None–OnlyavailableforLock2.Selectifonlyonelockwillbeused.

Thefollowinglockmonitoroptionsareavailableforsingle-doorcongurations:

•Lockmonitor–Selecttomakethelockmonitorcontrolsavailable.Thenselectthelockthatshallbemonitored.Alock

monitorcanonlybeusedondouble-lockdoorsandcannotbeusediftwodoorsareconnectedtothedoorcontroller.

-Opencircuit=Locked–Selectifthelockmonitorcircuitisnormallyclosed.Thelockmonitorgivesthedoor

unlockedsignalwhenthecircuitisclosed.Thelockmonitorgivesthedoorlockedsignalwhenthecircuitisopen.

-Opencircuit=Unlocked–Selectifthelockmonitorcircuitisnormallyopen.Thelockmonitorgivesthedoor

unlockedsignalwhenthecircuitisopen.Thelockmonitorgivesthedoorlockedsignalwhenthecircuitisclosed.

HowtocongurereadersandREXdevices

Whenyouhaveconguredthedoormonitorsandlocksinthenewhardwareconguration,youcancongurethereadersand

requesttoexit(REX)devices.

1.Ifareaderwillbeused,selectthecheckboxandthenselecttheoptionsthatmatchthereader’scommunicationprotocol.
