AXIS M3045-V Network Camera
Media Streams

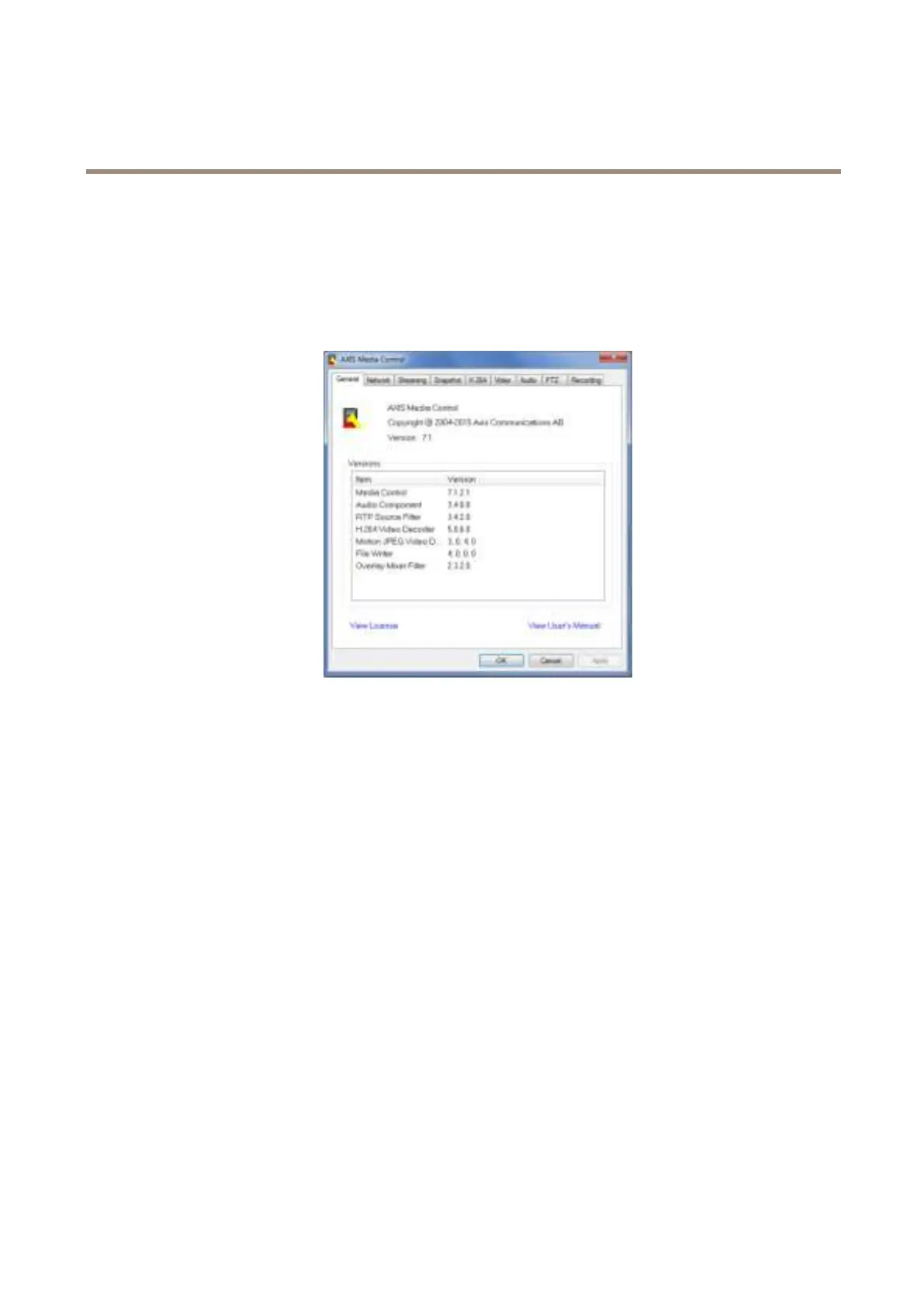

The AMC Control Panel can be used to congure various video settings. Please see the AXIS Media Control User’s Manual for more
information.
The AMC Control Panel is automatically installed on rst use, after which it can be congured. Open the AMC Control Panel from:
• Windows Control Panel (from the Start screen or Start menu)
• Alternatively, right-click the video image in Internet Explorer and click Settings.
Alternative Methods of Accessing the Video Stream
You can also access video and images from the Axis product in the following ways:
• Motion JPEG server push (if supported by the client, Chrome or Firefox, for example). This option maintains an open HTTP
connection to the browser and sends data as and when required, for as long as required.
• Still JPEG images in a browser. Enter the path http://<ip>/axis-cgi/jpg/image.cgi
• Windows Media Player. This requires AXIS Media Control and the H.264 decoder to be installed. The following paths
can be used:
- Unicast via RTP: axrtpu://<ip>/axis-media/media.amp
- Unicast via RTSP: axrtsp://<ip>/axis-media/media.amp
- Unicast via RTSP, tunneled via HTTP: axrtsphttp://<ip>/axis-media/media.amp
- Multicast: axrtpm://<ip>/axis-media/media.amp
• QuickTime
TM
. The following paths can be used:
- rtsp://<ip>/axis-media/media.amp
- rtsp://<ip>/axis-media/media.3gp
14

Axis M3045-V Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Type	IP security camera
Certification	EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A / B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP42, IEC/EN 62262 Class IK08
Languages support	CHI (SIMPL), DEU, ENG, ESP, FRE, ITA, JPN, KOR, POR, RUS
Number of languages	10
Placement supported	Indoor
Connectivity technology	Wired
Flash memory	256 MB
Internal memory	512 MB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Ethernet LAN (RJ-45) ports	1
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
Housing material	Acrylonitrile butadiene styrene (ABS)
Protection features	Dust resistant
International Protection (IP) code	IP42
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
Alert notification type	E-mail
Pan range	-177 - 177 °
White balance	Auto
Tilt angle range	-69 - 69 °
Angle of rotation	352 °
Camera pan control	-
Camera shutter speed	1/32500 - 1/5 s
Minimum illumination	0.25 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Power source type	PoE
Power consumption (max)	3 W
Power consumption (typical)	2.6 W
Focus adjustment	2.0
Fixed focal length	2.8 mm
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 85 %
Bundled software	AXIS Camera Companion, AXIS Camera Station, Video management software
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	720p, 1080p
Video compression formats	H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 1920 x 1080 (HD 1080)
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	101 mm
Height	56 mm
Weight	170 g
