Axis M3045-V User Manual

AXIS M3045-V Network Camera

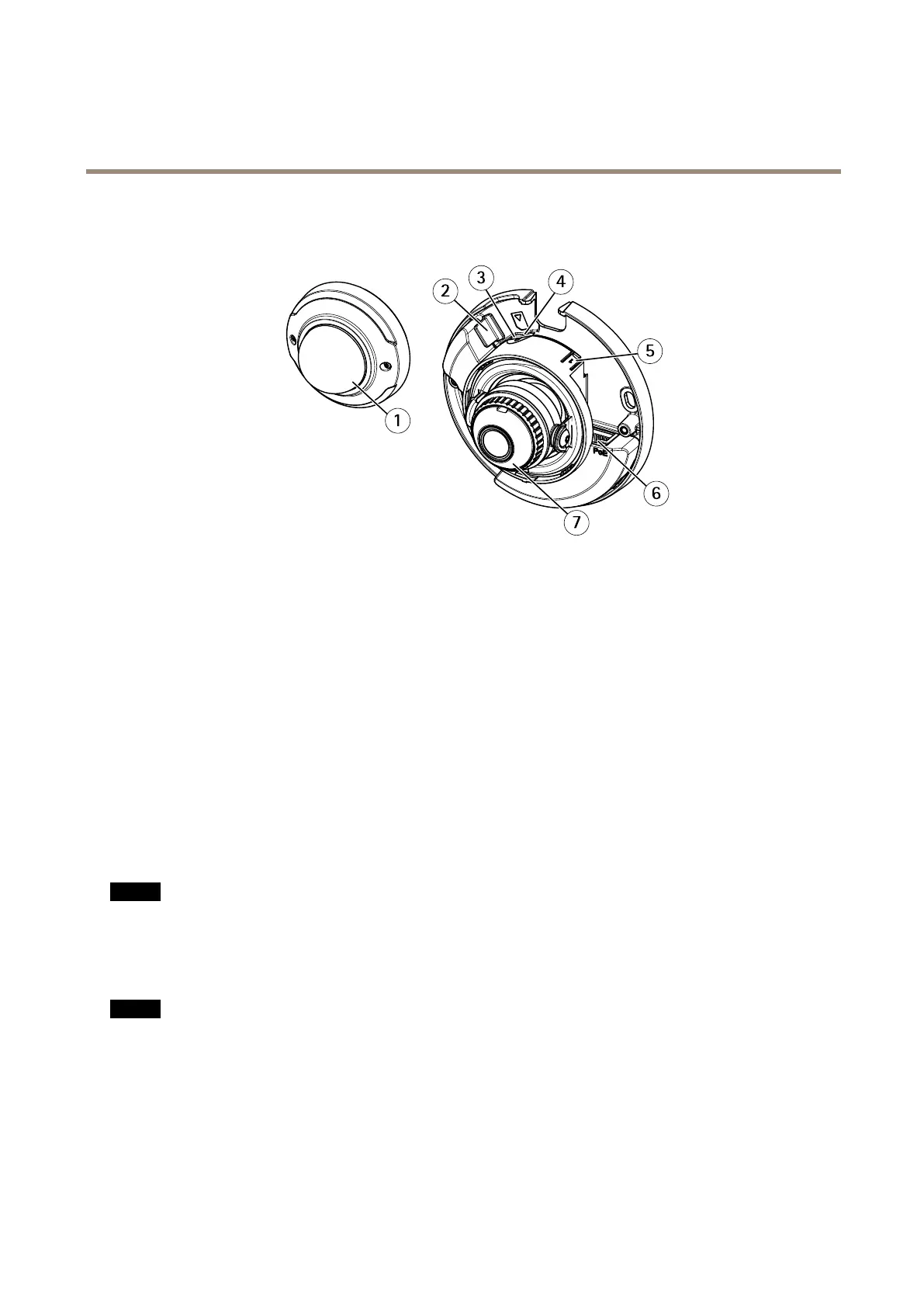

Hardware Overview
Hardware Overview
1
Dome cover
2
HDMI connector
3
Status LED
4
microSD card slot
5
Control button
6
Network connector (PoE)
7
Focus ring
Connectors and Buttons
For technical specications, see page 63.
HDMI Connector
The HDMI
TM
Connector is used for connecting to a display or monitor.
Network Connector
RJ45 Ethernet connector with Power over Ethernet (PoE).
NONO
NO
TICETICE
TICE
The product shall be connected using a shielded network cable (STP). All cables connecting the product to the network shall
be intended for their specic use. Make sure that the network devices are installed in accordance with the manufacturer’s
instructions. For information about regulatory requirements, see Electromagnetic Compatibility (EMC) on page 2 .
SD Card Slot
NONO
NO
TICETICE
TICE
• Risk of damage to SD card. Do not use sharp tools, metal objects or excessive force when inserting or removing the
SD card. Use your ngers to insert and remove the card.
• Risk of data loss and corrupted recordings. Do not remove the SD card while the product is running. Disconnect power or
unmount the SD card from the Axis product’s webpages before removal.
This product supports microSD/microSDHC/microSDXC cards (not included).
For SD card recommendations, see www.axis.com
7

Axis M3045-V Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Type	IP security camera
Certification	EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A / B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP42, IEC/EN 62262 Class IK08
Languages support	CHI (SIMPL), DEU, ENG, ESP, FRE, ITA, JPN, KOR, POR, RUS
Number of languages	10
Placement supported	Indoor
Connectivity technology	Wired
Flash memory	256 MB
Internal memory	512 MB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Ethernet LAN (RJ-45) ports	1
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
Housing material	Acrylonitrile butadiene styrene (ABS)
Protection features	Dust resistant
International Protection (IP) code	IP42
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
Alert notification type	E-mail
Pan range	-177 - 177 °
White balance	Auto
Tilt angle range	-69 - 69 °
Angle of rotation	352 °
Camera pan control	-
Camera shutter speed	1/32500 - 1/5 s
Minimum illumination	0.25 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Power source type	PoE
Power consumption (max)	3 W
Power consumption (typical)	2.6 W
Focus adjustment	2.0
Fixed focal length	2.8 mm
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 85 %
Bundled software	AXIS Camera Companion, AXIS Camera Station, Video management software
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	720p, 1080p
Video compression formats	H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 1920 x 1080 (HD 1080)
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	101 mm
Height	56 mm
Weight	170 g
