Axis M3045-V User Manual

AXIS M3045-V Network Camera
Access the Product

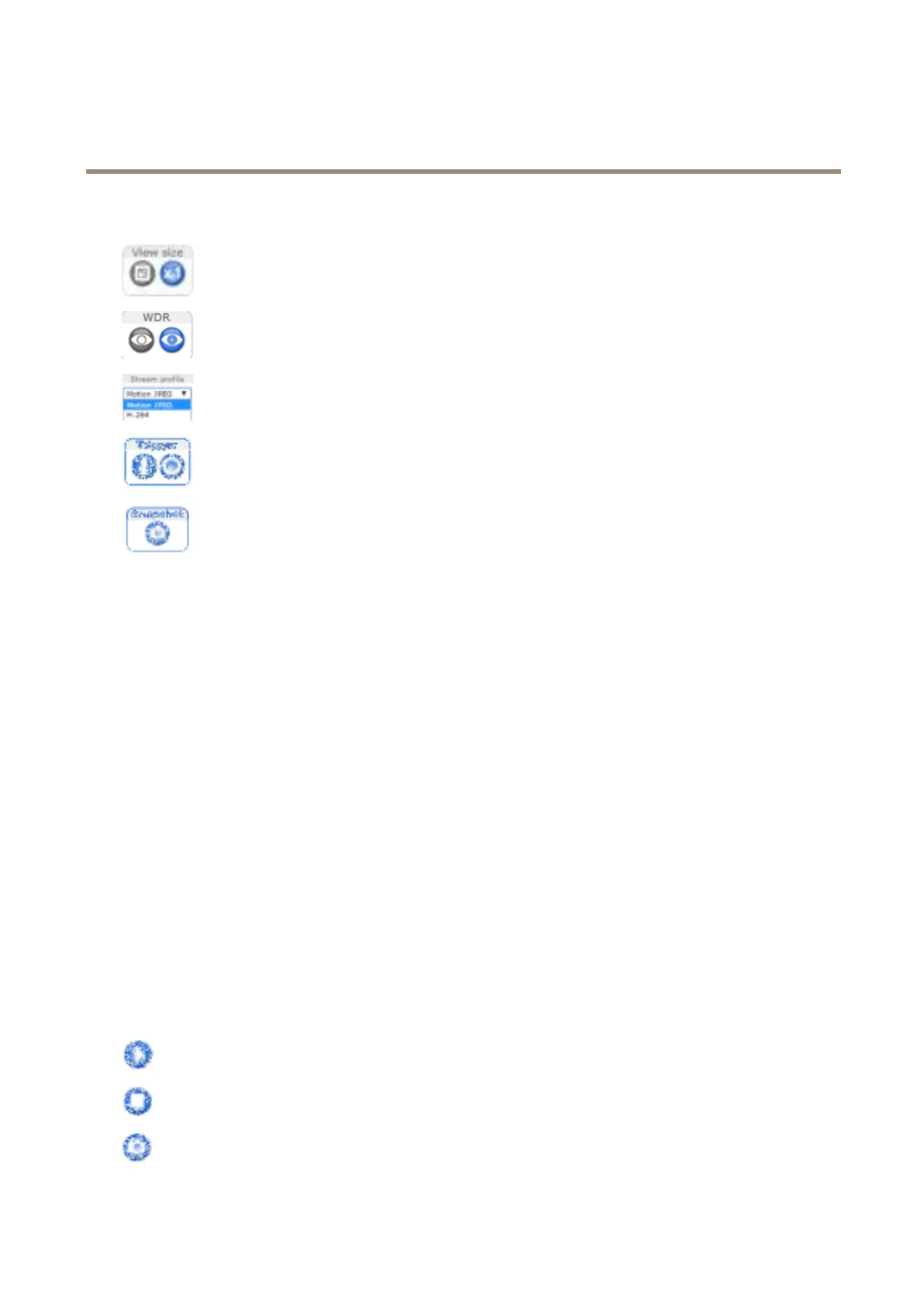

Controls on the Live View Page
Click the View size buttons to show the image in full size (right button) or to scale down the image to
t the browser window (left button).
Click WDR on to enable WDR in intense backlight conditions. Click WDR off to disable WDR in low
light conditions for optimal exposure.
Select a stream prole for the Live View page from the Stream Prole drop-down list. For information
about how to congure stream proles, see page 19.
Use the Manual Trigger button to trigger an action rule from the Live View page. For information about
how to congure and enable the button, see Manual Trigger on page 11.
Click Snapshot to save a snapshot of the video image. This button is primarily intended for use when
the AXIS Media Control viewer toolbar is not available. Enable this button from Live View Cong >
Action Buttons.
Manual Trigger
The Manual Trigger is used to trigger an action rule from the Live View page. The manual trigger can for example be used to
validate actions during product installation and conguration.
To congure the manual trigger:
1. Go to Setup > Events.
2. Click Add to add a new action rule.
3. From the Trigger drop-down list, select Input Signal.
4. From the second drop-down list, select Manual Trigger.
5. Select the desired action and congure the other settings as required.
For more information about action rules, see Events on page 39.
To show the manual trigger buttons in the Live View page:
1. Go to Setup > Live View Cong.
2. Under Action Buttons, select Show manual trigger button.
AXIS Media Control viewer toolbar
The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC) on page 13 for more
information. The toolbar displays the following buttons:
The Play button connects to the Axis product and starts playing a media stream.
The Stop button stops the media stream.
The Snapshot button takes a snapshot of the video image.
11

Axis M3045-V Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Type	IP security camera
Certification	EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A / B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP42, IEC/EN 62262 Class IK08
Languages support	CHI (SIMPL), DEU, ENG, ESP, FRE, ITA, JPN, KOR, POR, RUS
Number of languages	10
Placement supported	Indoor
Connectivity technology	Wired
Flash memory	256 MB
Internal memory	512 MB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Ethernet LAN (RJ-45) ports	1
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
Housing material	Acrylonitrile butadiene styrene (ABS)
Protection features	Dust resistant
International Protection (IP) code	IP42
Security algorithms	802.1x RADIUS, HTTPS, SSH, SSL/TLS
Alert notification type	E-mail
Pan range	-177 - 177 °
White balance	Auto
Tilt angle range	-69 - 69 °
Angle of rotation	352 °
Camera pan control	-
Camera shutter speed	1/32500 - 1/5 s
Minimum illumination	0.25 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Power source type	PoE
Power consumption (max)	3 W
Power consumption (typical)	2.6 W
Focus adjustment	2.0
Fixed focal length	2.8 mm
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 85 %
Bundled software	AXIS Camera Companion, AXIS Camera Station, Video management software
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	720p, 1080p
Video compression formats	H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 1920 x 1080 (HD 1080)
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	101 mm
Height	56 mm
Weight	170 g
