Azbil HLS Series User Manual

7-8
No. Parts Name
1 Nut
2 Washer
3 Handwheel
4 Screw Shaft
5 Lock Nut
6 Bearing
7 Bearing Case
8 Cotter
9 Connector
10 Eyebolt
11 Nut
12 Through Bolt
13 Diaphragm Case (Bottom)
14 Coil Spring
15 Bearing
16 Bushing
17 Rod
18 Pointer
19 Lock Nut
20 Yoke
21 Stem Connector
22 Stem Connector Bolt
23 Housing
24 Piston Plate
25 O-Ring
26 Bolt
27 Bearing Retainer
28 Seal Washer
29 Bolt
30 Diaphragm Case (Top)
31 Diaphragm
32 Diaphragm Plate
33 Bolt
34 Nut
35 Stopper
36 Bolt
37 Spring Plate
38 Washer
39 Dust Seal
40 Truss Screw, Speed Nut
41 Scale
42 Nameplate
43 Drive Screw
44 O-Ring
45 Seal Washer
46 Keybolt
47 Setscrew
48 Setscrew
49 Spring Washer
50 Diaphragm Retainer

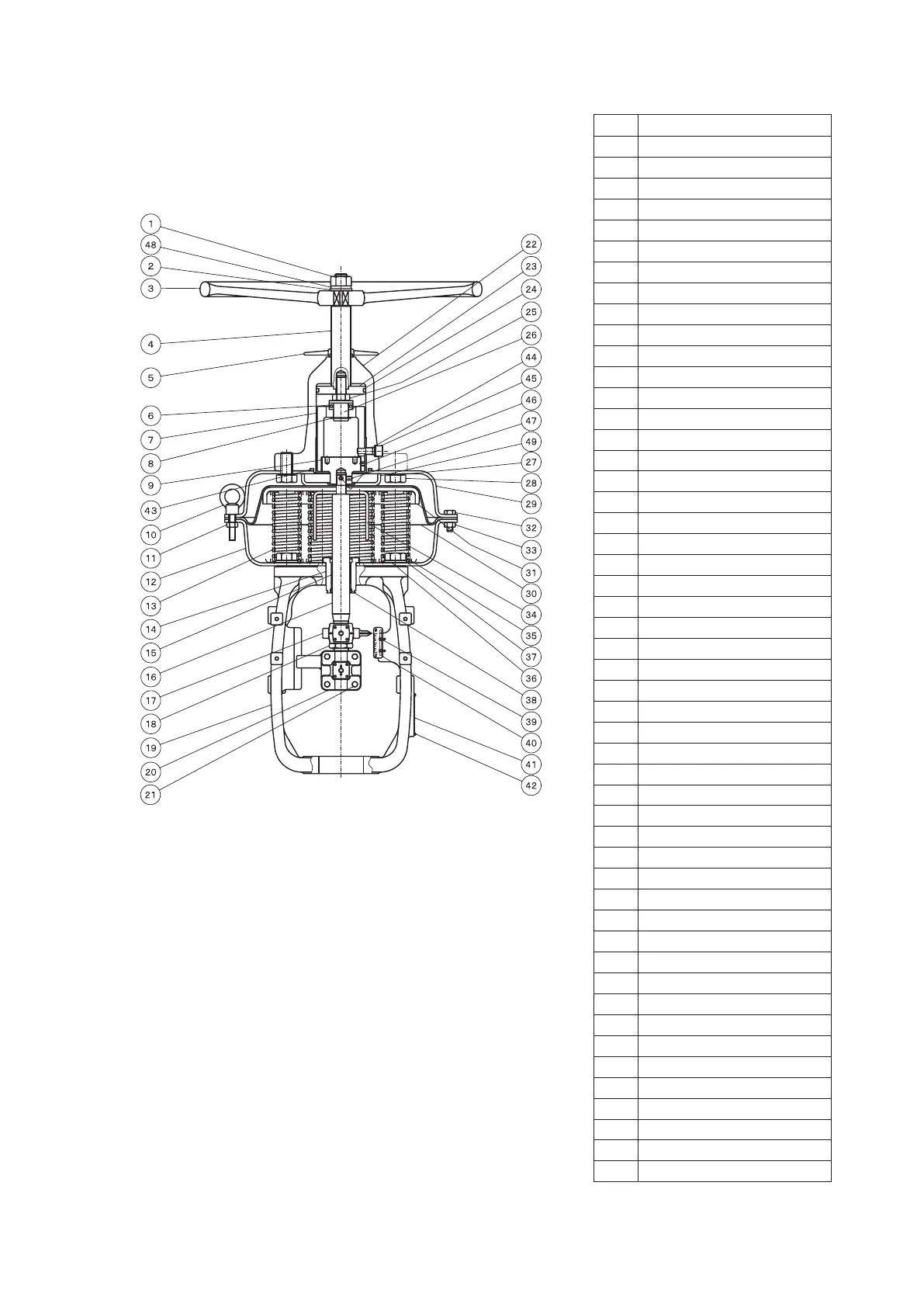

Figure 7-6 Model HA4 Actuator with Top Handwheel (Direct Action Type)
