Azbil HLS Series User Manual

7-9
No. Parts Name
1 Nut
2 Washer
3 Handwheel
4 Lock Nut
5 Screw Shaft
6 Bearing Case
7 Cap
8 Diaphragm Case (Top)
9 Eyebolt
10 Nut
11 Through Bolt
12 Diaphragm
13 Diaphragm Case (Bottom)
14 Stopper
15 Connector
16 Diaphragm Retainer
17 Bearing
18 Bushing
19 Yoke
20 Rod
21 Pointer
22 Stem Connector
23 Stem Connector Bolt
24 Housing
25 Washer
26 Bearing
27 Bearing
28 Cotter Pin
29 Seal Washer
30 Bolt
31 Coil Spring
32 Setscrew
33 Bolt
34 Nut
35 Setscrew
36 Diaphragm Plate
37 Spring Plate
38 Bolt
39 Seal Washer
40 Packing
41 Dust Seal
42 Truss Screw, Speed Nut
43 Scale
44 Lock Nut
45 Nameplate
46 Drive Screw
47 Keybolt
48 Spring Washer
49 O-Ring

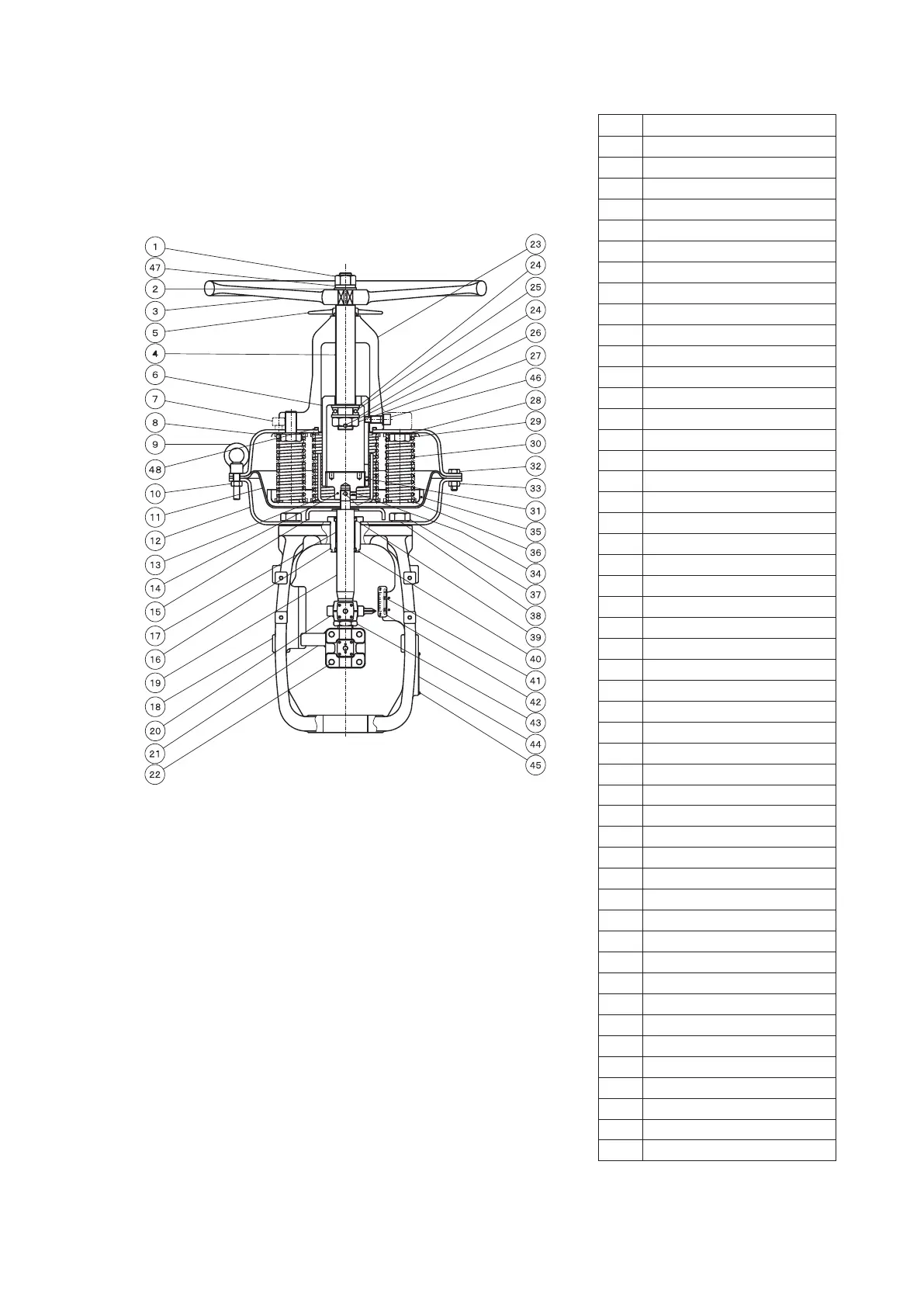

Figure 7-7 Model HA4 Actuator with Top Handwheel (Reverse Action Type)
