Model MTG11A/18A/11B/18B/14C System configuration and structure Azbil Corporation
1-12 Model MTG11A/18A, MTG11B/18B, MTG14C
Detector 2: Wafer type
Description
The wafer type detector has a function and structure as follows:
Detects an electromagnetic force signal proportional to the flow rate of the fluid
passing through the detector.
Houses the electrodes, both electrodes are installed in a horizontal position.
Names of various parts
The structure and names of various parts of the detector are shown.
Names and functions of various parts
The following table describes the various parts of the detector.

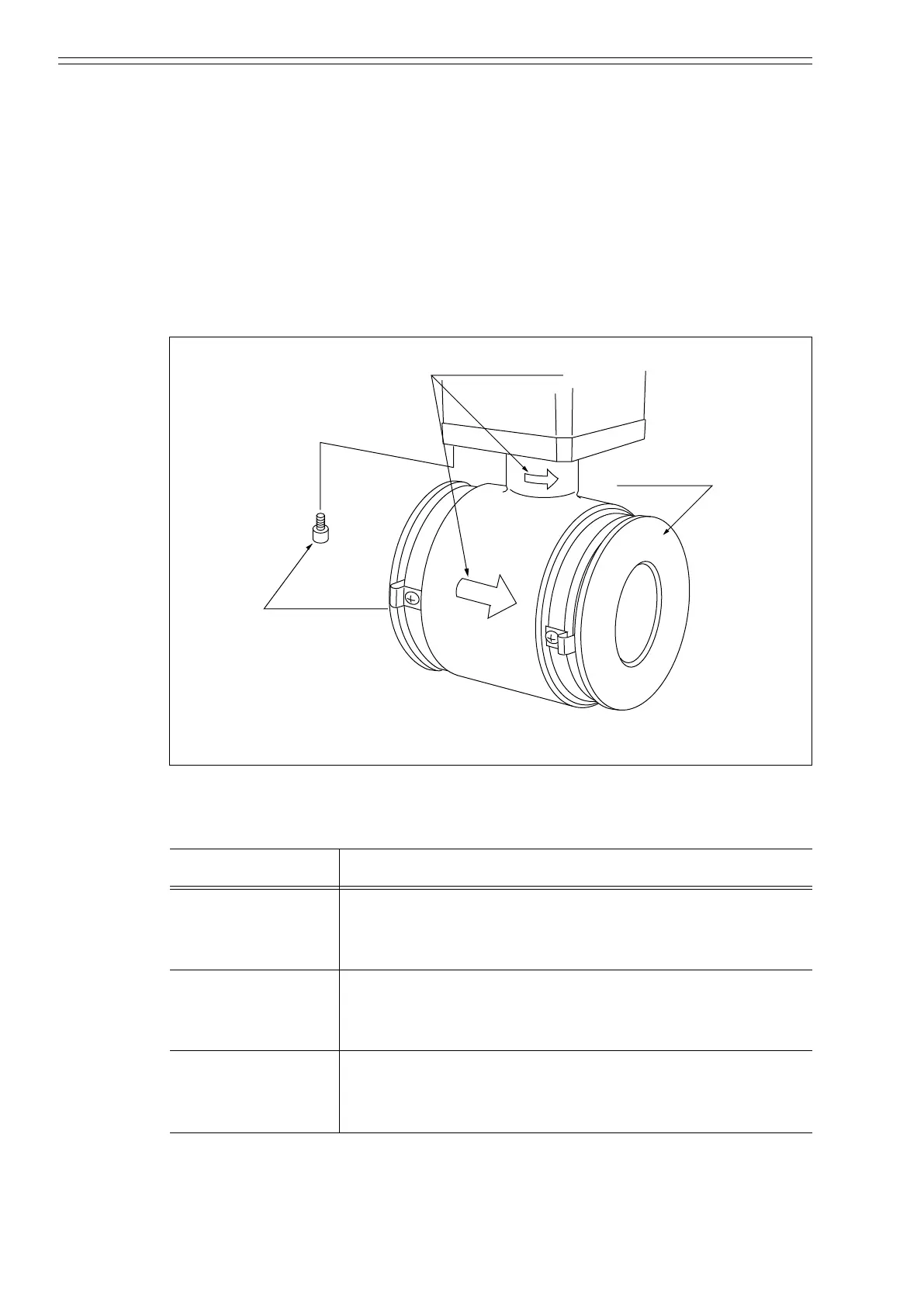

Figure 1-8 Detector details (wafer-type detector)
Name Description
Flow direction
mark
Indicates the flow direction of the fluid.
Install the detector so that the direction of fluid flow and
this mark meet with each other.
Grounding ring Keeps reference voltage to zero by grounding the unit.
The grounding ring material varies depending on the
corrosion characteristics of the fluid to be measured.
Mounting screw
(M5)
Fixes the detector and converter.
When these screws are removed, the detector and the
converter orientation can be changed.
Flow direction mark
Grounding ring
Mounting screw
(M5) (4 places)
CM2-MTG300-2001.book 12 ペー
