3 - 57
Needle-presser module
Modules
Assembly

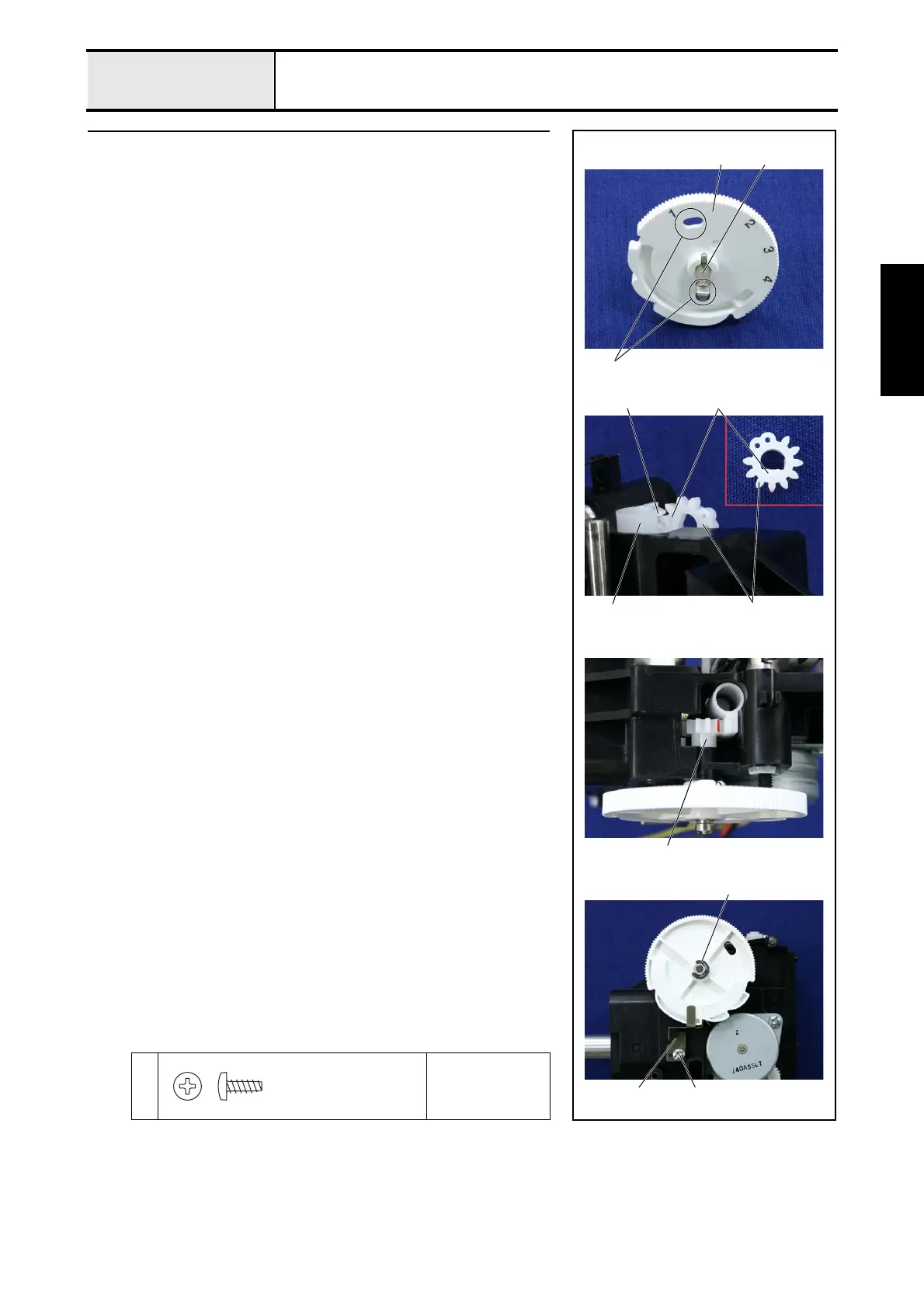

30 Presser dial attachment
1. Attach the presser dial shaft assy 1 to the presser dial 2, and attach the
retaining ring E4.
*Key point
• See the figure to the right for the presser dial shaft assy 1 D
cut 3 and presser dial 2 hole 3.
2. Attach the presser dial gear 4.
*Key point
• Align the presser dial gear 4 match mark 5 and the first
indentation 7 from the top in the tension spring receiving gear
6 .
3. Attach the presser dial assy.
*Key point
• Align the presser dial shaft assy 1 D cut 3 and the presser
dial gear 4 D cut.
4. Attach the spring plate 8 to the upper unit holder using the screw 1.
1
Torque
0.78 – 1.18 N·m
12
3
7
64
5
4
Retaining ring E4
18
Taptite, Bind B
M3X8
To Next Page
