3 - 64
Modules
Feed module

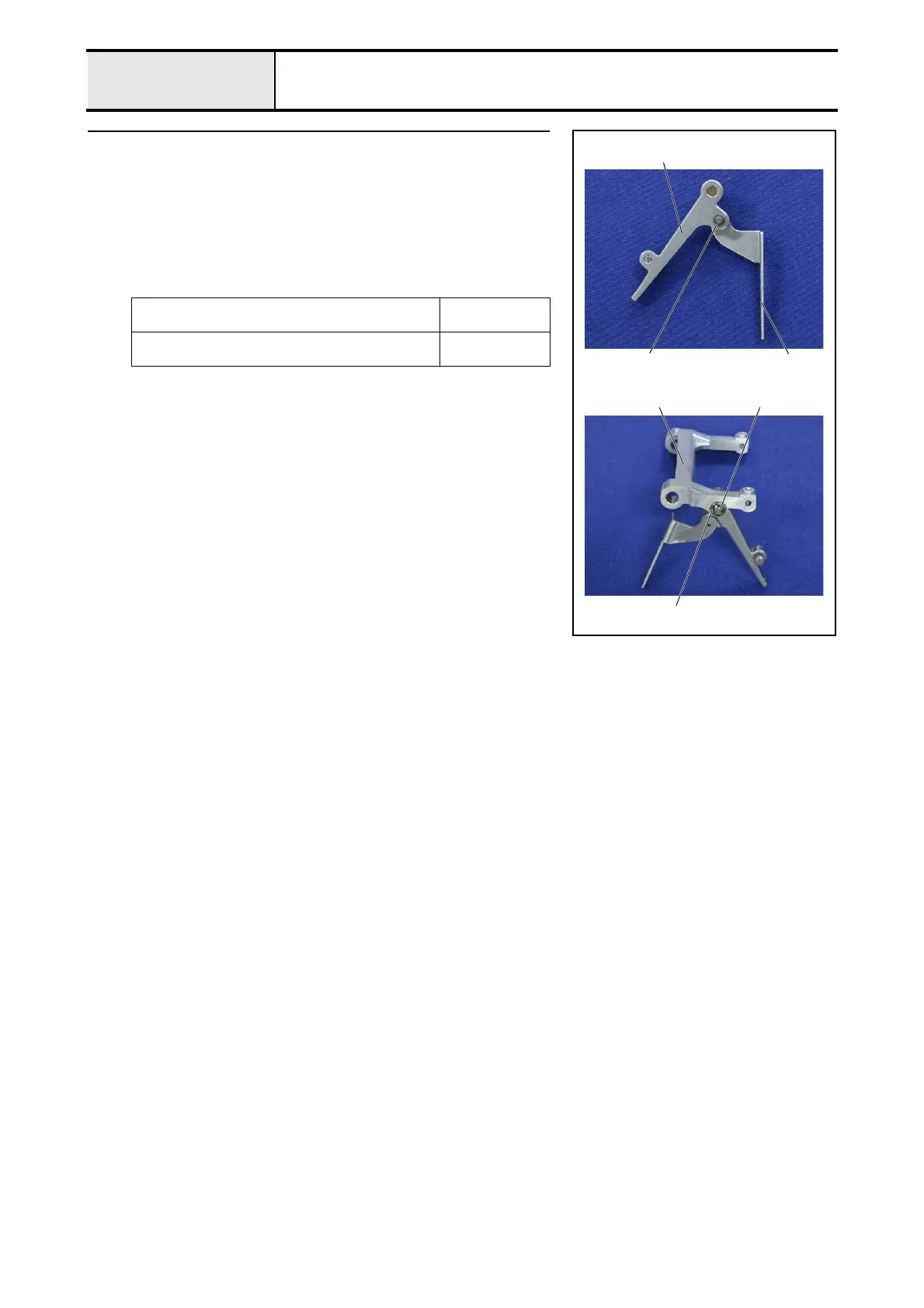

8 Assembling the feed arm assy
1. Attach the feed arm B assy 1 to the feed supporting plate assy 2, and
attach the retaining ring E2.
2. Lubricate the feed supporting plate assy 2 shaft with 1 – 2 drops of FBK
OIL RO 100.
3. Attach the feed arm B assy 1 and the polyester slider 3 to the feed arm A
4, and the attach retaining ring E3.
4. Lubricate the feed arm B assy 1 with 1 – 2 drops of FBK OIL RO 100.
Lubricate the feed supporting plate assy. shaft with
FBK OIL RO 100
1 – 2 drops
XC8388***
Lubricate the feed arm B assy. with FBK OIL RO 100
1 – 2 drops
XC8388***
1
2
Retaining ring E2
Retaining ring E3
3
4
To Next Page
