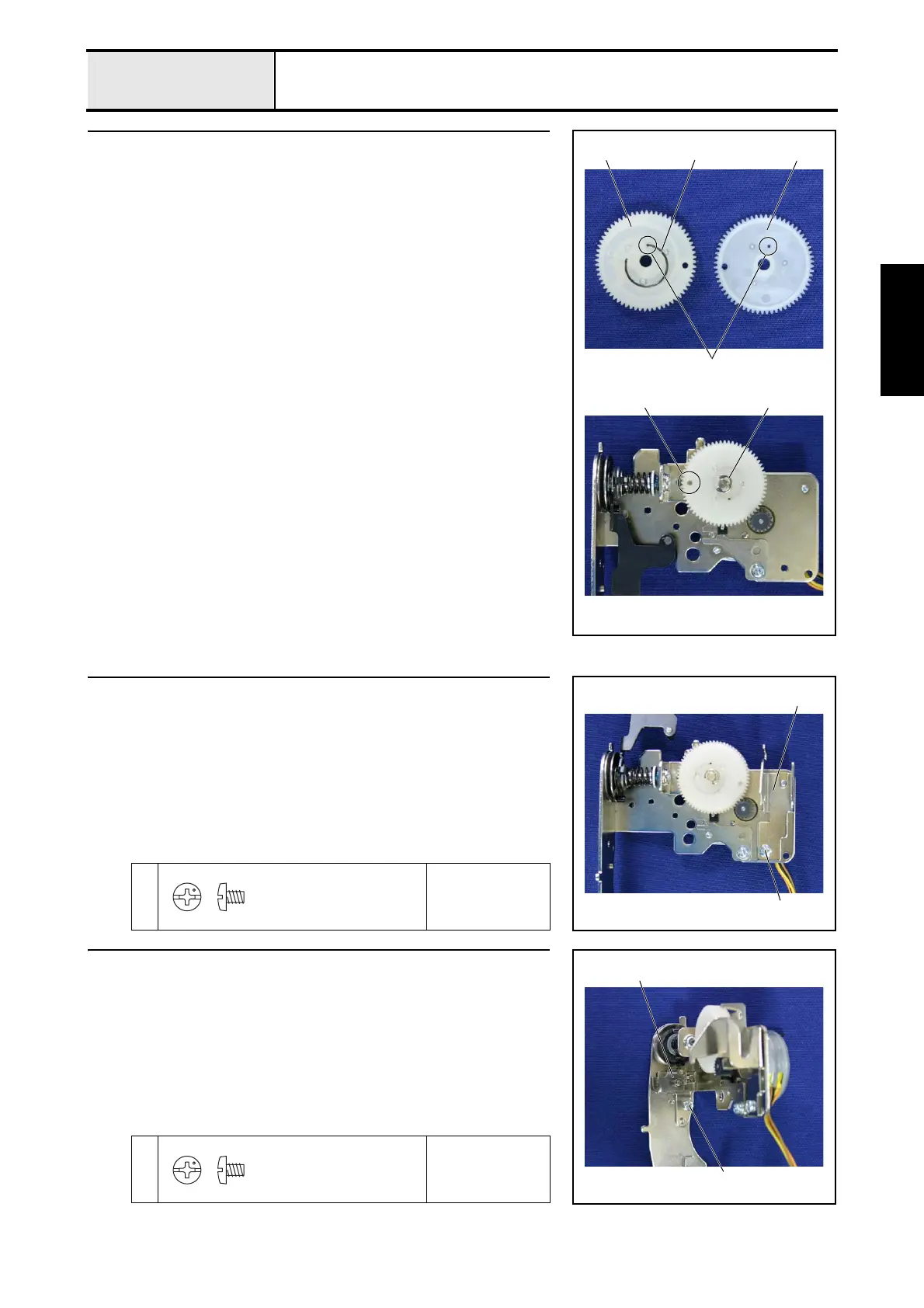

3 - 19
Thread tension mechanism
Main unit
Assembly
6 Thread tension gear attachment
1. Attach the thread tension gear 1, spring 2 and thread tension gear cover
3 and attach the retaining washer E3.
*Key point
• Attach the spring 2 to the small holes 4 in the thread tension
gear 1 and the thread tension gear cover 3.
• Turn the thread tension gear cover 3 clockwise until the large
holes 5 in the thread tension gear 1 and the thread tension
gear cover 3 are on top of each other, and attach the thread
tension gear assembly.
1 2 3
4
5 Retaining ring E3
7 Thread guide attachment
1. Attach the thread guide 1 using the screw 1.
1
Torque
0.78 – 1.18 N·m
1
1
Screw, Bind
M3X4
8 Plate assembly attachment
1. Attach the plate assembly 1 using the screw 1.
1
Torque
0.78 – 1.18 N·m
1
1
Screw, Bind
M3X4
To Next Page
