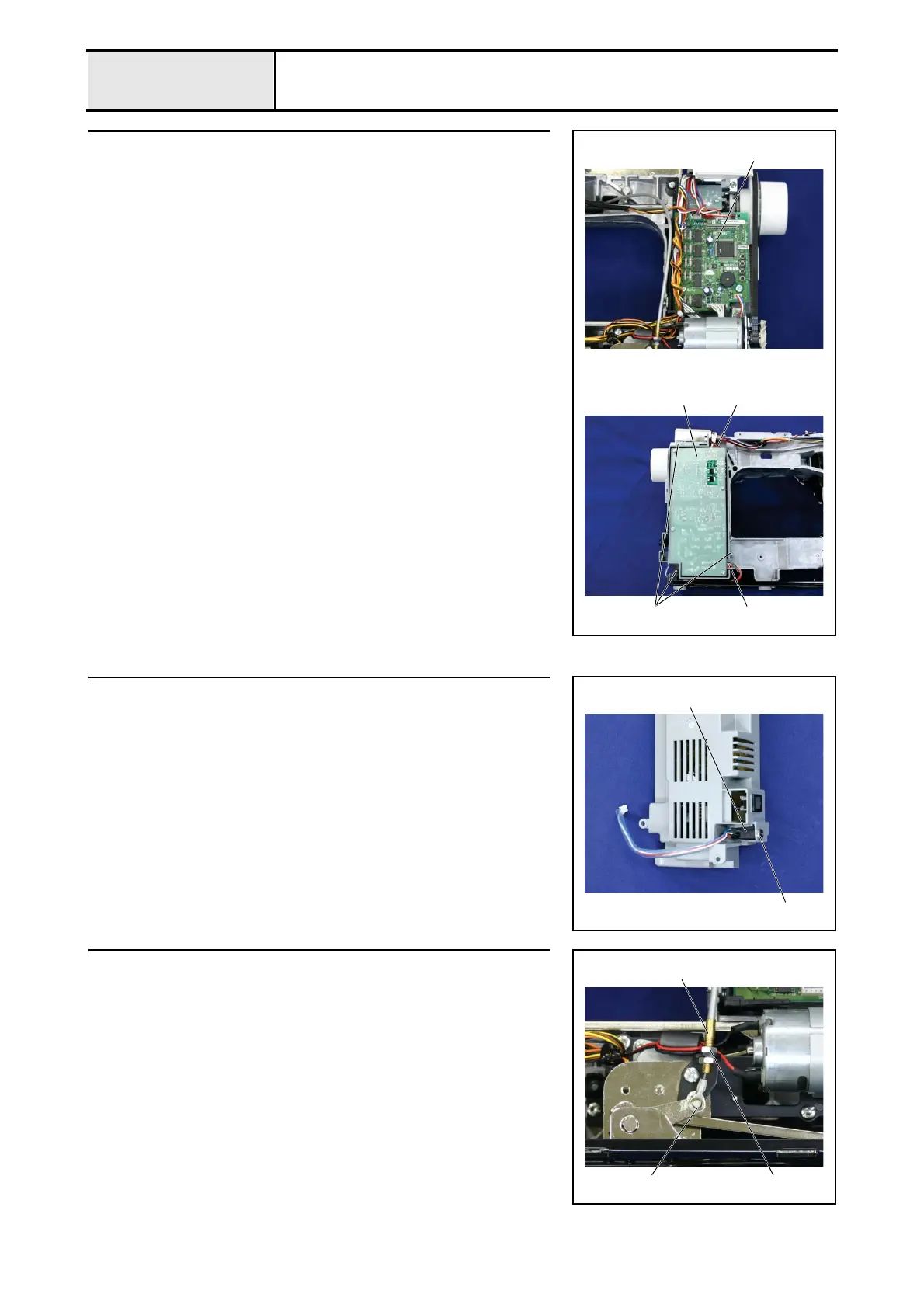

Electrical parts and motors
Main unit
1 Power supply unit F removal
1. Unplug all of the connectors on the main PCB assy. 1.
2. Remove the main motor connector 2.
3. Disconnect the connector 3 of the inlet assembly lead wire.
4. Remove the 3 screws 1, and remove the power supply unit F 4.
1
4
3
2
1
2 Assy. pin jack F removal
1. Remove the nut 1, and remove the assy. pin jack F 2.
2
1
3 Wire assy. removal
1. Remove retaining ring E3.
2. Loosen nut M8 1, and remove the wire assy. 2.
2
1
Retaining ring E3
To Next Page
