Feed module

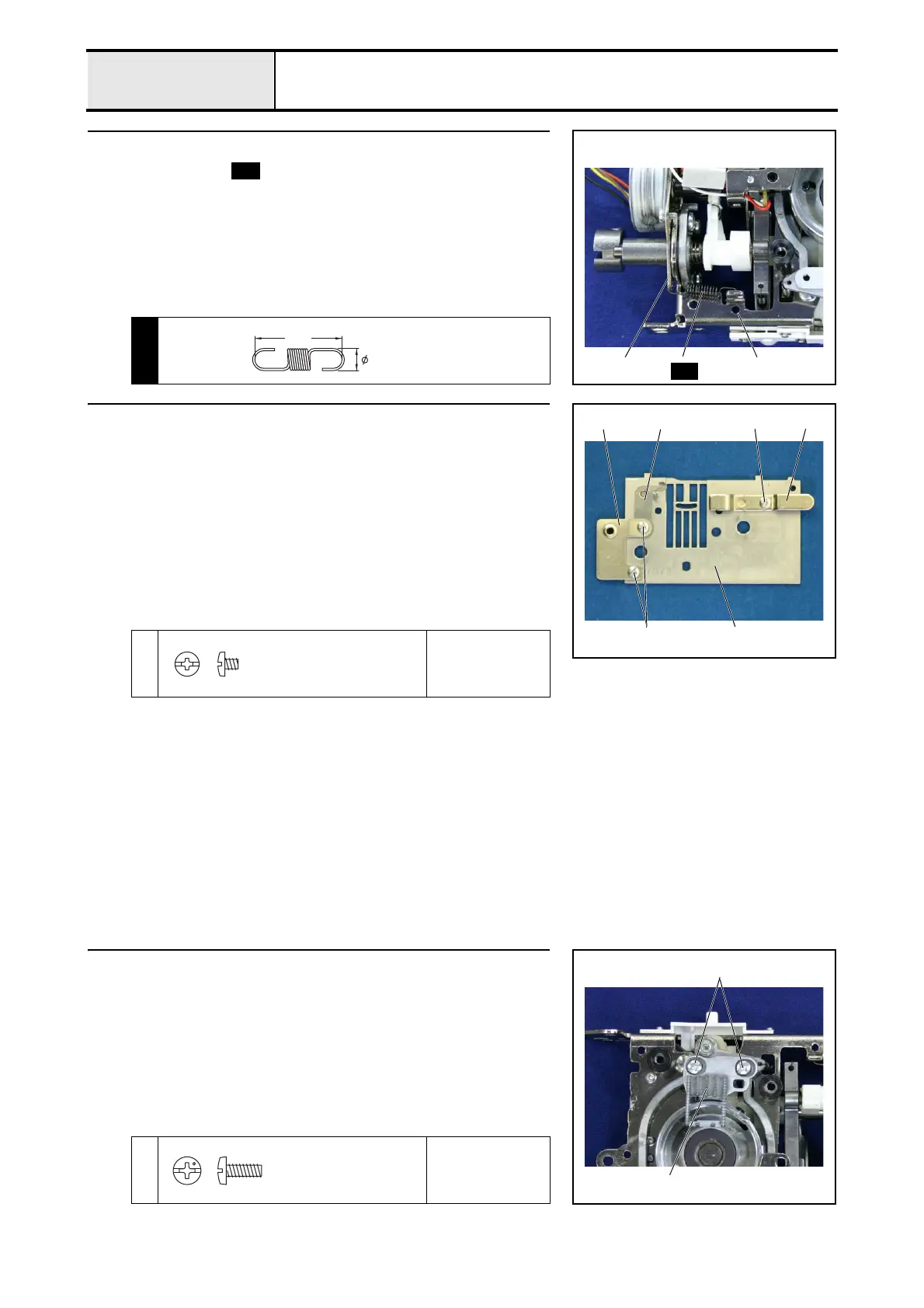

Modules
24 Spring attachment (for FPM holder assy.)
1. Attach the spring to the feed base 1 and FPM holder assy 2.
S16
S16
21
S16
19.8
5
SPRING
XC2538***
25 Needle plate A ASSY assembly
1. Attach the F gear stopper plate 1 to the rear of the needle plate A 2 with
the screw 1.
*Key point
• Engage the positioning tab on the stopper plate with the
positioning hole on the needle plate A 2.
2. Attach the stopper plate 3 and then the needle plate B support plate 4 to
the rear of needle plate A 2 with the 2 screws 2.
*Key point
• Engage the positioning tab on the stopper plate with the
positioning hole on needle plate A.
1
2
Torque
0.57 – 1.78 N·m
14
2
13
2
Screw, Bind
M2.6X3
26 Feed dog attachment
1. Attach the feed dog 1 and hand start screws the 2 screws 1.
(Fully tighten after 4 - 26 "Front/back, left/right position of feed dog
adjustment.")
1
Torque
0.78 – 1.18 N·m
1
1
Screw, Bind
M3X8
