Needle bar, presser mechanism / Upper shaft mechanism
Main unit

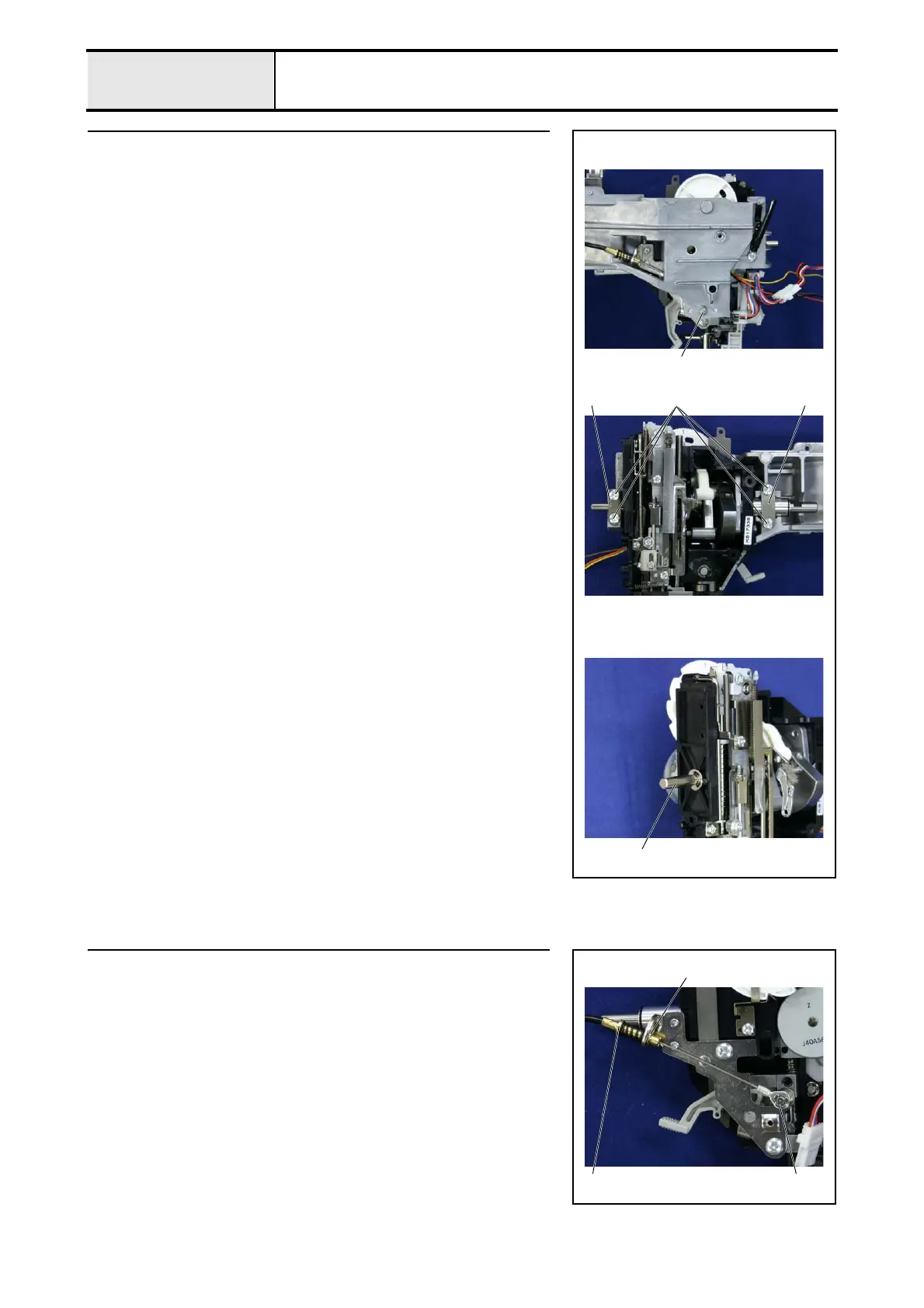

5 Needle-presser module removal
1. Remove the screw 1.
2. Remove the 4 screws 2, and detach the presser plate A 1 and the presser
plate B 2.
3. Remove the needle-presser module.
4. Detach the shaft 3 from the needle-presser module.
1
1
3
22
6 Wire assy. removal
1. Remove retaining ring E3.
2. Remove retaining ring E4, and remove the wire assy. 1.
Retaining ring E3
Retaining ring E4
1
