Bacharach 300 - 2 SET-UP; INITIAL START-UP AND ALIGNMENT; SENSOR CHECKS

MODEL 300 COMBUSTION ANALYZER
Instruction 24-9223 2-1
2 SET-UP
The charts and procedures in this section describe how to set-up the
Model 300 for combustion efficiency testing. If any difficulty is encoun-
tered while performing these procedures, please refer to Section 4 and/or
5 for assistance in resolving the problem.
Before using the Model 300 preform all the following that apply:
• AC Plug Installation • Initial Start-up and Alignment
• Printer Paper Installation • Sensor Checks
• Filter/Trap Installation • Optional Clock Setting
• Probe Connection • Optional Analyzer Configuration
Initial Start-up
Section 2.5
Flow Chart #2
Probe
Connection
Section 2.4
Filter/Trap
Installation
Section 2.3
Add
Printer Paper
Sections 2.2 & 5.6
Unit with
Optional Printer
AC Power
Installation
Section 2.1
Unit with
230 VAC Power

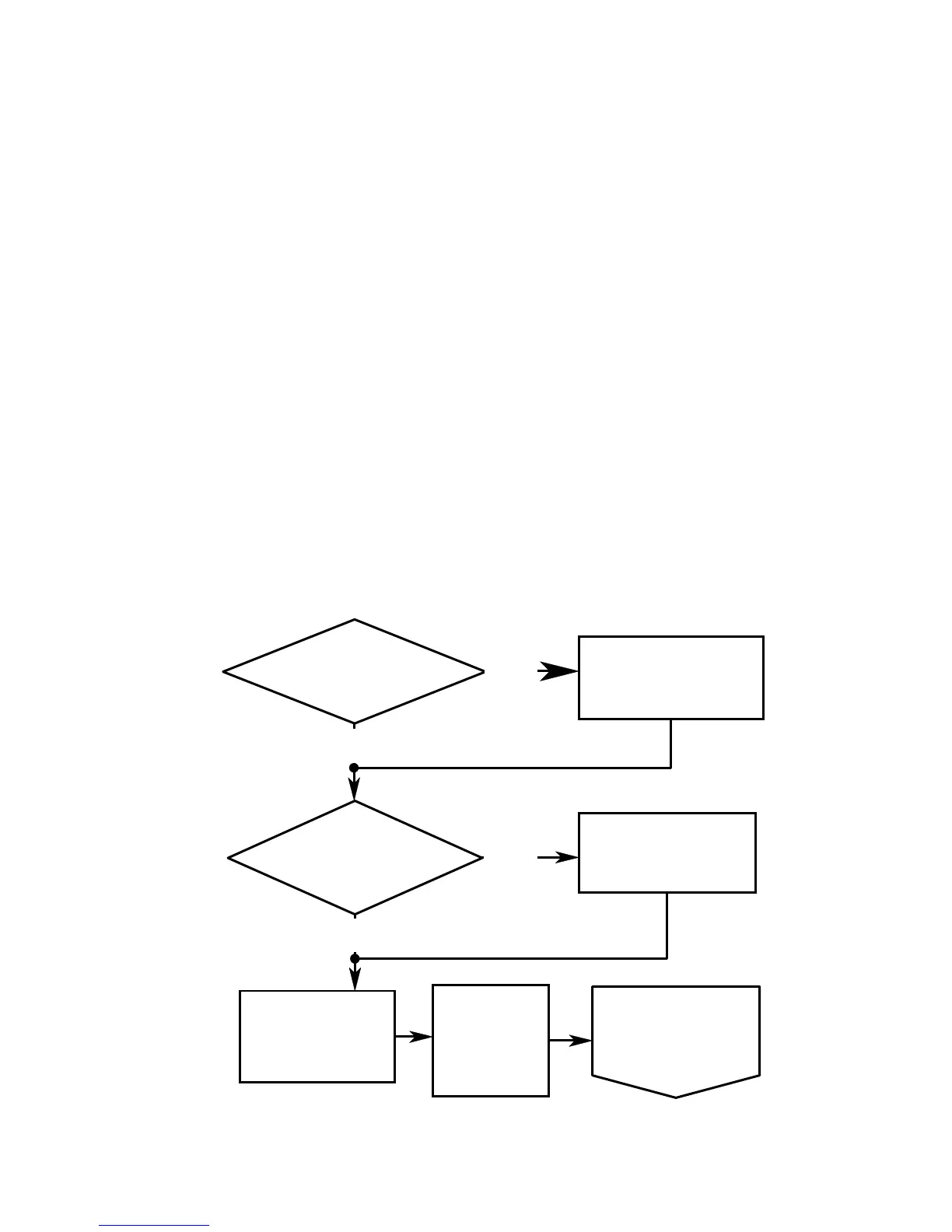

Flow Chart #1
SET-UP
Sections 2.1 - 2.4
YES
NO
NO
YES
