MODEL 300 COMBUSTION ANALYZER
Instruction 24-9223 2-3
2.4 PROBE CONNECTION
See Fig. 2-2. To connect the probe, simply attach its air tubing to the
filter/trap, and plug its thermocouple connector into the receptacle at the
rear of analyzer’s control panel, noting the polarity of the connector.

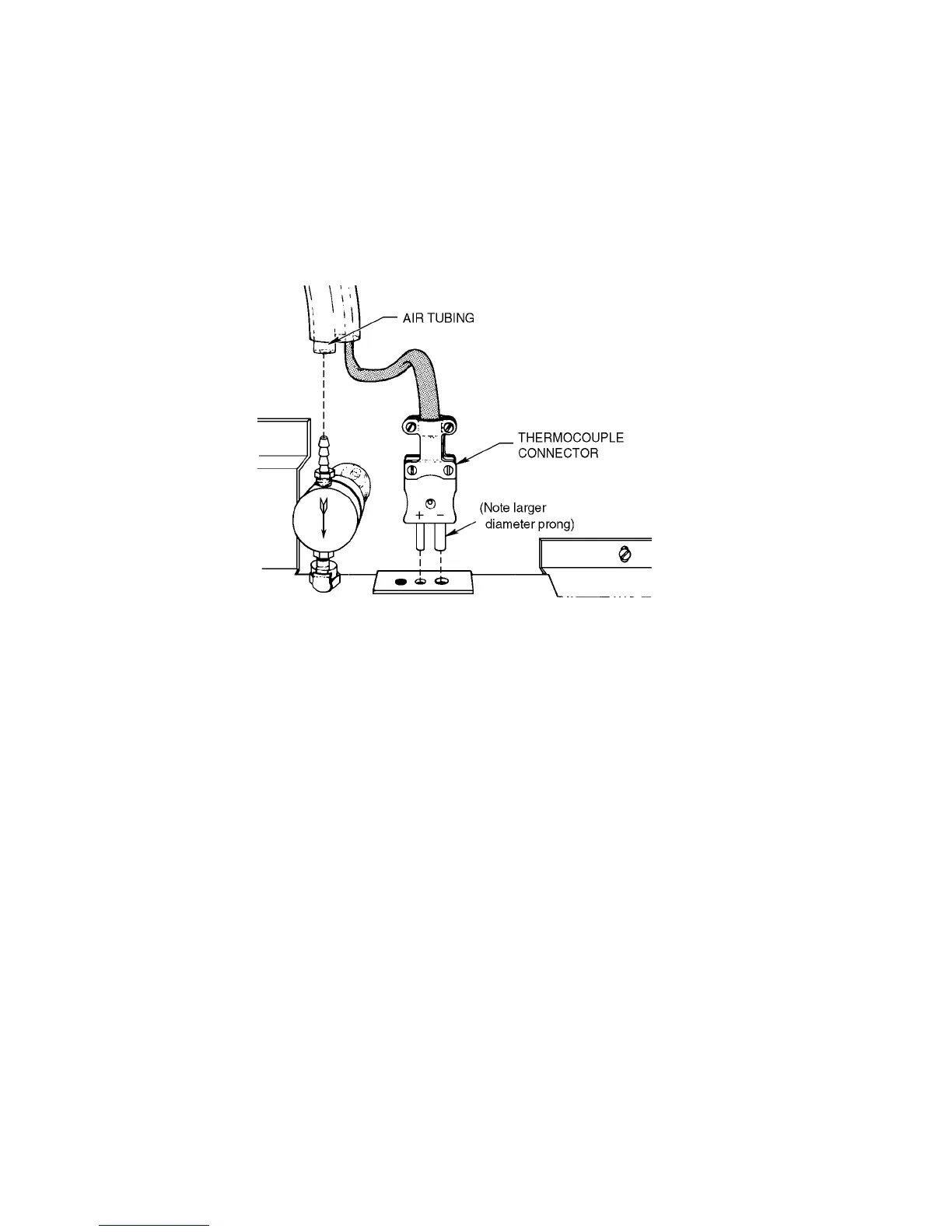

Figure 2-2. Probe Installation
