MODEL 300 COMBUSTION ANALYZER
2-2 Instruction 24-9223
2.1 230 VAC PLUG INSTALLATION
Due to the many different AC receptacles available for 230 VAC, a wall
plug is not supplied on the instrument’s 230 VAC power supply. An IEC
receptacle is provided for the input. An IEC 380 cord set must be ob-
tained, with the proper type of AC wall outlet, for the country where the
instrument is to be used.
2.2 PRINTER PAPER INSTALLATION
Before turning on the analyzer, ensure that the printer has a roll of
printer paper installed (Refer to Section 5.6).
2.3 FILTER/TRAP INSTALLATION
See Fig. 2-1. Press the latch on the filter/trap socket, located at the rear of
the analyzer’s control panel; then insert the O-ring end of the filter/trap
into the socket and release the latch.
NOTE: The bowl must be facing toward the bottom of
case as shown to properly collect water.

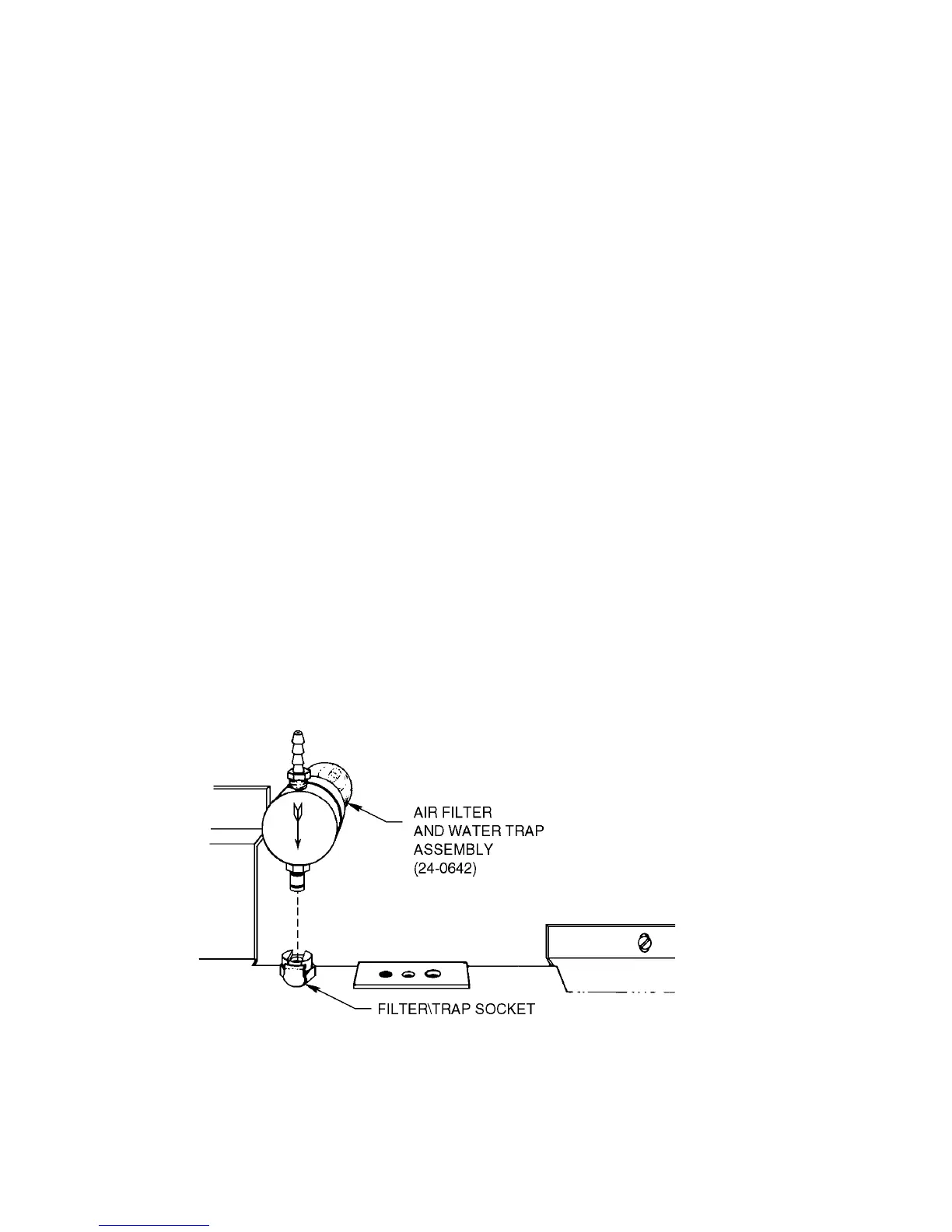

Figure 2-1. Filter/Trap Installation
