Bacharach 300 - Page 38

MODEL 300 COMBUSTION ANALYZER
3-8 Instruction 24-9223
Figure 3-5. Typical Printouts

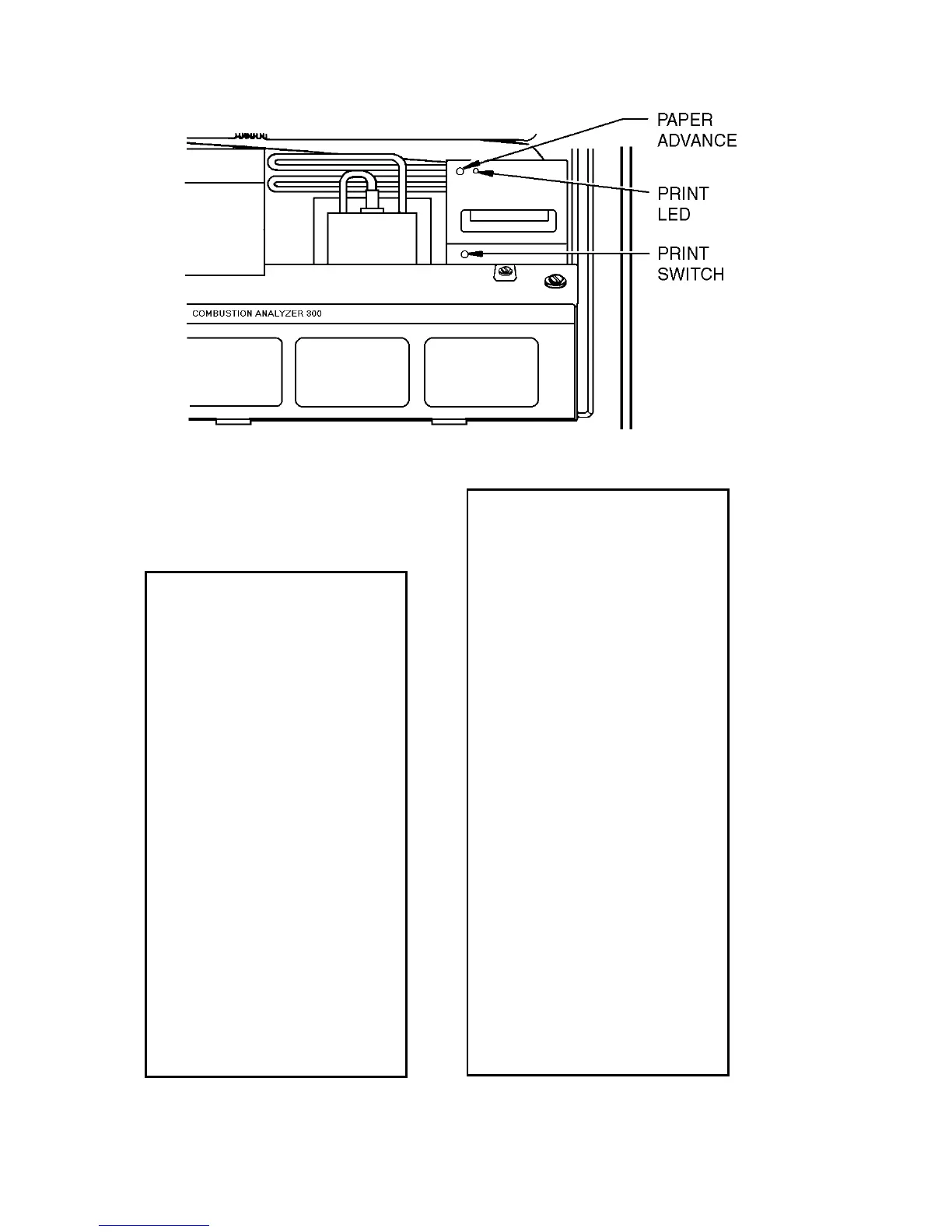

Figure 3-4. Printer Controls
BACHARACH
MODEL CA3ØØNSX
* * * * * * * * * * * *
COMBUSTION ANALYZER
ID: ________________
SER. NO: VD0511
DATE: 11/16/95
TIME: 09:02
FUEL: NATURAL GAS
PRIMRY TEMP <F>: 75
STACK TEMP <F>: 76
% OXYGEN: 2Ø.9
% EXCESS AIR: 276
% CARBON -
DIOXIDE: .Ø
PPM CARBON -
MONOXIDE: Ø
PPM NOX: -1
PPM SULFUR -
DIOXIDE: -1
% EFFICIENCY: 99.9
% STACK LOSS: .1
TEST PERFORMED BY:
________________________
COMMENTS ....
BACHARACH MODEL 3ØØ
* * * * * * * * * * * *
COMBUSTION ANALYZER
ID: ________________
DATE: ________________
TIME: ________________
FUEL: NAT.GAS
PRIMRY TEMP <F>: 77
STACK TEMP <F>: 416
% OXYGEN: 8.3
% EXCESS AIR: 6Ø.Ø
% CARBON -
DIOXIDE: 7.1
PPM CARBON -
MONOXIDE: Ø
% EFFICIENCY: 88.4
% STACK LOSS: 11.6
TEST PERFORMED BY:
________________________
COMMENTS ....
