MODEL 300 COMBUSTION ANALYZER
Instruction 24-9223 4-13

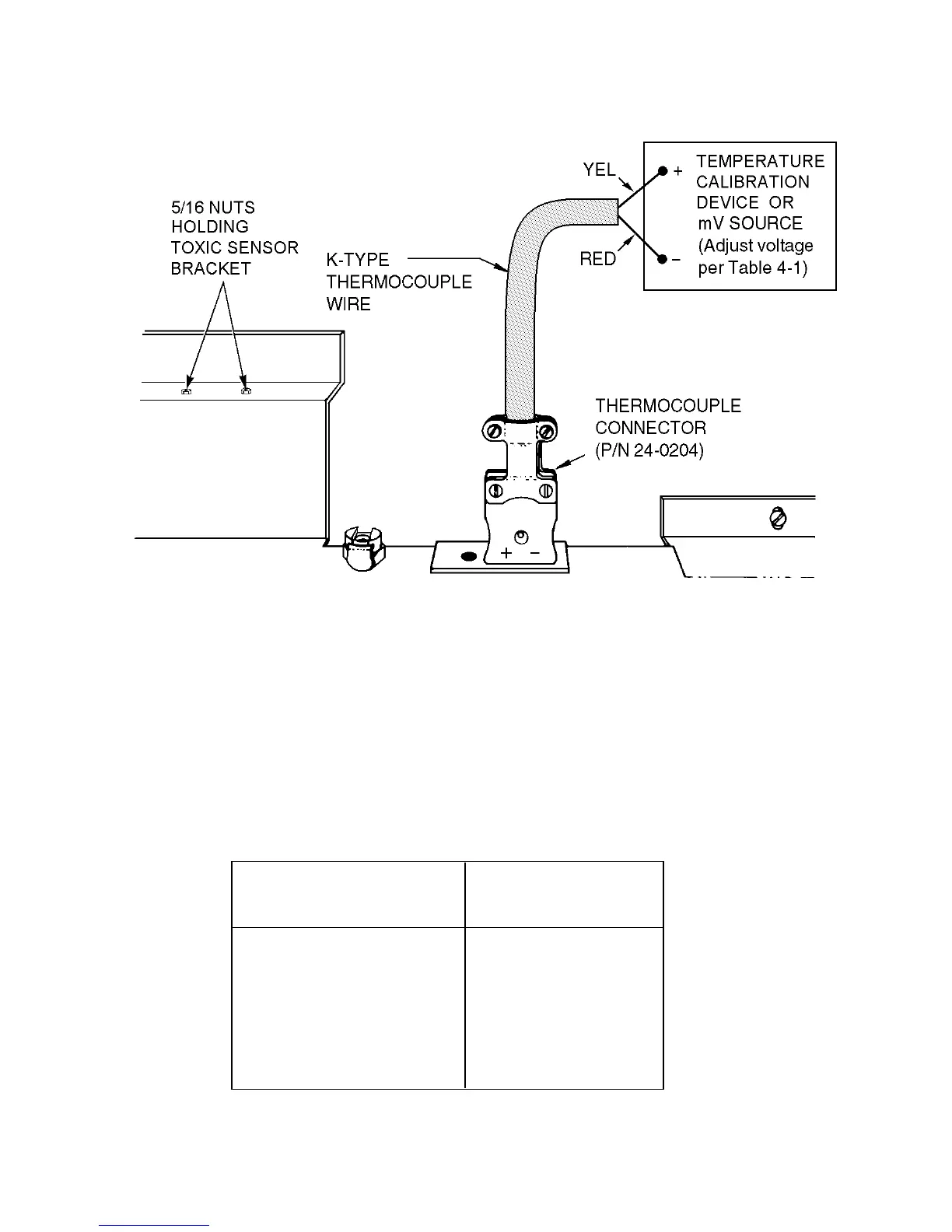

Figure 4-9. High-Temperature Range
Thermocouple Calibration Setup
TABLE 4-1.
MV LEVEL VS. AMBIENT TEMPERATURE FOR
THERMOCOUPLE CALIBRATION @ 1700°F (927°C)
Ambient Temp mV
°F (°C) Applied
60 (16) 37.8
70 (21) 37.5
80 (27) 37.3
90 (32) 37.1
100 (38) 36.9
