MODEL 300 COMBUSTION ANALYZER
5-16 Instruction 24-9223
3. See Fig. 5-9. To enable or turn on a function, set its corresponding
switch to ON. Note, however, the language and baud rate settings
require the setting of two switches.
4. After setting switches, replace control panel.

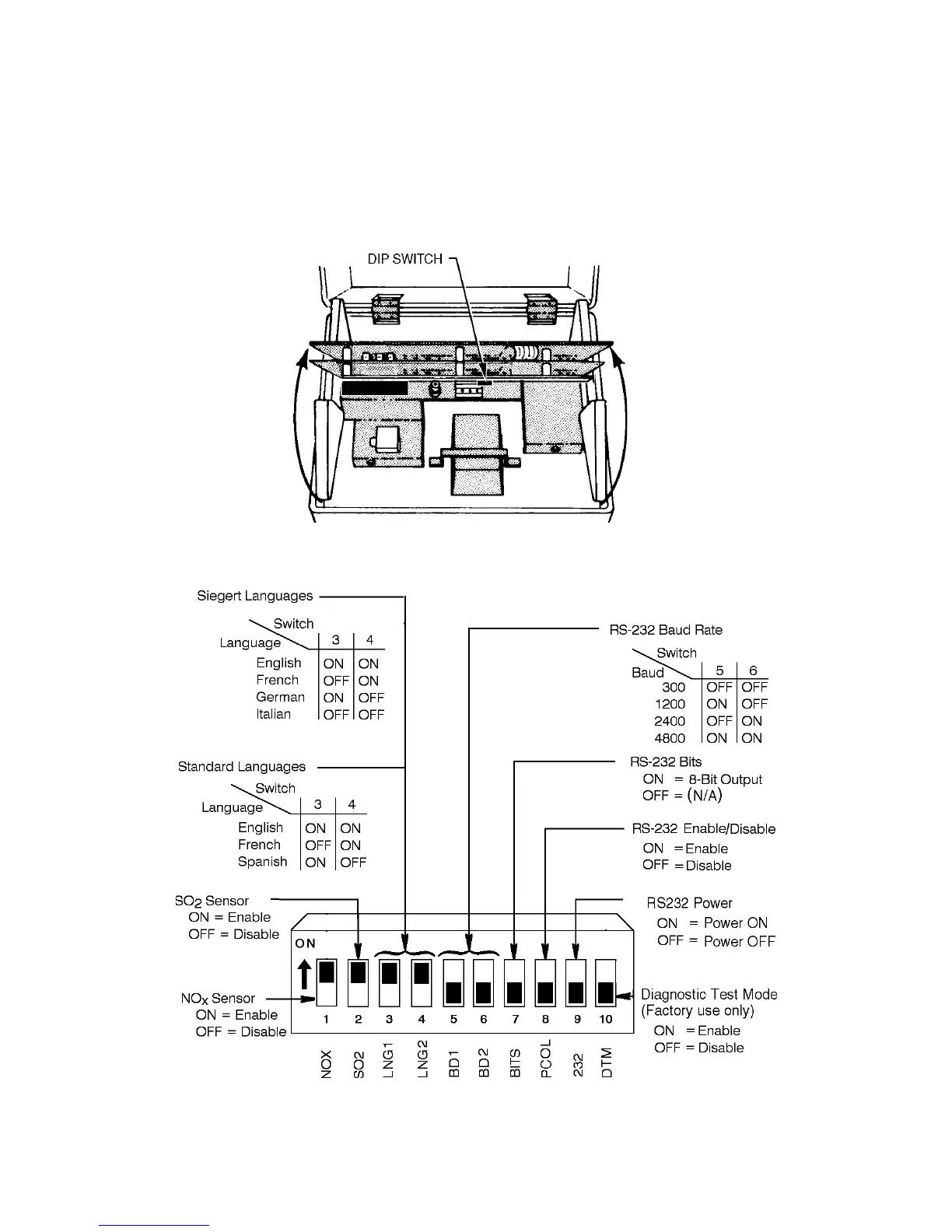

Figure 5-9. Optional DIP Switch Settings
Figure 5-8. Optional DIP Switch Location
