Section 2. Setup
2.1. Connecting the Probe and Thermocouple

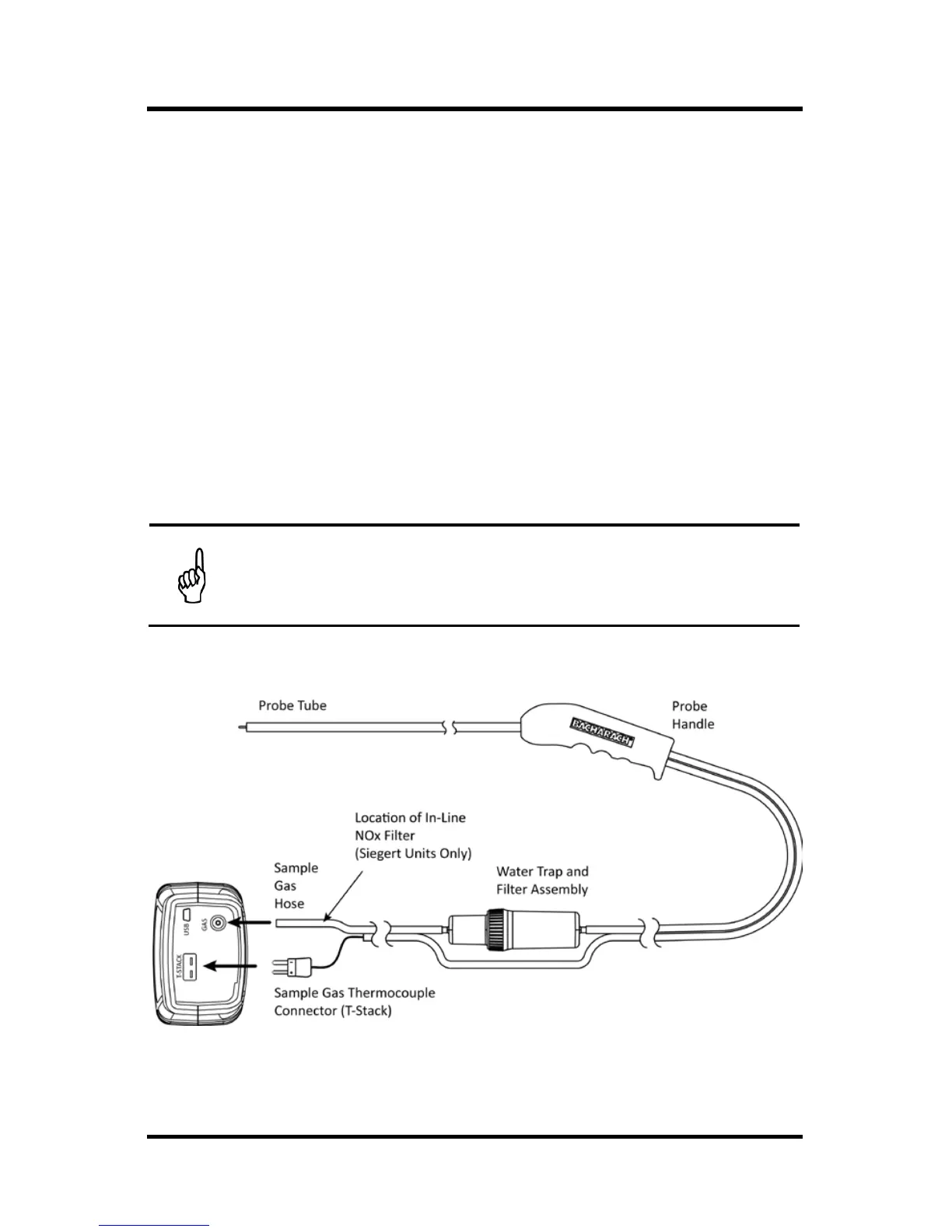

A rigid stainless steel probe with handle is connected to a flexible hose with an
integral water-trap/filter used to draw a gas sample into the analyzer from the
room, grilles, diffusers, and furnace flues.
1. Inspect the flue-gas hose for cracks. If a hose is defective, replace the
entire probe assembly.
2. Before using the analyzer, check that the water trap/filter is clean and dry.
If necessary, dry out the trap and replace the filter element.
3. Push the probe’s “sample gas” tubing onto the GAS inlet connector.
4. Push the probe’s thermocouple into the T-STACK connector on the
instrument noting the orientation.
IMPORTANT: The T-STACK connector tabs are keyed to fit into the
