OPERATION
5
1. To let the implement float along
contour of the ground, turn the
rectangular steel plate to the verti-
cal position.
2. To secure the implement, turn the
rectangular steel plate to the hori-
zontal position.
ADJUSTMENT OF VERTICAL
HEIGHT

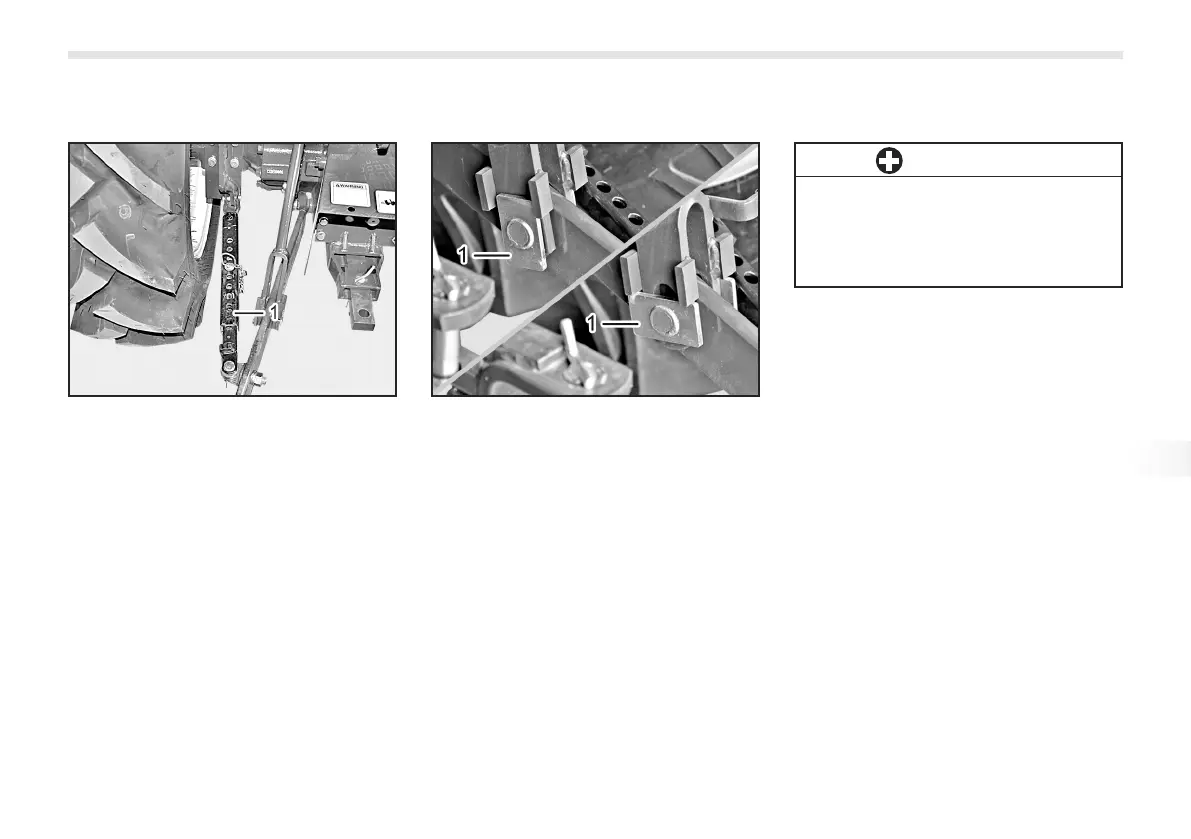

(1) Rectangular steel plate
ADJUSTMENT OF CHECK BAR
1. For implements such as a plow
and disc harrow, adjust the length
so that it can be moved for 2 in.
- 2.5 in. (5 - 6 cm
) sideways.
2. For implements such as a rotary
tiller and mower, adjust the length
so that it cannot be swayed side-
ways.
(1) Check bar
IMPORTANT
•
Do not extend the center link
excessively out of the lim-
it. The center link's body or
thread can be damaged.
