OPERATION DESCRIPTION
4

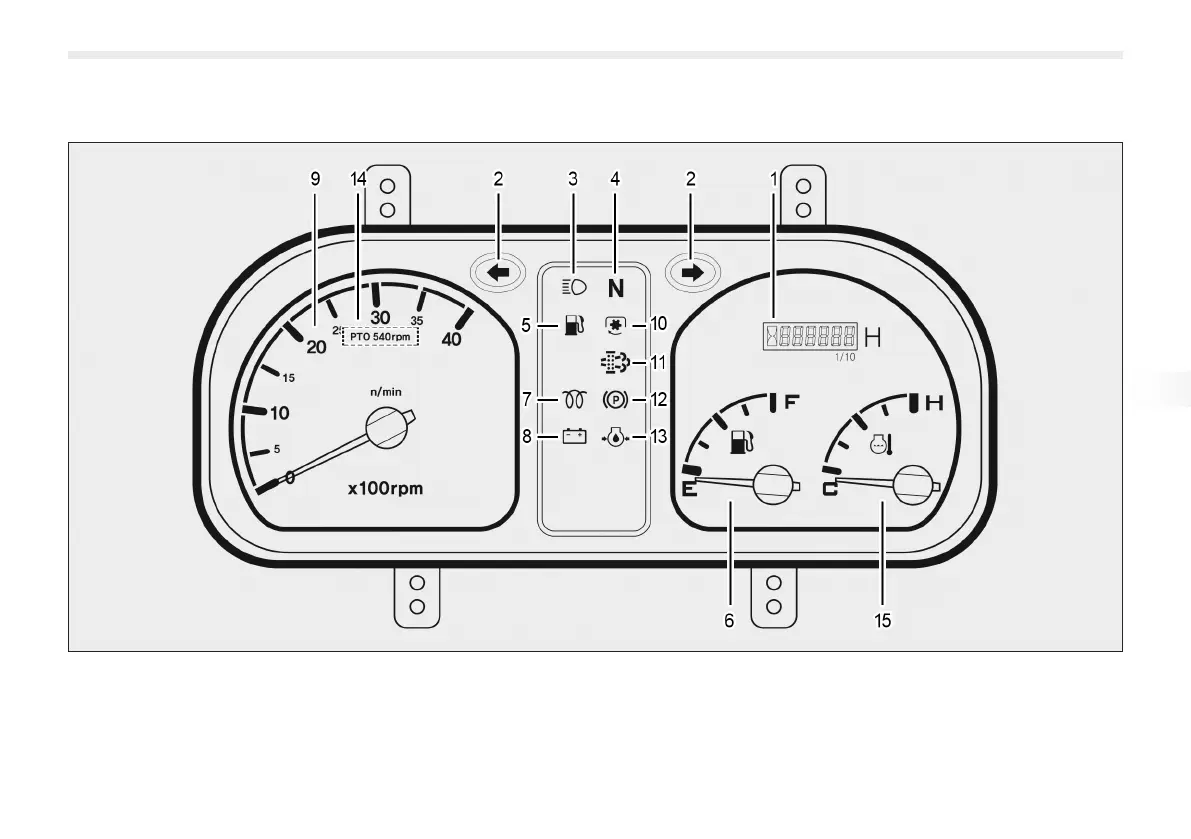

INSTRUMENT PANEL
(1) Hour Meter
(2) Turn Signal Indicator
(3) High Beam Indicator
(4) Neutral
(5) Fuel Warning Lamp
(6) Fuel Gauge
(7) Preheat Indicator
(8) Charge Warning Lamp
(9) Tachometer
(10) PTO Indicator
(11) DPF Indicator
(12) Parking Brake (Brake) Indicator
(13) Engine Oil Pressure Lamp
(14) PTO Rotating Position
(15) Coolant Temperature Gauge
