Bad Boy 4035CH 2021 - Tachometer; Hour Meter; Coolant Temperature Gauge

4
-
15
OPERATION DESCRIPTION
4
COOLANT TEMPERATURE
GAUGE
This coolant temperature gauge indi-
cates the engine coolant temperature
after the ignition switch is turned to
the "ON" position. If the needle reads
the red area, immediately stop work-
ing and then inspect the tractor.

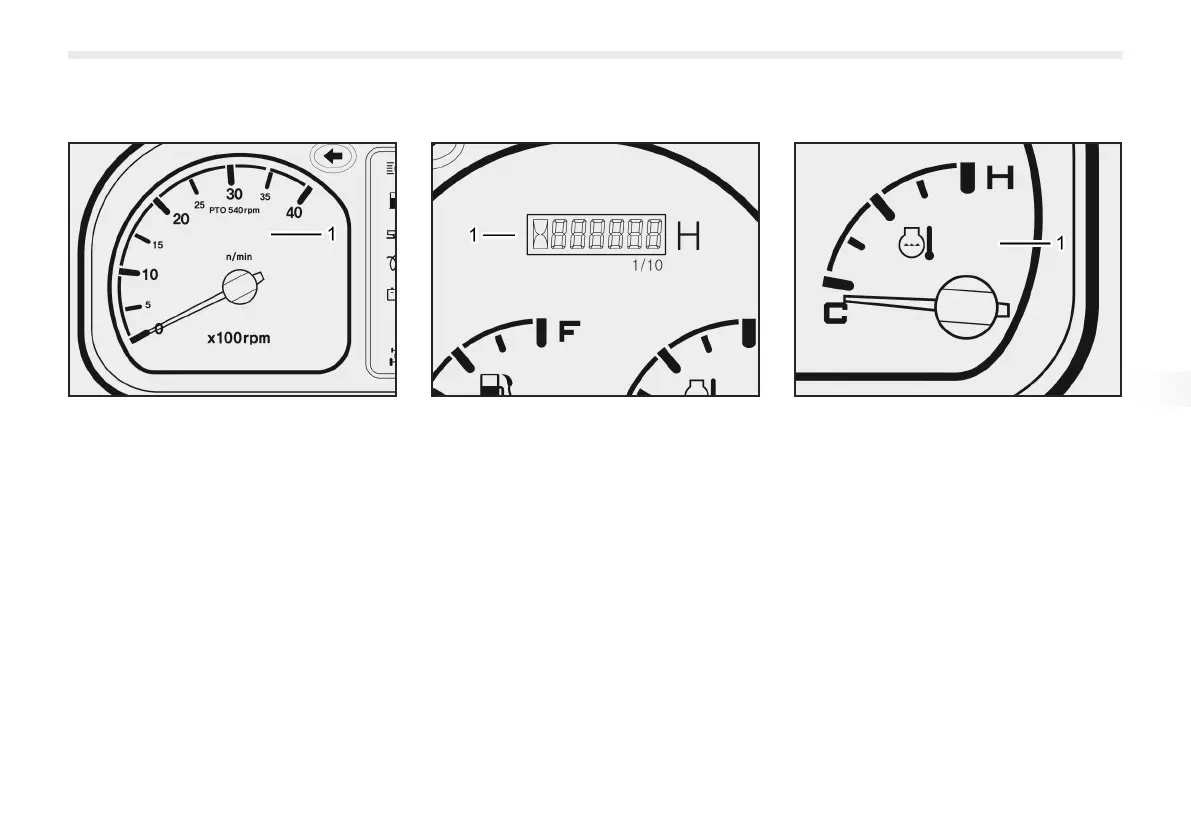

(1) Coolant Temperature Gauge
TACHOMETER HOUR METER
The tachometer indicates the engine
rpm.
It indicates the tractor’s running
hours. By multiplying the digit in the
far right position by 6, you will get the
time in minute.
(1) Tachometer (1) Engine Hour Meter
