WHEEL AND AXLE
If the wheel or axle is loosened, tighten
to the specied torque.
1. Drive the tractor about 110 yd.
(100 m) and tighten it to the
specified torque.
2. Inspect the wheel and axle every
10 hours of engine run or every 3
hours of working.
3. Inspect all wheels and axles fre-
quently and securely tighten if nec-
essary.

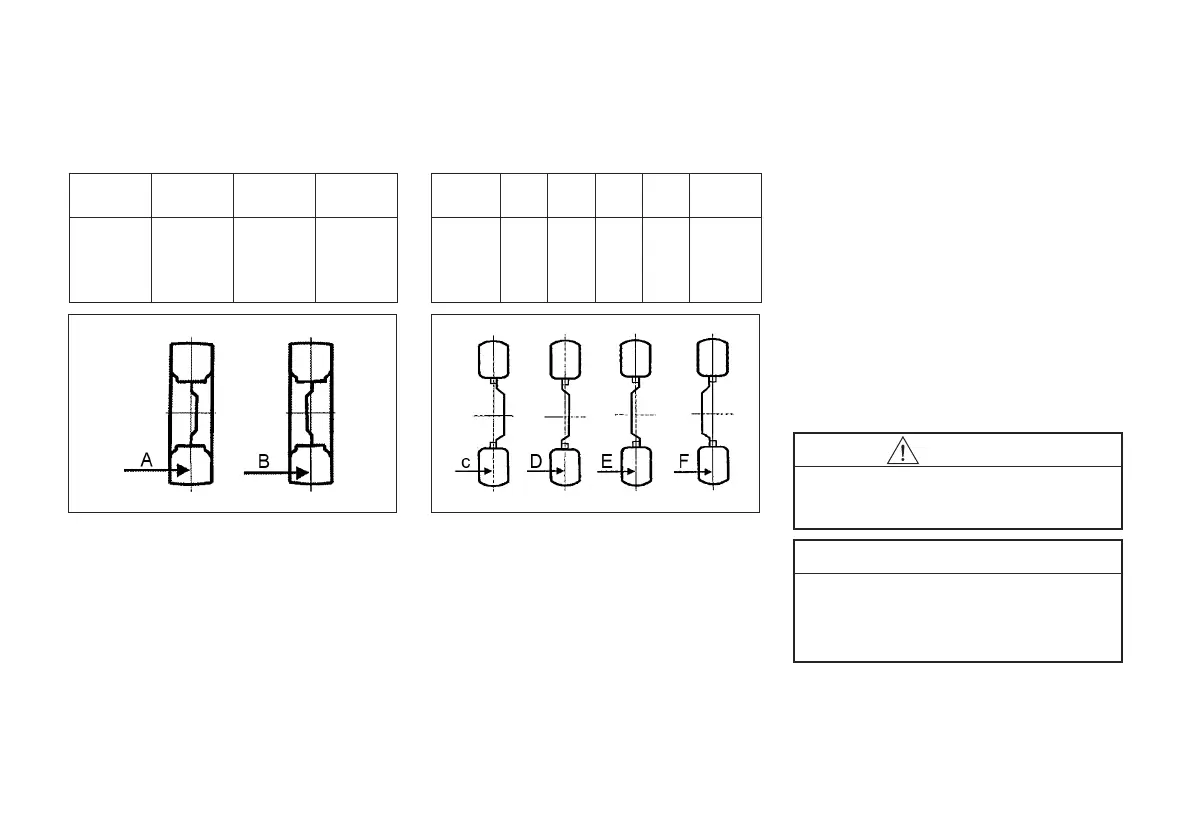

FRONT WHEEL ASSEMBLY
Front
wheel
A B Remarks
4035CH 1,205 1,495 7-16 6PR
REAR WHEEL ASSEMBLY
Front
wheel
C D E F
Remarks
4035CH 1,280 1,174 1,130 1,024
11.2-24
8PR
CAUTION
•
Never operate the tractor with
a loose rim, wheel, hub or axle.
•
When operating a new tractor
or when removing the wheel,
follow the procedures above.
