BAD BOY TRACTOR
DIFFERENTIAL LOCK PEDAL FLOW CONTROL VALVE
The di󰀨erential lock pedal is to keep
the wheel rotation on both sides the
same when one of the rear wheels is
idling or spinning without traction. Be
sure to use the steering wheel only
while the wheels are set in a straight
ahead position. Otherwise, the di󰀨er-
ential system may be damaged.

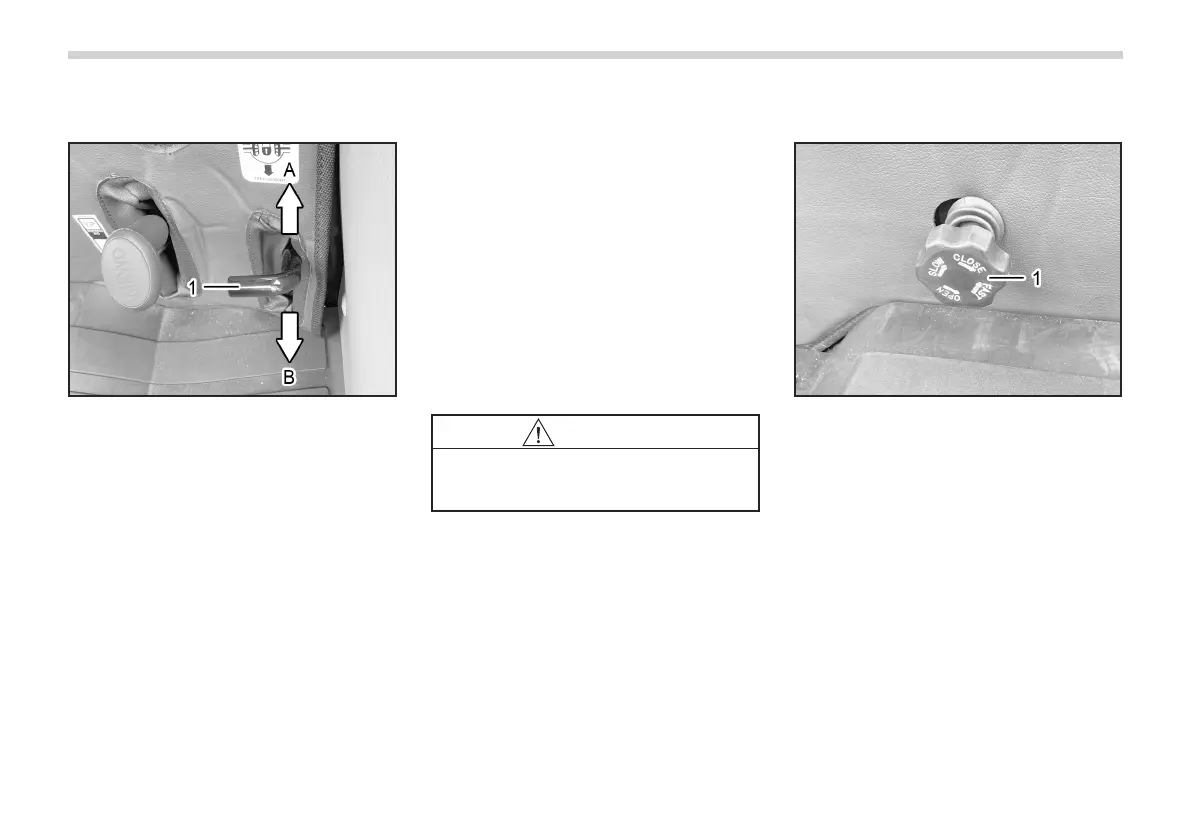

(1) Di󰀨erential Lock Pedal
(A) Release (B) Engage
WARNING

Be sure to release the di󰀨eren-
tial lock before making a turn.
(1) Flow Control Valve
It is used to regulate the lowering
speed of the implement (slow return
function). Also, if you wind the valve
fully to the right, the hydraulic pres-
sure to the device raising the imple-
ment is stopped.
