OPERATION DESCRIPTION
4
CONTROLS 1(PEDALS)
BRAKE PEDALS

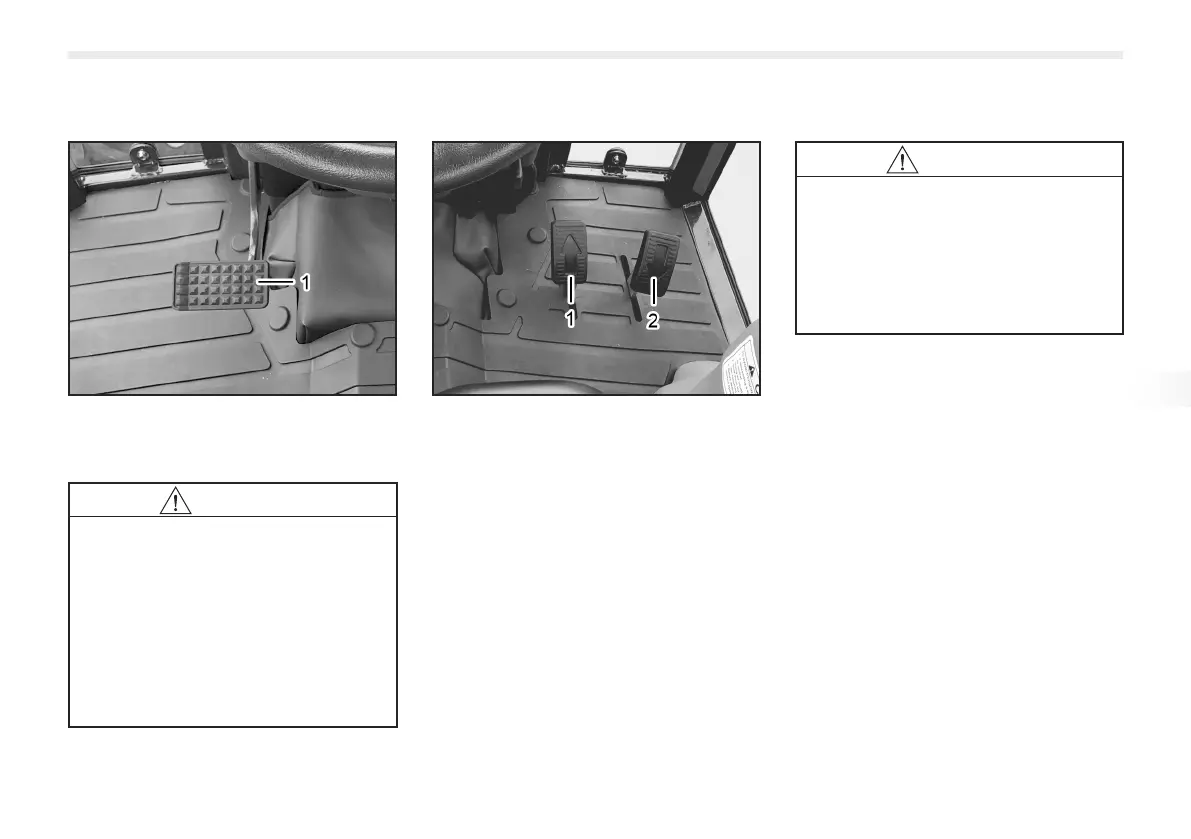

(1) Brake Pedal
WARNING

Make sure to interlock the left
and right brake pedals with
the link bracket while driving
for travel.
If this instruction is ignored,
there is a risk of an accident
such as rollover due to unin-
tended movement.
F-R HST PEDAL
It is used for shifting between “forward”
and “reverse” drive. And stay pedals
at neutral machine should be stopped.
(1) HST Pedal Forward
(2) HST Pedal Reverse
WARNING

For safety, do not shift quickly
from “forward” to “reverse”or
from “reverse” to “forward”.
Engage Brake pedals when
stopping the machine for ma-
chine to stop quickly.
