Bad Boy 4035H 2021 - How to Fold Rops; Operation

5
-
13
OPERATION
5

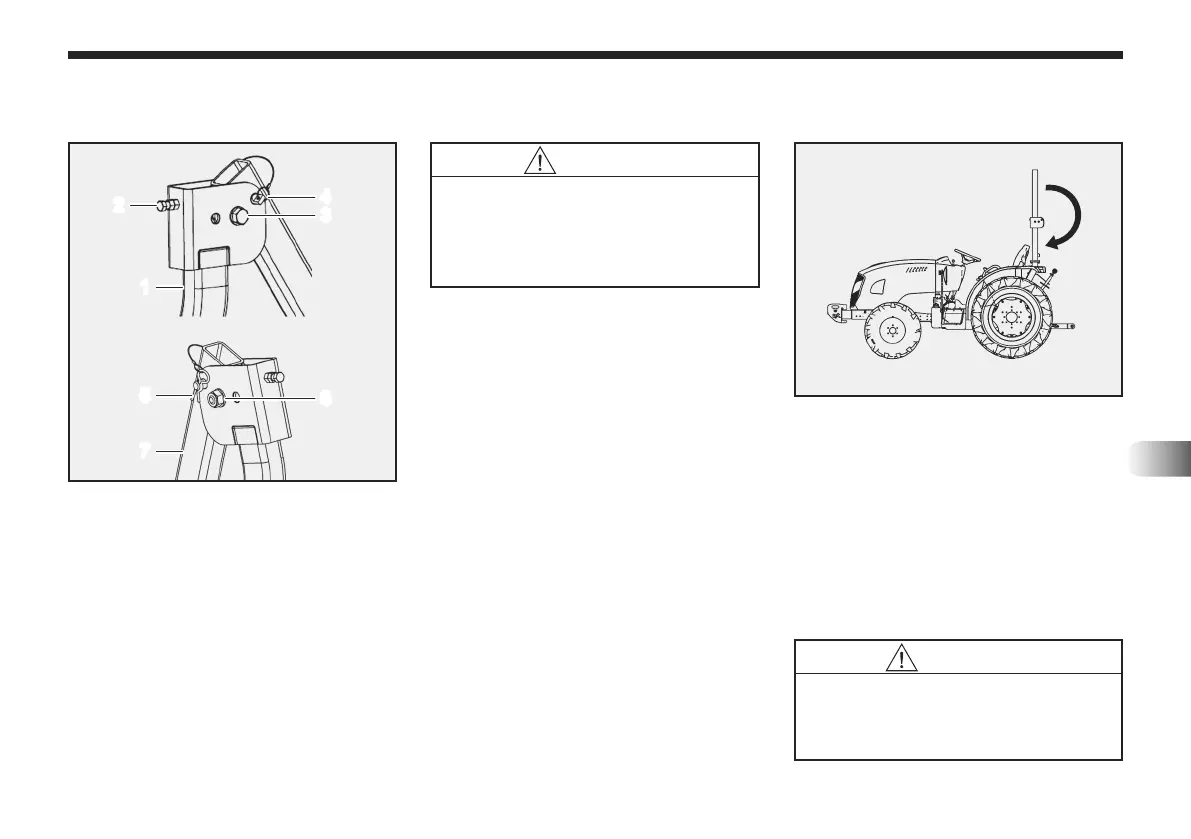

3. Fit the pins (5) through the holes
of the frames (1 & 7) and fit the
snap pins (4) into the holes of the
pins (5) to  x the frames.
4. Tighten the bolt (3) and nut (6)
 rmly.
•
Do not modify or disassemble
the safety frame without ap-
proval.
WARNING
HOW TO FOLD ROPS
1. Loosen the bolt (3) and nut (6) of
the frame. (Do not unscrew them
completely.)
2. Unfold the upper frame backward
after removing the snap pins (4)
and pins (5) on both sides.
CAUTION
•
Be careful as the frame can
fold by its weight, resulting
in injuries, including head,
shoulder and hand injuries.
1
7
5
2
3
4
6
1
7
5
2
3
4
6
