OPERATION
5
9. The PTO shaft should not be inter-
fered by any surrounding parts.
CAUTION
•
If someone is entangled in the
rotating part, it can cause a fa-
tal injury. Always wear protec-
tive gear and install the safety
shields and guards to the drive
line. Don’t wear loose clothing.
•
Do not remove the installed
protective cover of the PTO
drive shaft without permission.
If working with this protective
cover removed, it can cause
a severe injury. Refer to the
warning decal on the cover.
1
2
3
5
4
1
2
3
5
4
(1) R2 (2) R1
(3) P2 (4) P1
(5) T
R2R2
R2
P1
P1
P2
R1
P2
R1
C
C
R2
P1
P1
P2
R1
P2
R1
C
C
Before connecting
loader hydraulic hose
(LOADER OUT)
(LOADER IN)

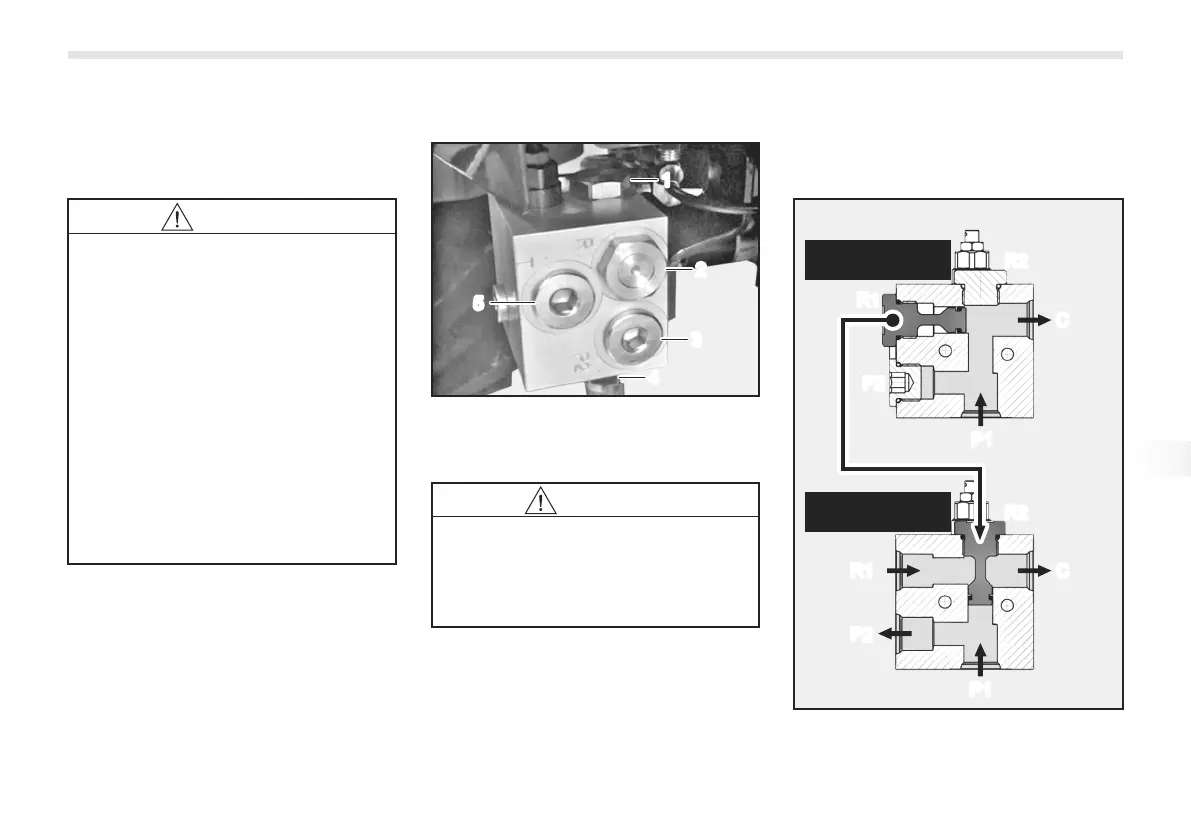

HOW TO CONNECT HYDRAULIC HOSE FOR LOADER ATTACHMENT
CAUTION
•
Before installing a loader, make
sure to stop the engine in ad-
vance and connect its hydraulic
hose.
HYDRAULIC CIRCUIT OF FRONT
OUTLET VALVE
After connecting loader
hydraulic hose
When installing a loader, the plug of
the port R1 should be fit to the port
CHANGE LOCATION
