WHEEL AND AXLE
If the wheel or axle is loosened,
tighten to the specied torque.
1. Drive the tractor about 100 m and
tighten it to the specied torque.
2. Inspect the wheel and axle every
10 hours of engine run or every 3
hours of working.
3. Inspect all wheels and axles fre-
quently and securely tighten if
necessary.

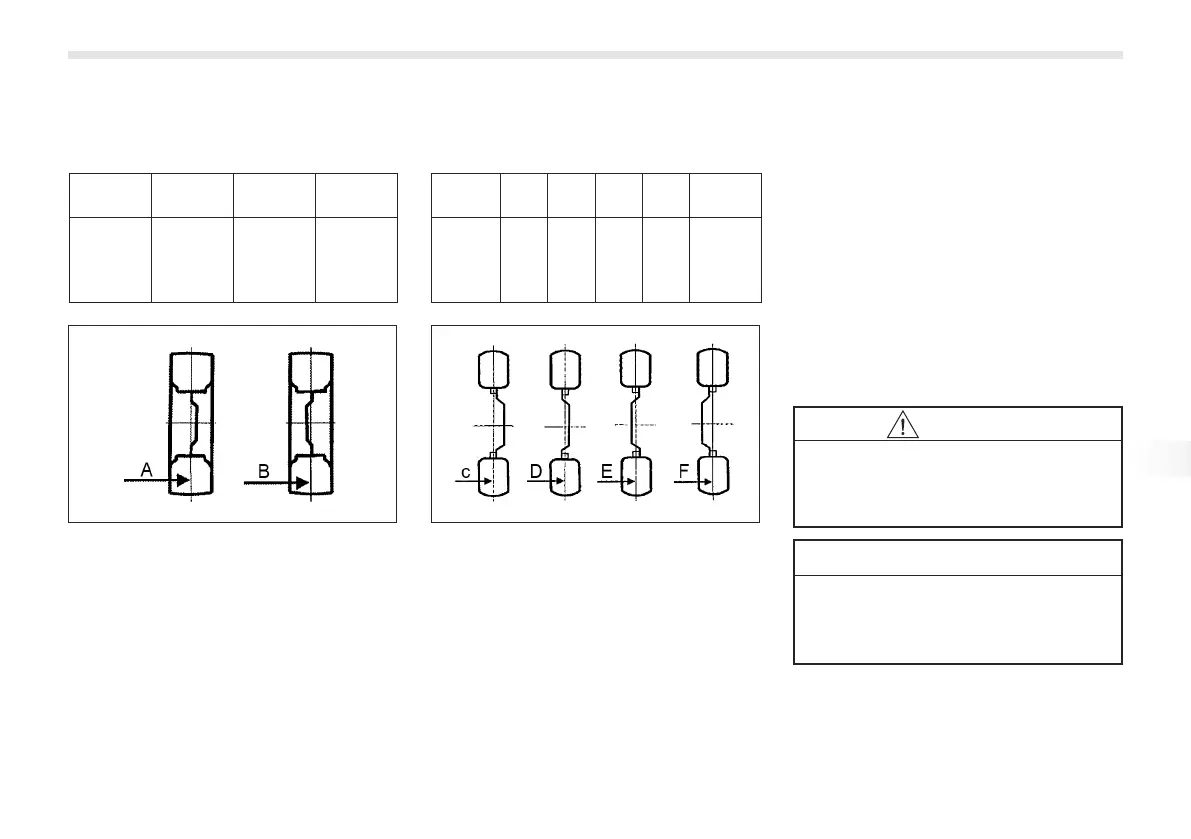

FRONT WHEEL ASSEMBLY
Front
wheel
A B Remarks
4025H
4035H
1,238 1,528 8-16 4PR
REAR WHEEL ASSEMBLY
Front
wheel
C D E F
Remarks
4025H
4035H
1,280 1,174 1,130 1,024
12.4-24
6PR
CAUTION
•
Never operate the tractor with
a loose rim, wheel, hub or
axle.
•
When operating a new tractor
or when removing the wheel,
follow the procedures above.
